High Quality Casting, Fast and Stable

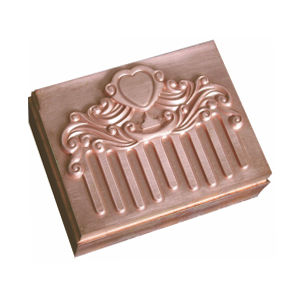

CM series adopts high quality castings and beam column gantry frame design to ensure overall machine is suitable for rapid and stable operation. With 18000/24000/30000/40000 rpm motorized spindle to meat all kinds of high specular engraving and milling. Can widely used in one-time precision mold rough finishing, mold copper electrode, aluminum parts machining, shoe mold manufacturing, mask machine mold, fixture machining, watch industry.


CNC graphite machine

1. Adopt full enclosed cover, with industrial vacuuming device to dry cut for graphite. With water structure to wet cutting.

2. Linear way sliding block adopt dust prevention type to avoid graphite enter moving parts for accelerated wear.

3. Special design of graphite collection water tank is according to dry and wet cutting, convenient for dust collection and clean.


Features

1. X,Y,Z axis are linear way, standard feed speed is 10m/min. CM650B also can be specially matched to 24m/min.

2. Through the finite element analysis, adopt high quality Resin sand casting, accuracy stability and high rigidity, keep processing stability under high speed.

3. Spindle box adopt flange type structure, improve spindle cutting rigidity and enhanced spindle anti-collision performance.

4. The key components such as couplings, bearings, and ball screws are from Germany. Japan and Taiwan brand precision high quality spare parts, ensure high stability quality of machine.

5. Standard accessories: ER25/ER32/24000 rpm motorized spindle, can with BT30 spindle and 12tools umbrella type ATC. Shield top cover and ventilation system can be configured to achieve full protection.

6. Standard accessories: Taiwan LNC and Japan Yaskawa three axis servo motor and drive. Can optional Syntec system, Mitsubishi system, Fanuc system.


Specification

Standard accessories

1. LNC/ SYNTEC controller system
2. Fully enclosed cover
3. Pneumatic system
4. Anto lubrication system
5. Work piece coolant system
6. Three axis inner encoder feedback system
7. Heat exchange
8. Spindle oil coolant
9. Hand wheel
10. Network transmission Interface
11. Alarming light
12. Working light
13. Guide way cover
14. Technical documents
15. Operation manual


Optional accessories

1. ATC
2. Rotary table
3. Tool setters

Application Industry

   Shenzhen Joint Technology CO.,LTD., was established in 1995.Our headquarter is located in PingHu

town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development,

production, sale, and service of mold processing machine tools and specialized machine tool equipments for

machine work of excellent quality for more than a decade.


   Currently ,there are eight series of products—high speed turret milling machine, precision surface grinding

machine, EDM machine tool, CNC milling machine, NC milling machine ,Gantry type machine center ,CNC

engraving machine ,and CNC lathe machine


   Our own brand “JOINT “ Has been the top quality machine’s signal in domestic sales, JOINT also has been

recognized as “ GUANGDONG Famous Brand “ in 2008, and milling machine was recognized as “ TOP 10

Famous Brand of Milling machine “ in China, Our product got CE certificate in 2005. Our product had been

exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation

there, Welcome your visit !

Core Advantage:

1.Specification of detailed process and operation mechanism, as well as high standards of production, testing

of hardware and software -- guarantee stable quality of product supply and service support

2.More than 20 years of in-depth research and technical precipitation, products and technology to promote

rapid innovation and progress

3.ERP,CRM and other comprehensive information management system, to form the enterprise efficient

operation and continuous improvement system.

4.Integrity, collaboration, innovation, win-win spirit, established a strong, stable supply chain, and long-term

win-win development of the broad customer base.

Our Honor and Qualifications

1. National High-tech enterprise

2. Shenzhen famous brand "JOINT"

3. Member of China Quality Association

4. Member of China Machine Tools Association

5. Vice-Chairmen of Shenzhen machinery Association

6. Awarded China metal cutting industry top 50 for 5years in a row

7. Awarded Guangdong province Manufacturing industry top 500 in 2014

8. CE certification on Milling Machine ,Grinding machine and machine center

9. Machine Center have passed the inspection and authentication of the "National Machine Tool Quality

   sepervision and inspection Center

10. More than 50 patents On Invention ,Utility model patent and software copyright etc .
