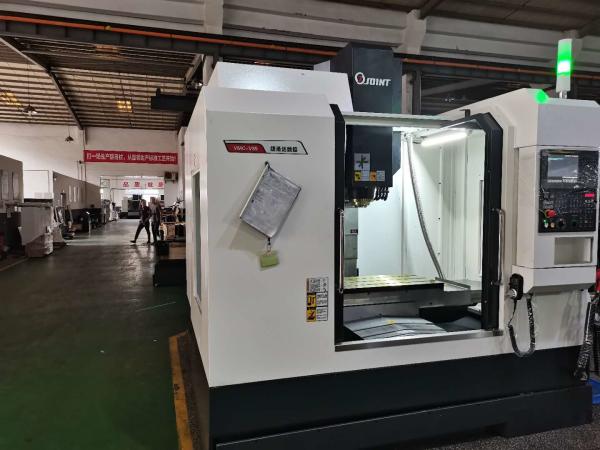

    7.5Kw 4 Axis Rotary 18m/Min Feed CNC Machining Center

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : VMC857L
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : TT/LC/DA/DP
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    7.5Kw 4 Axis Rotary 18m/Min Feed CNC Machining Center


    7.5 Kw Power Full Enclosed CNC Machining Center 4 Axis Rotary


    Product advantage:


    1. The machine tool external protection of machine tool uses the full protection structure. It is convenient operation, safe and reliable, and nice shape.


    2. Guide rail and ball screw of X, Y, Z direction are all use protection device to ensure that the screw and the guide is clean and accurate.


    3. The spindle unit is high speed, high accuracy, high rigidity, with large load carrying capacity of axial and radial.


    4. The feed of X, Y, Z direction adopts the inner loop preloading large-lead ball screw with double nut so it is of high feed speed.


    5. Z axis matched with counterweight to keep balance, which ensure the spindle box running smoothly and stable.


    6. This model is suitable for complex, multi-process, high precision requirements, the need for a variety of types of common machine tools and various tools, tooling, after several clamping and adjustment to complete the processing of parts with appropriate batch. Main processing box type, complex curved surface, special-shaped parts, plates, covers, plate parts. Widely used in electronics, machinery, automotive, aircraft, aerospace, shipping, national defense and other fields of products.


    Specification Of Vertical machine center VMC857L


    ModelUnitVMC-857L
    TravelX axismm800
    Y axismm550
    Z axismm700
    Distance between spindle and tablemm110-810
    Working tableTable sizemm1000*520
    Max. Load of tableKg500
    T slotPcs-mm-mm5-18-90
    Positioning accuracyX/Y/Z axismm0.006/0.006/0.008
    Repeated positioning accuracyX/Y/Z axismm0.005/0.005/0.007
    SpindleSpindle rotation speedRpm8000
    Spindle taperBT40 45°
    DiametermmΦ150
    Rapid feedX/Y/Z axism/min24/24/18
    Cutting feedX/Y/Z axism/min10
    Tool magazineUmbrella typeSizeTools20
    Too changing time (T-T)s6
    Max. diameter/ length/weight of toolmm100/150/8
    Max tool diameter (no tool adjacent)mm180
    Arm typeSizeTools24
    Tool changing time (T-T)s2.8
    Max. diameter/ /length/weight of toolmm80/200/8
    Max tool diameter (no tool adjacent)mm150
    Total capacity of electricKVA15
    Weight of machine

    Kg


    5400

    Dimension

    mm2750*2380*2600

    Standard Accessories:


    Fanuc/Mitsubishi Controller system


    Full enclosed cover


    Spindle built-in encoder position system


    Three axis inner encoder feedback system


    Auto lubrication system


    Pneumatic system


    RS 232 Interface


    Operation unit


    Working light


    Tool and tool box


    Optional accessories:


    Siemens controller or other controller system


    Spindle oil coolant


    Umbrella type tool magazine


    Arm type tool magazine


    Screw type auto conveyor


    Chain type tool magazine


    4 Axis rotary table


    Ring spray spindle
