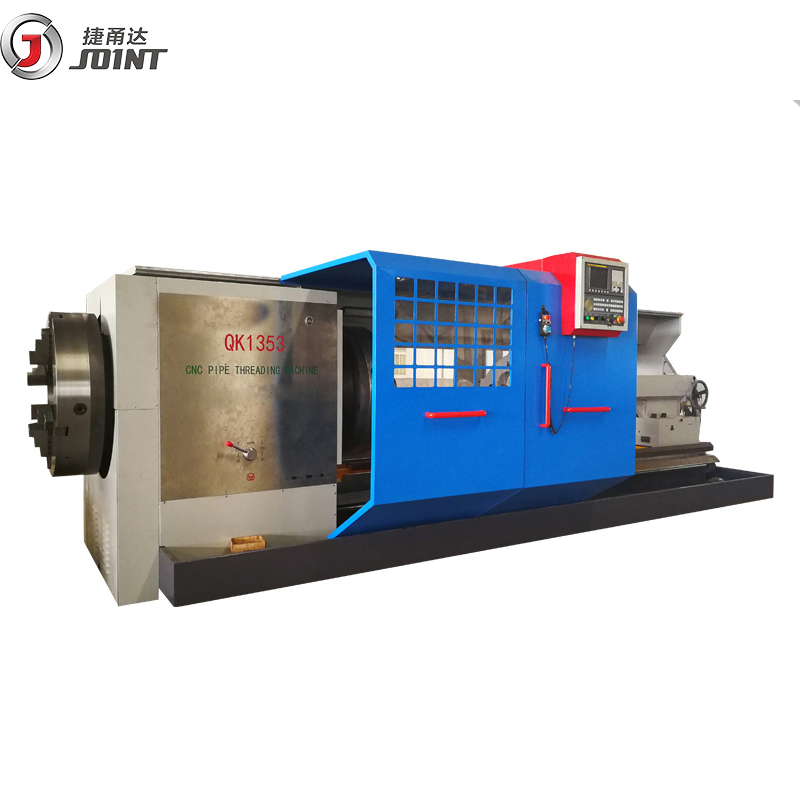

    CNC Precision Heavy Duty Pipe Threading Lathe Machine Flat Bed Turning Centre Lathe

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : QK-1353
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    CNC Precision Heavy Duty Pipe Threading Lathe Machine Flat Bed Turning Centre Lathe

    CNC PrecisionTorno Heavy Duty Pipe Threading Lathe Machine Flat Bed CNC Turning Centre Lathewith GSK/FANUC/SIEMENS

    Pipe Thread Lathe machine widely used in petroleum, industry of drill pipe, joints, casting and other parts processing.
    It also can be used in chemical industry, coal, geological, etc all kinds of pipe thread processing.


    Item
    Unit
    QK1353
    Max dia. swing over bed
    mm
    1000
    Max dia. swing over cross slide
    mm
    610
    Max length of workpiece
    mm
    1500
    Width of bed
    mm
    755
    Spindle bore
    mm
    360
    Power of spindle motor
    Kw
    15
    Mode of spindle speed

    Two gears Smooth adjustment
    Range of spindle speed
    r/min
    (L): 25-120 (H): 100-350
    X/Z axis travel
    mm
    X:450 / Z:1250
    X/Z axis rapid traverse
    mm/min
    4000
    X axis motor speed
    r/min
    1500
    X axis motor torque
    N.m
    18
    X axis motor power
    Kw
    2.8
    Z axis motor speed
    r/min
    1500
    Z axis motor torque
    N.m
    15
    Z axis motor power
    Kw
    3.8
    Tailstock quill diameter
    mm
    100
    Tailstock quill travel
    mm
    250
    Tailstock quill taper

    MT5
    Turret model

    HAK-21240
    Tool post type

    Vertical 4- station
    Turret dimension
    mm
    300x300
    Turret indexing time
    s
    2.6
    Chuck

    K11-630 four jaw chuck
    Positioning accuracy
    mm
    0.02
    Repositioning accuracy
    mm
    0.01
    Machine size
    mm
    5000x2100x2100
    Machine weight
    Kg
    12000



    Standard Accessories:
    1) CNC system: GSK980TC3.
    2) Front and rear three-jaw manual chuck.
    3) Vertical four-station electric turret.
    4) With tailstock.
    5) With two gears.
    6) Automatic lubrication system.
    7) Turning cooling system.
    8) The rear bracket.
