    Oil CNC Pipe Threading Lathe Machine Metal Threading CNC Cutting Pipe Threading Lathe

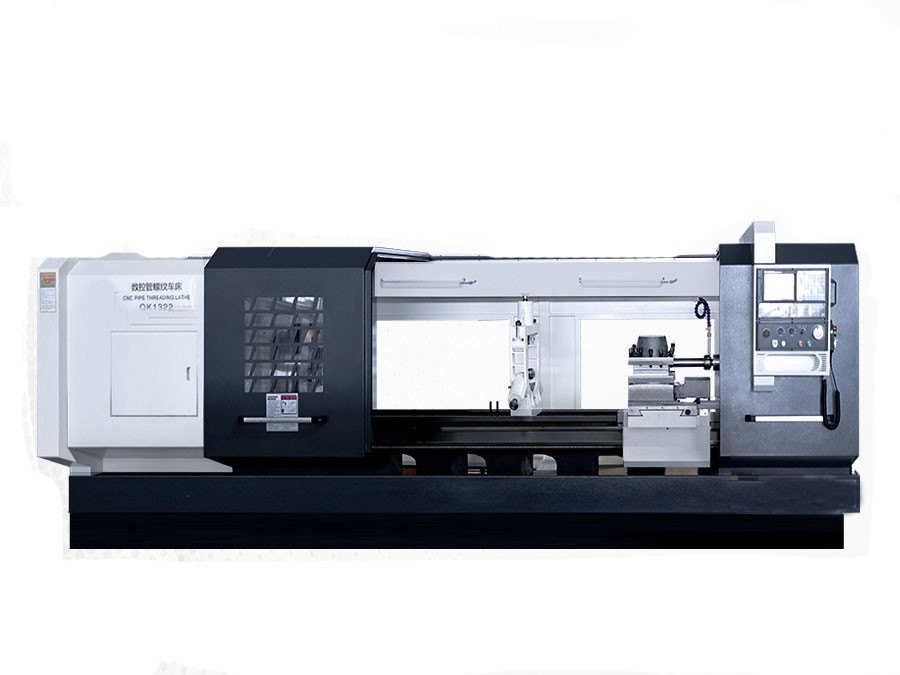

    Oil CNC Pipe Threading Lathe Machine Metal Threading CNC Cutting Lathe Qk1322

    Pipe Thread Lathe machine widely used in petroleum, industry of drill pipe, joints, casting and other parts processing.
    It also can be used in chemical industry, coal, geological, etc all kinds of pipe thread processing.

    Item
    Unit
    QK1322
    Max dia. swing over bed
    mm
    670
    Max dia. swing over cross slide
    mm
    370
    Max length of workpiece
    mm
    1500
    Width of bed
    mm
    550
    Spindle bore
    mm
    200
    Power of spindle motor
    Kw
    11
    Mode of spindle speed

    Two gears Smooth adjustment
    Range of spindle speed
    r/min
    (L): 25-120 (H): 100-350
    X/Z axis travel
    mm
    X:450 / Z:1250
    X/Z axis rapid traverse
    mm/min
    4000
    X axis motor speed
    r/min
    1500
    X axis motor torque
    N.m
    10
    X axis motor power
    Kw
    1.5
    Z axis motor speed
    r/min
    1500
    Z axis motor torque
    N.m
    15
    Z axis motor power
    Kw
    2.3
    Tailstock quill diameter
    mm
    100
    Tailstock quill travel
    mm
    250
    Tailstock quill taper

    MT5
    Turret model

    HAK-21240
    Tool post type

    Vertical 4- station
    Turret dimension
    mm
    240x240
    Turret indexing time
    s
    2.6
    Chuck

    K11-630 four jaw chuck
    Positioning accuracy
    mm
    0.02
    Repositioning accuracy
    mm
    0.01
    Machine size
    mm
    3700x1755x1800
    Machine weight
    Kg
    5200



    Standard Accessories:
    1) CNC system: GSK980TC3.
    2) Front and rear three-jaw manual chuck.
    3) Vertical four-station electric turret.
    4) With tailstock.
    5) With two gears.
    6) Automatic lubrication system.
    7) Turning cooling system.
    8) The rear bracket.
