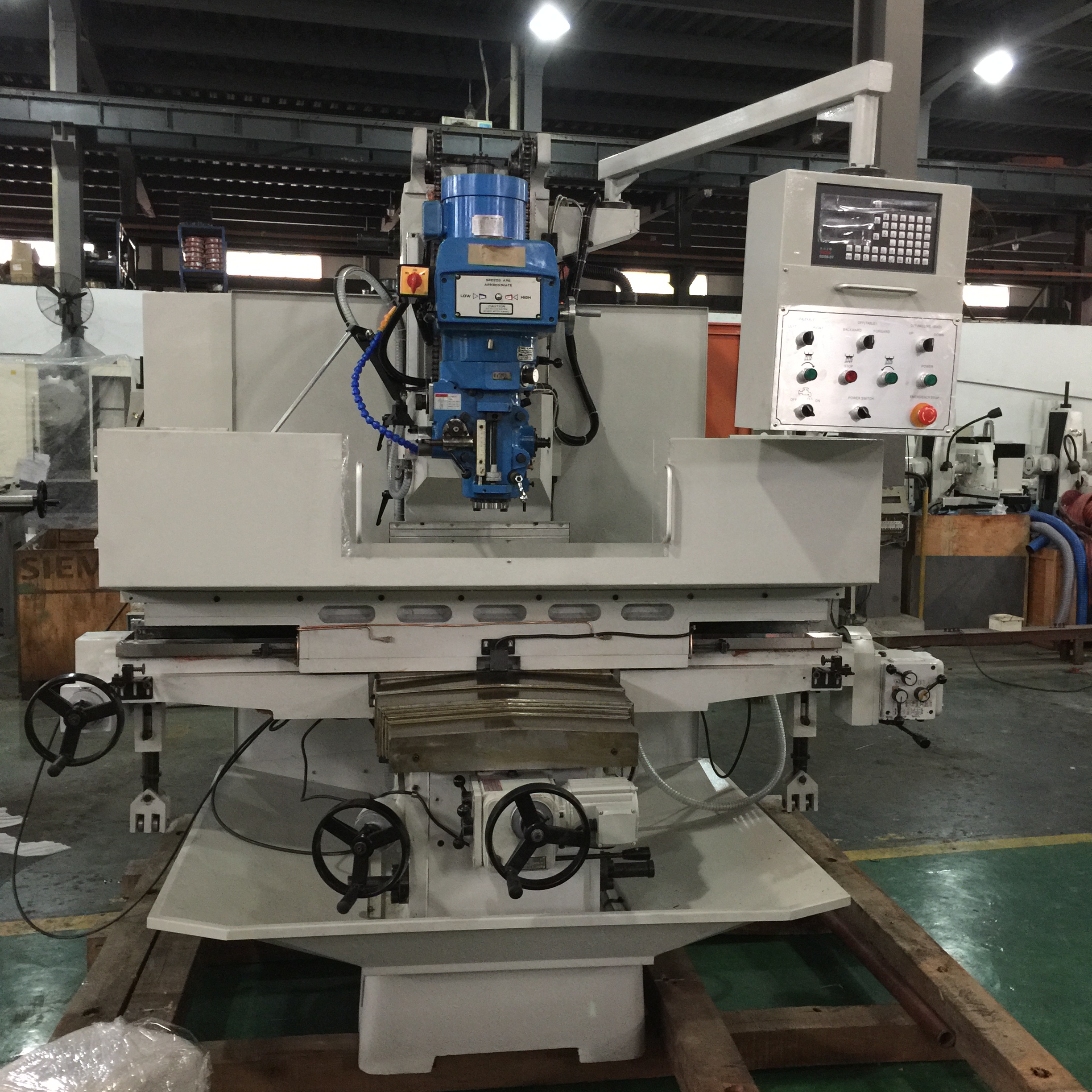

    High Precision Component Milling And Boring Machine Bed Type B600L

    Introduction:


    Compared with the normal turret milling machine, bed type milling machine is with bed structure, higher rigidity, and larger bearing capacity


    B600L three axes adopt precision ball screw, with run fast and high accuracy in positioning.


    Its milling head is Taiwan original precision milling head, NSK ball screw, P4 precision spindle bearing, 0.002 spindle tolerance.


    Bed sructure, Meehanite cast iron and high rigid structure design.


    Specification:


    ModelB600L
    Table sizemm1570*405
    TravelX axismm1500
    Y axismm350
    Z axismm580
    Travel of spindle quillmm150
    Maximum distance from spindle nose to tablemm760
    SpindleRotation speed
    (Step speed milling head)
    50HZrpm58-3000
    60HZrpm70-3600
    Rotation speed
    (Variable speed milling head)
    50HZrpm58-3250
    60HZrpm70-3900
    Rotation speed
    (Inverter speed milling head)
    50HZrpm0-4200
    60HZrpm0-4200
    TaperNT40
    Rated powerHP5HP
    Tilt angleForward and Backward
    Left and Right±90°
    Dimensionmm2000*3050*2150
    Net weightkg2900

    Standard accessories:

    1. Taiwan original step speed milling head
    2. X/Y axis mechanical feed
    3. Z axis elevator motor
    4. Clamping kit
    5. NT40 milling chuck
    6. Working light
    7. Draw bar
    8. Oil pump
    9. Manual operation
    10. Guide way cover
    11. Tool and tool box


    Optional accessories:




    Company Profile:

    Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.
    There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine
    Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !
