    CNC 700C 20000rpm Metal Drilling Tapping Machine Mitsubishi Control

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : VTC-700C
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : T/T, L/C
    Supply Ability : 1000 SETS/YEAR
    • Product Details
    • Company Profile

    CNC 700C 20000rpm Metal Drilling Tapping Machine Mitsubishi Control

    Product Charactristics:

    1. Modularization of various configurations, through which satisfy customers' different pricessing requirements and personalized selection: 10000-20000rpm, 16T or 21T tool magazine.

    2. This series of drilling and tapping machine is designed mainly for porous precision small parts, with advantages of high processing speed, changing tool swiftly.

    3. Our company accumulates and continuously optimizes the customer application data, can provide customers with application technical support, effcient processing performance is more outstanding.


    Industrial Applicant:

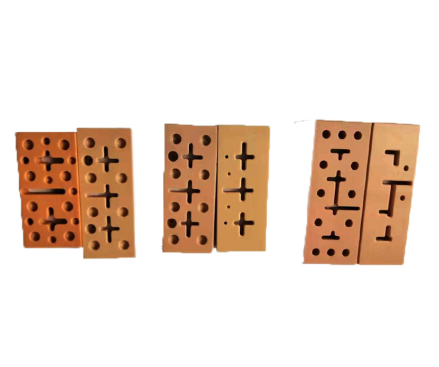

    Ceramic dielectric filter Precision aluminum parts procession


    Product specifications:


    ItemUnitParameters
    X axis travelmm800
    Y axis travelmm500
    Z axis travelmm330
    Distance between spindle surface and working tablemm150-480
    Distance between spindle center and columnmm578
    Working table sizemm900*420
    Max load of working tableKG300
    T slot number (No*size*pitch)mm3-18*125
    Tool holder specificationBT30
    Installation diametermm100
    Rivet specificationBT30
    Rotation speed ranger/min40-20000
    Output ratingN.M14.1/11.8
    Spindle motor rateKW3.7/3.7
    X/Y axis motor output torqueN.M9/8
    Z axis motor output torqueN.M22.5/12
    X/Y axis motor rateKW1.5/2.5
    Z axis motor rateKW3/2.7
    Cutting feedm/min15
    X,Y,Z axis rapid movement speedm/min48/48/48
    Positioning accuracymm0.005/0.005/0.005
    Rapid positioning accuracymm0.004/0.004/0.004
    Dimensionmm2330*1930*2250
    Total electrical capacity of machineKVA15
    The host weightKG3500


    Standard Accessories:

    1. Fanuc/ Mitsubishi control system
    2. Fully closed cover
    3. Three axes Rexroth linear guideway
    4. SPEEDCN spindle (BT30/100 diameter/20000rpm)
    5. 21T servo tool magazine
    6. Spindle oil cooler
    7. Heat exchange
    8. BT30 tool holder 1pic; 6'' vise 1pic; clamping kit 1 set
    9. Penumatic system
    10. Auto lubrication system
    11. Work piece cooling system
    12. Clean air gun/ water gun

    Optional Accessories:
    1. Chain type auto chip conveyor
    2. 4 axis


    Product details:
