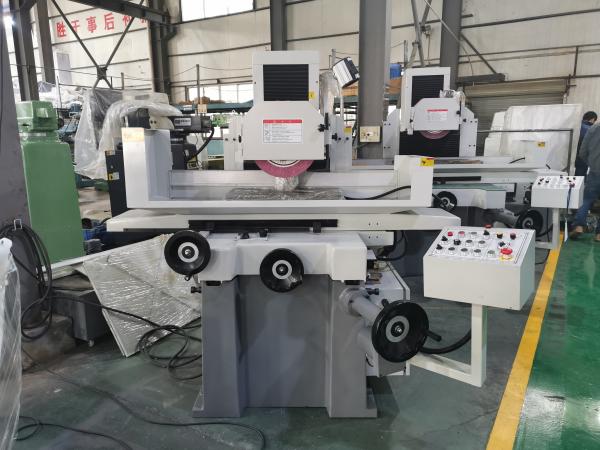

    Cross Ward Automatic Surface Grinding Machine 2800rpm Ball Slide Way

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : 250AH
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : T/T, L/C
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEOGIATION
    • Product Details
    • Company Profile

    Cross Ward Automatic Surface Grinding Machine 2800rpm Ball Slide Way

    Product Characteristics:

    1. Machine reasonable structure, good rigidity, good looks, easy to operate.
    2. Table movement in longitudinal is the hydraulic transmission.
    3. Spindle motor no vibration and low noise.
    4. AH: Longgitudinal and cross ward automatic.


    Specification sheet:


    Model250M
    Table sizemm460*200
    X axis travelmm540
    Y axis travelmm240
    Table side waySlide way
    Max distance from spindle center to working tablemm460
    Crossward feed of hand wheel1 Rev4
    1 Div0.02
    Vertical feed of hand wheel1 Rev1/2*0.2(Microfeed)
    1 Div0.005/0.01*0.001(Microfeed)
    Rotation speedrpm2800
    Grinding wheel sizeΦ250×6-20×Φ31.75
    Spindle motorHP2*2
    Hydraulic motor1*4
    Crossward driven motor0.05*4*
    Vertical driven motor0.5*4*
    Coolant pump motor0.12*2
    Dust-clean motor0.75*2
    Dimension (L*W*H)mm1800*1400*1775
    Weightkg1250

    Standard Accessories:

    1. Magnet chuck
    2. Dust clean / Coolant system
    3. Grinding wheel
    4. Oil pump
    5. Working light
    6. Wheel balance arbor
    7. Wheel flange and extractor
    8. Wheel dressing diamond tip and holder
    9. Tool and toolbox
    10. Operation manual


    Optional Accessories:

    1. Two axis DRO
    2. Coolant system + Dust suction
    3. Balancing bracket
    4. Inverter
    5. Demagnizer
    6. Vice
    7. Punch dressor
    8. Universal dressor


    Overview:



    Quality Cross Ward Automatic Surface Grinding Machine 2800rpm Ball Slide Way for sale
