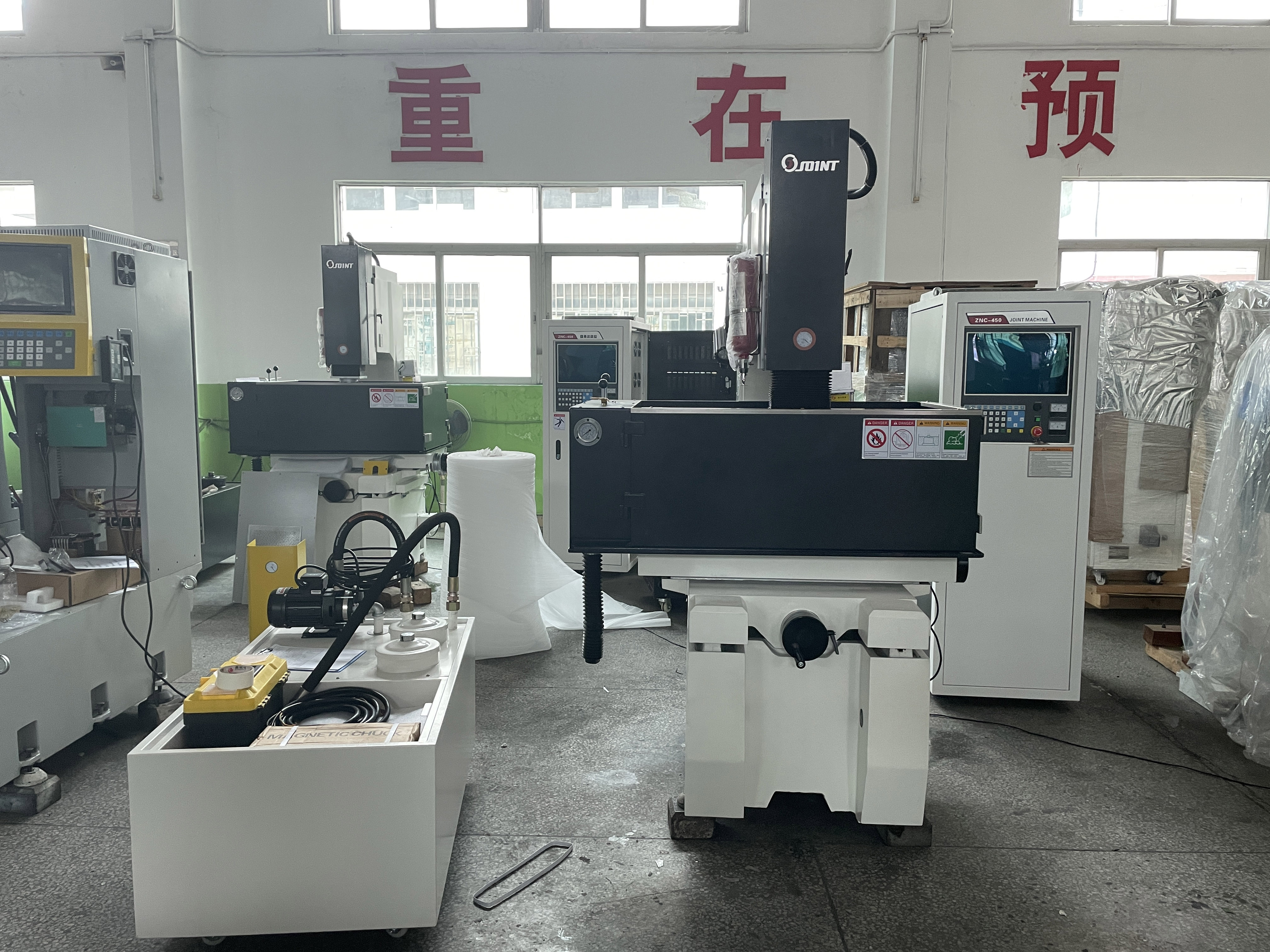

    Electrical Discharge ZNC EDM Machine 5KVA Znc-450 With 700*400 Table Max Loading 120kgs

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : ZNC-450
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : T/T, L/C
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    Electrical Discharge ZNC EDM Machine 5KVA Znc-450 With 700*400 Table Max Loading 120kgs

    Key Advantages:

    1. From small to super large size, the product lineup is strong, covering all kinds of mold processing needs.


    2. The system is stable and durable, high reliability, greatly improve the precision and quality of the mold.


    3. The key parts affecting the quality of the machine are imported from Taiwan and Japan.


    Electric Cabinet parameters sheet:

    ModelZNC machine
    Conytrol mode & Axis No.NC with close circuit/ Single Z axis control
    Min. setting valuemm0.005 (0.001)
    Max.setting valuemm9999.995 (9999.9999)
    Coordination system(INC), (ABS)
    Screen15" TFT
    Control systemIndustrial PC
    Moving velocity of controller0.005mm (Per Unit) ×1, ×2, ×10
    Procedure in store0-999groups
    Max.current for processingA50
    Input rated powerKVA5
    Max.cutting processing speedmm²/min360
    Consumption of the electrode head%<0.2
    Best surface roughμmRa0.25
    Dimensionmm620*860*1850
    Net weightkg210

    EDM machine parameters sheet:

    ModelZNC-450
    Size of oil containermm1100*710*450
    Table sizemm700*400
    TravelLongitude (X)mm450
    Crossward (Y)mm350
    Vertical (Z)mm200
    Electrode headmm280
    Max. distance between electrode head and working tablemm480
    Max. load of electrode headkg120
    Max. load of tablekg1200
    Dimension (L*W*H)mm2010*1260*2110
    Weightkg1500
    Filter containerCubeL400
    Weightkg150

    Standard accessories:

    1. Cteck Control system
    2. Fire extinguisher
    3. Magnet chuck
    4. Working light
    5. Oil pump
    6. Manual operation
    7. Tool and toolbox


    Overview:




    Quality Electrical Discharge ZNC EDM Machine 5KVA Znc-450 With 700*400 Table Max Loading 120kgs for sale
