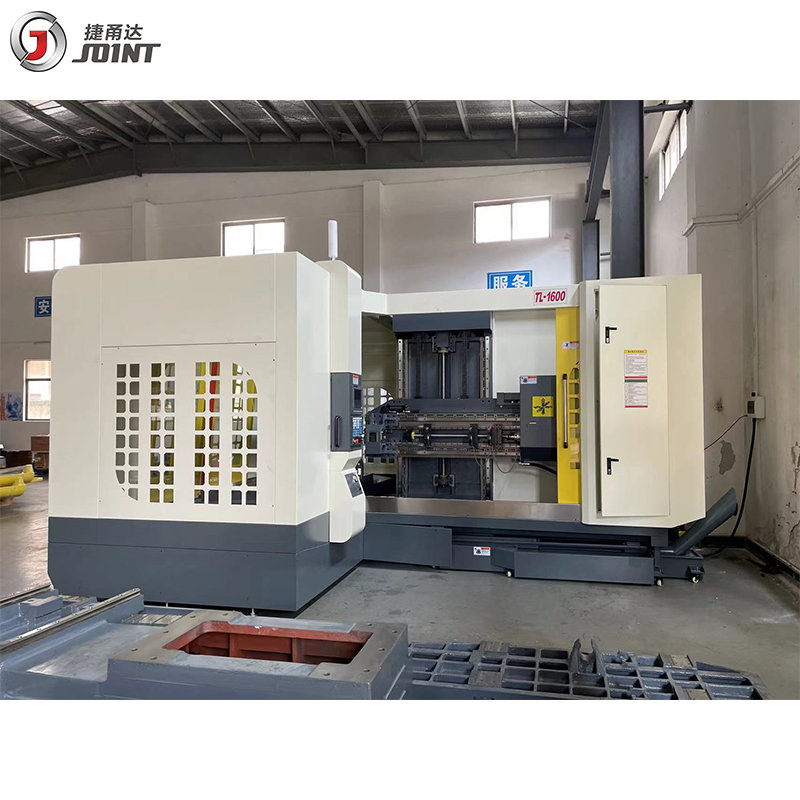

    Deep Hole Drilling Machine CNC Gun Drilling Machine Horizontal Deep Hole Drill

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : TL-1600
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : L/C, T/T
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    Deep Hole Drilling Machine CNC Gun Drilling Machine Horizontal Deep Hole Drill


    Drilling Machines Deep Holes Cnc Machine Cnc Hole Drilling Machine High Speed

    Intergrated base structure, good stability, simple operation, reasonable layout, mold and covenient aeesmbly and disassembly, wide application.
    Suitable for most mold processing.

    Specification:


    ModelTL-1600
    Number of drill spindleSingle axis
    Innder diameter of drilling2.5-35mm
    Max depth of drilling1600mm
    Table size1800*110mm
    X axis travel1600mm
    Y axis travel1100mm
    Z axis travel1650mm
    Drilling cutting feed rate10-250mm
    Max spindle rotation speed7000rpm
    Spindle motorAC SERVO 7.5-11
    X aixs movement motorAC Servo 3.0
    Y axis movement motorAC Servo 2.0
    Z axis movement motorAC Servo 1.5
    Pressure of cutting pressure pump80 kgf/cm2
    Capacity of cutting oil tank6-60L /min
    Max load weight of table800L
    Machine weight13000kgs
    Machine power30kwkgs
    515700*4100*2800mm

    Application Industry:



    Overview:


    Package:


    1. Our wooden pallet (wooden case) would fumigate and can get fumigation certificate.


    2. Our package will be very careful for the parts, accessories for the machine.

    Every part, accessory that need to be removed from machine, we will use pearl cotton and transparent film to pack them.

    And make a note of them.
