    BT40 Spindle 15000RPM 7.5w CNC Milling Vertical Machine 3 Axis Roller

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : V855
    Certification : CE /ISO9001/SGS
    Price : Usd29000.00-Usd60000.00/set
    Payment Terms : D/A, D/P, T/T, L/C
    Supply Ability : 200 set per month
    Delivery Time : 30 works day
    • Product Details
    • Company Profile

    BT40 Spindle 15000RPM 7.5w CNC Milling Vertical Machine 3 Axis Roller


    3 axis Roller linear way CNC Milling Vertical Machine Center V855


    Feature :


    1, 3 axis adpot roller type linear guide way , rapid feed:48m/min


    2, The unique large-span structure of the base and column can withstand the inertia caused by high G with high overall dynamic response


    3, With direct connection short nose high speed spindle


    4, Optional :12000rpm/15000rpm direct connection spindle , Coolant through spindle ,ring spray spindle .


    Specification of CNC Vertical milling machine


    ModelUnitV855
    TravelX axismm800
    Y axismm550
    Z axismm550
    Distance between spindle and tablemm140-690
    Working tableTable sizemm550*1000
    Max. Load of tableKg500
    T slotPcs-mm-mm5-18-100
    Positioning accuracyX/Y/Z axismm0.006/0.006/0.006
    Repeated positioning accuracyX/Y/Z axismm0.007/0.007/0.007
    SpindleSpindle rotation speedRpm10000
    Spindle taperBT40
    DiametermmΦ150
    Rivet modelBT40 45°
    Rapid feedX/Y/Z axism/min48/48/48
    Cutting feedX/Y/Z axism/min15
    Tool magazineArm typeSizeTools24
    Tool changing time (T-T)sec3.5s
    Max. diameter/ /length/weight of toolmm80/200/8
    Max tool diameter (no tool adjacent)mm150
    Total capacity of electricKVA15
    Weight of machine

    Kg


    5300
    Dimensionmm

    2550*2850*2800

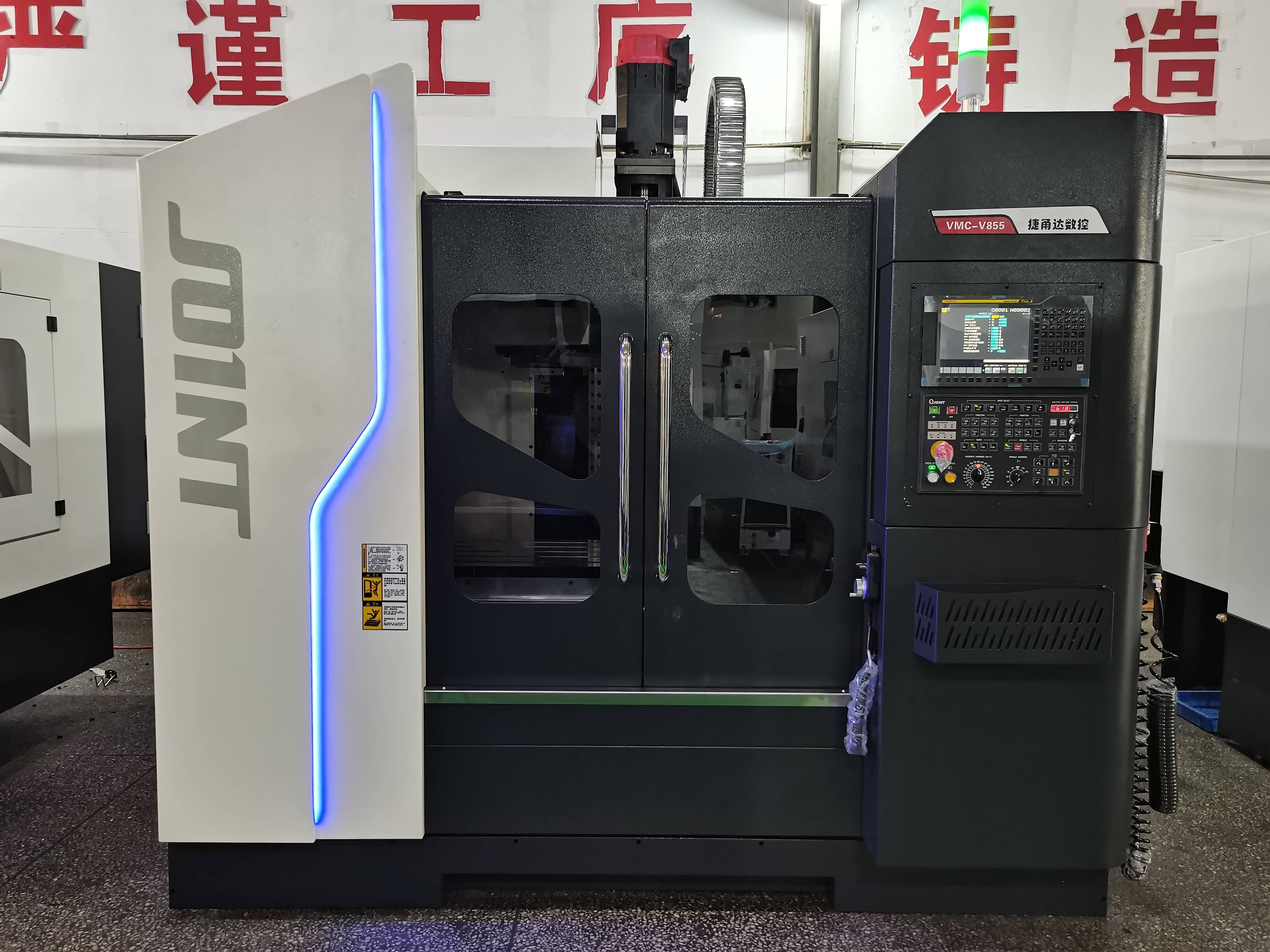

    Machine Picture



    Standard Accessories:


    Fanuc / Mitsubishi Controller system


    10000Rpm spindle


    Full enclosed cover


    Spindle encoder position system


    Three axis inner encoder feedback system


    Auto lubrication system


    Pneumatic system


    RS 232 Interface


    Operation unit


    RS232 Interface +working light


    Tool and tool box


    Optional accessories:


    Siemens controller or other controller system


    Spindle oil coolant


    Heat exchanger


    Umbrella type tool magazine


    Arm type tool magazine


    Screw type auto conveyor


    Chain type tool magazine


    4 Axis 5 axis rotary table


    Ring spray spindle


    CTS (Coolant through Spindle )


    12000Rpm/15000rpm/24000rpm


    Oil skimmer


    Machine Detail

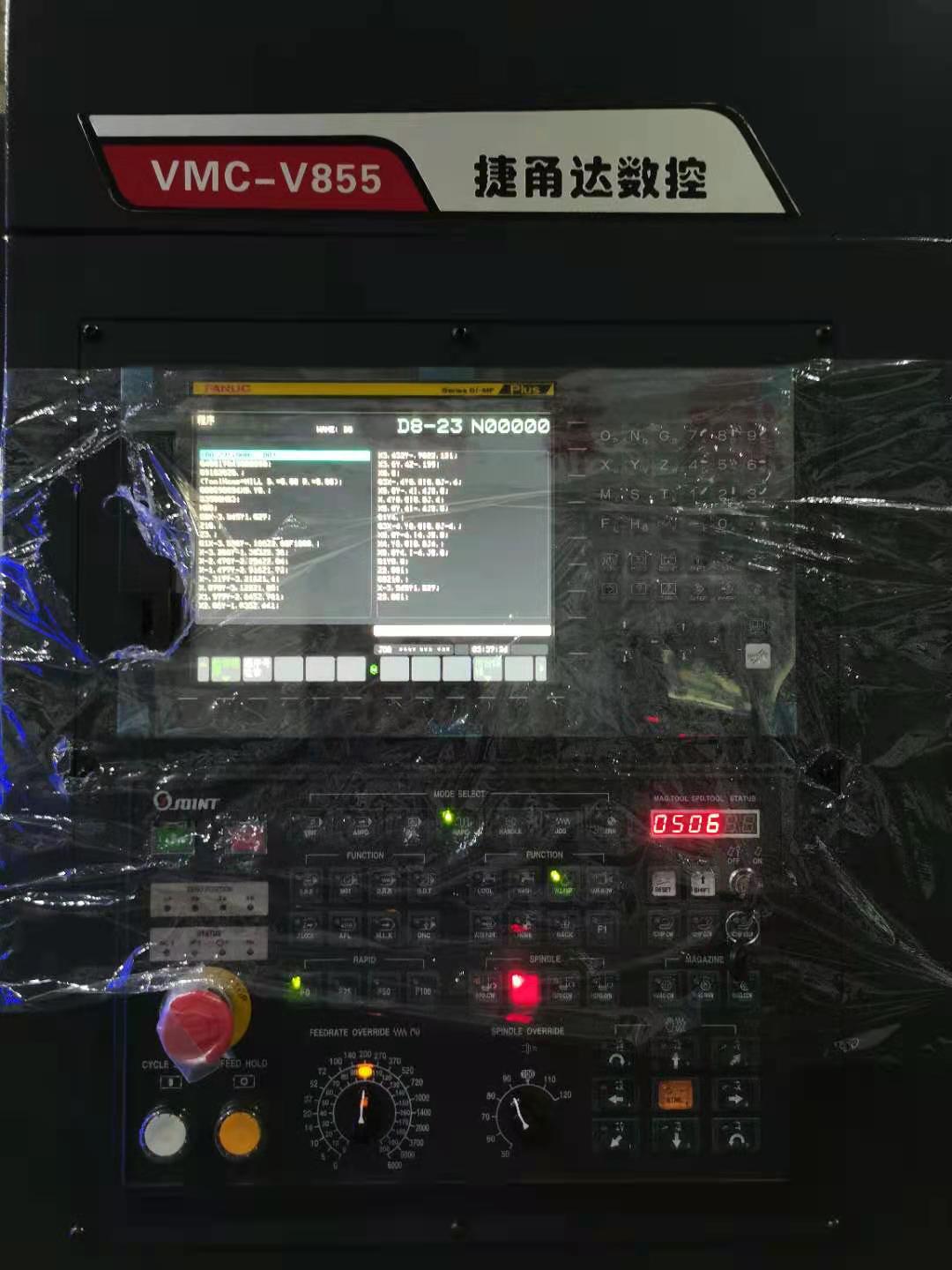

    Fanuc Controller

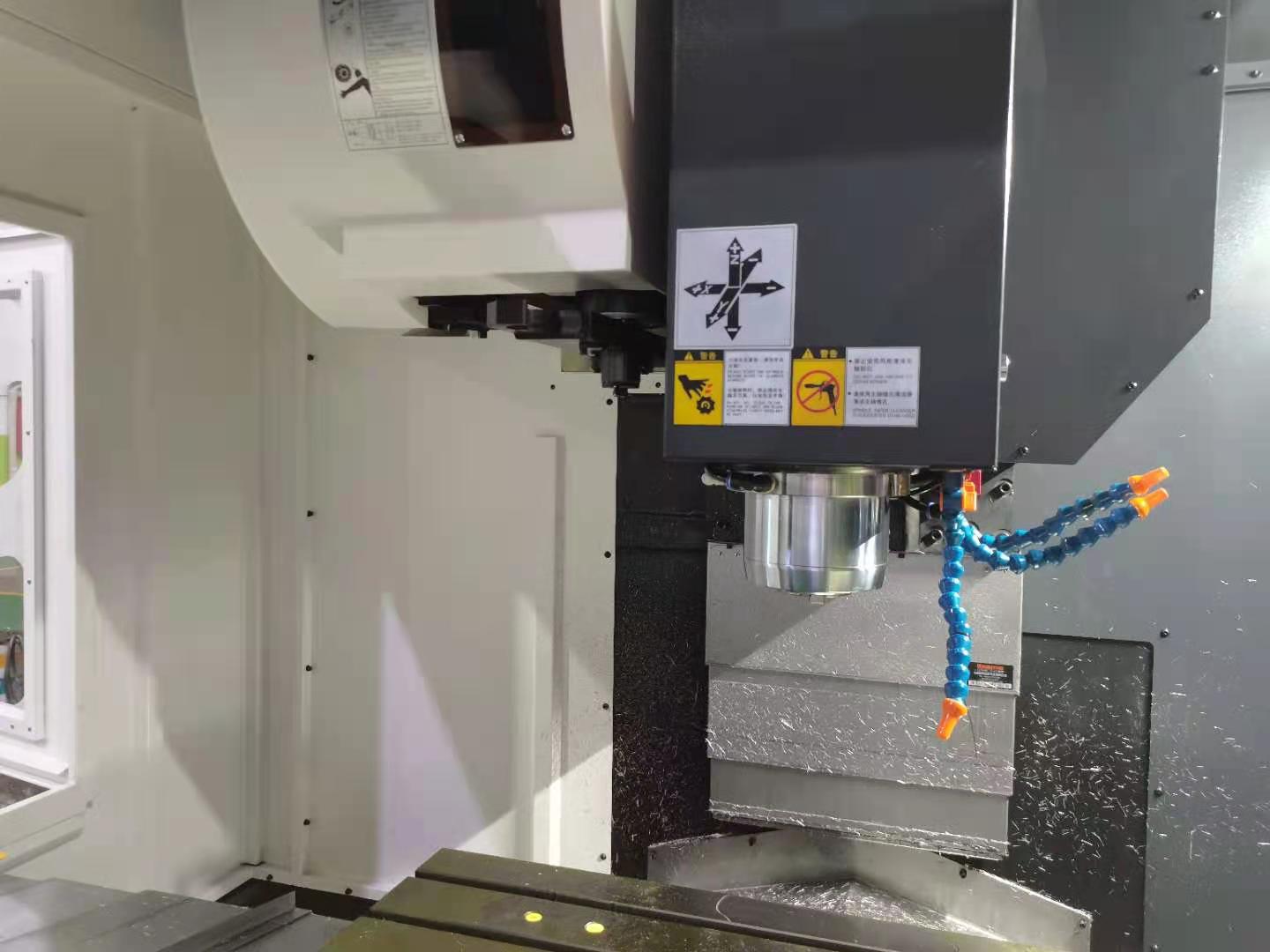

    Taiwan Spindle and ATC


    Application


    Why Choose Joint Machine ?


    1.26year professsional cnc machinery manufacturer In China


    2. National High -tech Enterprise


    3.Shenzhen famous brand "JOINT"


    4. Member of China Quality Association


    5.Vice -Chairmen of shenzhen Machinery Association


    6.Awarded China Metal Cutting Industry Top 50 for Five years in manufacturing industry
