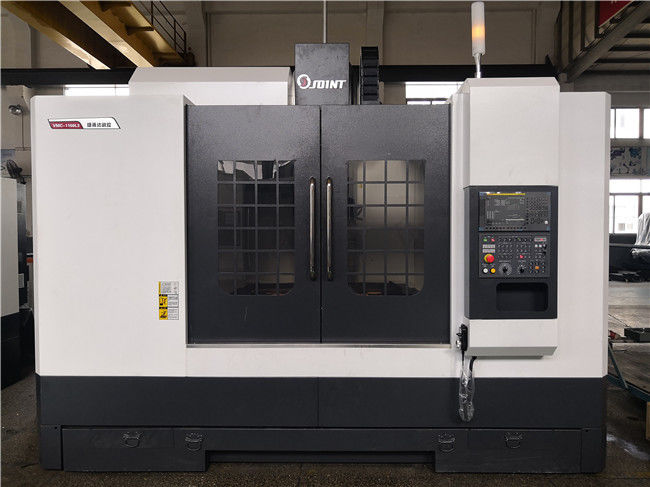

Three axis ball linear way CNC Machine Center VMC1160L3

VMC-1160L3 with optimizing machine body structure design has advantages in processing

efficiency, processing precision and smooth finish of mould curved surface processing ,can

be widely applied to 3C product ,Automatic special parts ,electronic, mechanical, automobile,

precision medicine and other field of product processing.

1. The base, the workbench, the column, the beam, the sliding seat and the ram are all made

of high-quality resin sand. High-strength, high-quality cast iron, with a complete heat treatment

process to eliminate residual stress and arrange enough reinforcement. This structure ensures sufficient strength, rigidity and high stability of the machine.

2. X/Y axis adopts ball linear way with strong rigidity and good dynamic precision.

3. Three-axis transmission adopts Taiwan brand large-diameter grinding double-nut ball screw, which has compact structure, stable movement and high precision.

4. The high-rigid Taiwan brand spindle, which is lubricated with grease, can make the spindle

bearing have constant and reliable lubrication, can realizes long-term maintenance-free.

1. Fanuc MF(5) Controller system 2. 8000Rpm spindle

3. Full enclosed cover 4.Spindle encoder position system

5. Three axis inner encoder feedback system 6. Auto lubrication system

7. Pneumatic system 8. RS 232 Interface

9. Operation unit 10. Working light

11. Tool and tool box


1. M80A Mitsubishi controller system 2. Spindle oil coolant

3. Heat exchanger 4. Umbrella type tool magazine

5. Arm type tool magazine 6. Screw type auto conveyor

7. Chain type tool magazine 8. 4 Axis rotary table

9. Ring spray spindle

   Shenzhen Joint Technology CO.,LTD., was established in 1995.Our headquarter is located in PingHu

town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development,

production, sale, and service of mold processing machine tools and specialized machine tool equipments for

machine work of excellent quality for more than a decade.


   Currently ,there are eight series of products—high speed turret milling machine, precision surface grinding

machine, EDM machine tool, CNC milling machine, NC milling machine ,Gantry type machine center ,CNC

engraving machine ,and CNC lathe machine


   Our own brand “JOINT “ Has been the top quality machine’s signal in domestic sales, JOINT also has been

recognized as “ GUANGDONG Famous Brand “ in 2008, and milling machine was recognized as “ TOP 10

Famous Brand of Milling machine “ in China, Our product got CE certificate in 2005. Our product had been

exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation

there, Welcome your visit !

Core Advantage:

1.Specification of detailed process and operation mechanism, as well as high standards of production, testing

of hardware and software -- guarantee stable quality of product supply and service support

2.More than 20 years of in-depth research and technical precipitation, products and technology to promote

rapid innovation and progress

3.ERP,CRM and other comprehensive information management system, to form the enterprise efficient

operation and continuous improvement system.

4.Integrity, collaboration, innovation, win-win spirit, established a strong, stable supply chain, and long-term

win-win development of the broad customer base.

Our Honor and Qualifications

1. National High-tech enterprise

2. Shenzhen famous brand "JOINT"

3. Member of China Quality Association

4. Member of China Machine Tools Association

5. Vice-Chairmen of Shenzhen machinery Association

6. Awarded China metal cutting industry top 50 for 5years in a row

7. Awarded Guangdong province Manufacturing industry top 500 in 2014

8. CE certification on Milling Machine ,Grinding machine and machine center

9. Machine Center have passed the inspection and authentication of the "National Machine Tool Quality

   sepervision and inspection Center

10. More than 50 patents On Invention ,Utility model patent and software copyright etc .
