    FANUC or Mitsubishi System Taiwan Spindle and Taiwan 21T Tool Magazine CNC Drilling Machine

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : VTC-600S
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : T/T, L/C
    Supply Ability : 1000 SETS/YEAR
    • Product Details
    • Company Profile

    FANUC or Mitsubishi System Taiwan Spindle and Taiwan 21T Tool Magazine CNC Drilling Machine

    Product Introduction:
    This series products are finely manufactured according to imported machine standard, with characteristics of high stability, high speed, high efficiency drilling and tapping performance. It is widely used in 3C, 5G, shell processing of electronics, parts and shell processing of aerospace, small auto parts, medical devices and other industries


    Product Charactristics:

    1. Three axes are all linear guiding pair, theirs rapid feed speed are 48m/min.

    2. Strength its rigidity when designing construction, thus except for basic drilling funcations, it can also be used for low strength milling of aluminum parts.

    3. Various configurations of modular, for customers to meet different processing needs of personalized choice: 2000/24000 RPM spindle, 16 or 21 knife library


    Industrial Applicant:

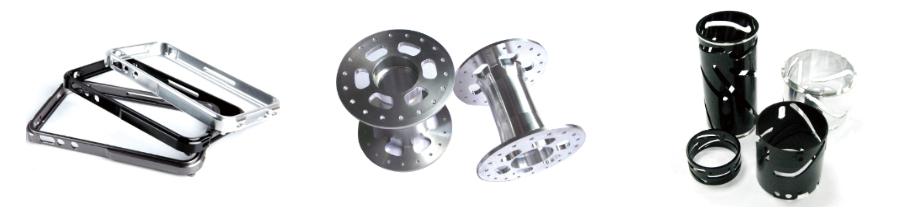

    Handphone shell Mechanical part Digital camera part


    Product specifications:


    ItemUnitParameters
    X axis travelmm600
    Y axis travelmm400
    Z axis travelmm300
    Distance between spindle surface and working tablemm150-450
    Distance between spindle center and columnmm420
    Working table sizemm700*400
    Max load of working tableKG300
    T slot number (No*size*pitch)mm3-14*125
    Tool holder specificationBT30
    Installation diametermm100
    Rivet specificationBT30 45°
    Rotation speed ranger/min20000/24000
    Output ratingN.M14.1/11.8
    Spindle motor rateKW3.7/3.7
    X/Y axis motor output torqueN.M9/8
    Z axis motor output torqueN.M22.5/12
    X/Y axis motor rateKW1.5/2.5
    Z axis motor rateKW3/2.7
    Cutting feedm/min15
    X,Y,Z axis rapid movement speedm/min48/48/48
    Positioning accuracymm0.005/0.005/0.005
    Rapid positioning accuracymm0.004/0.004/0.004
    Dimensionmm1900*2440*2650
    Total electrical capacity of machineKVA15
    The host weightKG2900

    Standard Accessories:

    1. Fanuc/ Mitsubishi control system
    2. Fully closed cover
    3. Three axes Rexroth linear guideway
    4. TaiwanSPINDER spindle (BT30/100 diameter/20000rpm)
    5. Taiwan 21T servo tool magazine
    6. Spindle oil cooler
    7. Heat exchange
    8. BT30 tool holder 1pic; 6'' vise 1pic; clamping kit 1 set
    9. Penumatic system
    10. Auto lubrication system
    11. Work piece cooling system
    12. Clean air gun/ water gun

    Optional Accessories:
    1. Chain type auto chip conveyor
    2. 4 axis

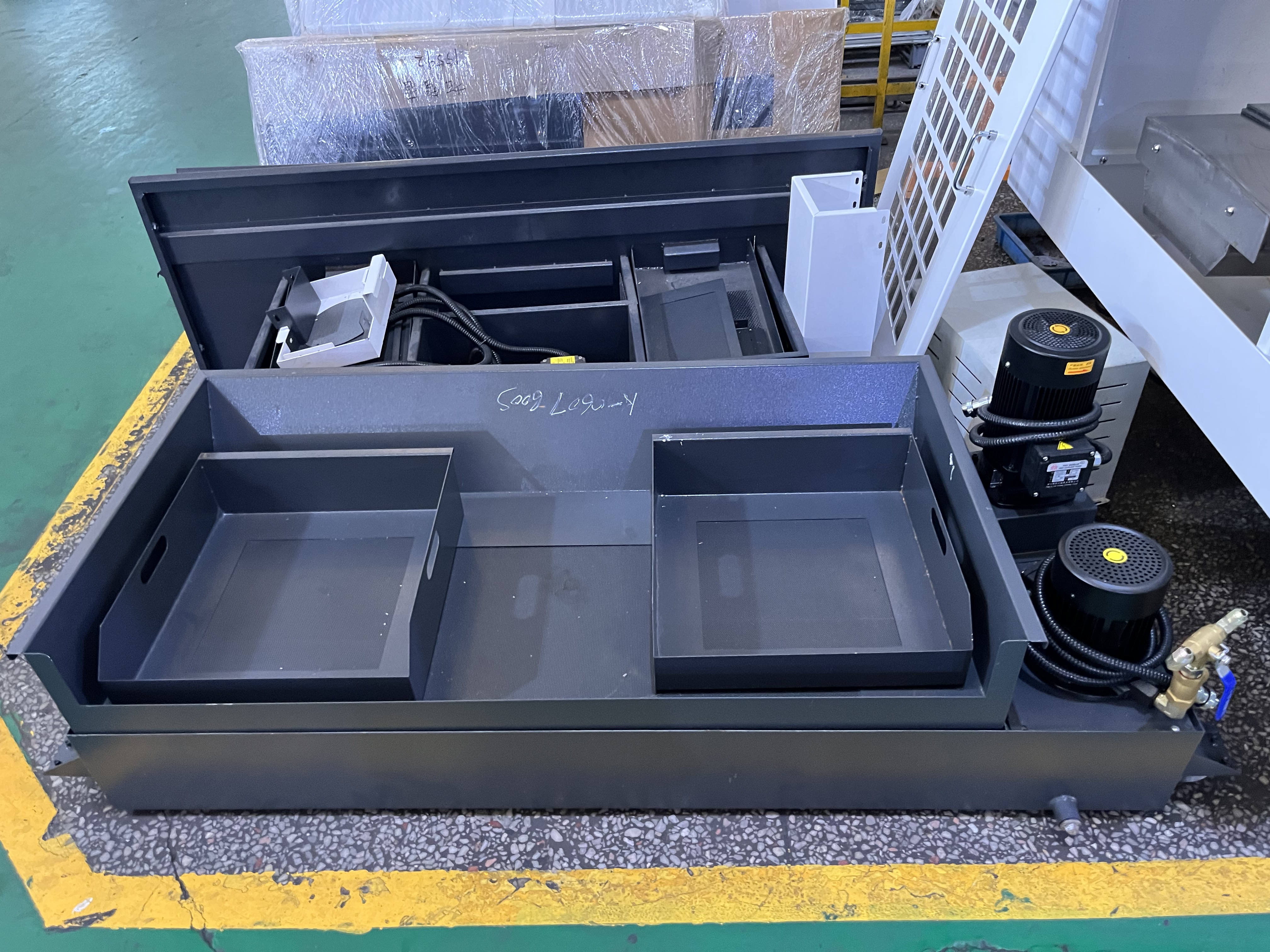

    Product details:




    Package:







    Quality FANUC or Mitsubishi System Taiwan Spindle and Taiwan 21T Tool Magazine CNC Drilling Machine for sale
