    1500 * 1700 * 2150mm Vertical Knee Milling Machine High Spindle Rotation Speed

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : 4KJ-B
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : TT/LC/DA/DP
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    1500 * 1700 * 2150mm Vertical Knee Milling Machine High Spindle Rotation Speed

    4KJ-B knee type NC intelligent mini cnc milling machine with factory price


    1500 * 1700 * 2150mm Vertical Knee Milling Machine High Spindle Rotation Speed

    1. Based on windows xp platform, Joint intelligent controller is designed to have more user friendly applications.

    2. With Z axes servo motor driving, the machine can realize Z axes auto control high precision processing.

    3. X/Y/Z axes adopt ball screw, which can make sure accurate positioning by pitch feedback.

    4. X/Y/Z axes servo motor helps realize three axes auto control and improve the feed speed and processing accuracty.

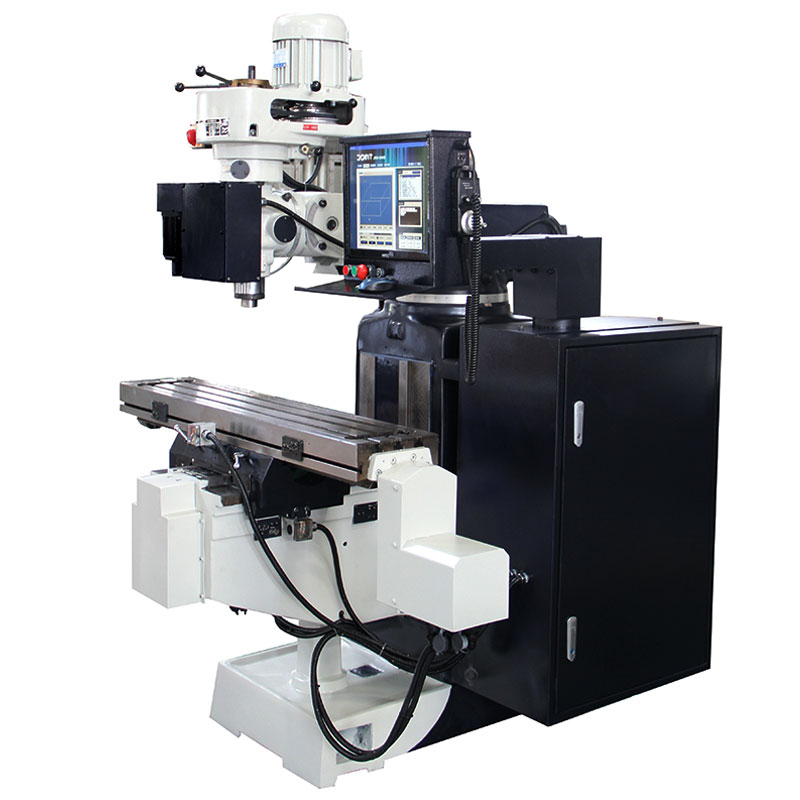

    4KJ-B knee type NC intelligent mini cnc milling machine with factory price.jpg

    1500 * 1700 * 2150mm Vertical Knee Milling Machine High Spindle Rotation Speed

    Model4KJ-B
    Table size1270*254
    T-slot(W*N*D)16*3*65
    X axis travel710mm
    Y axis travel340mm
    Z axis travel105mm
    Knee Travel340mm
    Max distance from the spindle nose to table0-400mm
    Spindle rotation speed80-4530/(16 grades)
    Rapid feed (x/y/z)5/5/4 m/min
    Cutting feed (x/y/z)2 m/min
    Spindle TaperR8(NT30)
    Spindle Rated power3HP
    Dimension1500*1700*2150mm
    Net weight1400kgs

    1500 * 1700 * 2150mm Vertical Knee Milling Machine High Spindle Rotation Speed


    1500 * 1700 * 2150mm Vertical Knee Milling Machine High Spindle Rotation Speed

    1500 * 1700 * 2150mm Vertical Knee Milling Machine High Spindle Rotation Speed

    Precision machinery manufacturer since 1995.

    Your reliant expert on moulding and machining equipemnt!

    4KJ-B knee type NC intelligent mini cnc milling machine with factory priceVertical mini milling machine

    4KJ-B knee type NC intelligent mini cnc milling machine with factory price

    1500 * 1700 * 2150mm Vertical Knee Milling Machine High Spindle Rotation Speed


    4KJ-B knee type NC intelligent mini cnc milling machine with factory price

    1500 * 1700 * 2150mm Vertical Knee Milling Machine High Spindle Rotation Speed

    Q1. How can I get a quotation?
    A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.


    Q2. Can you provide customized machine or SPM (Special purpose machine)?

    A. Yes, we provide smart solutions for our customer, in order to increase efficiency.


    Q3. Can you provide training for operation CNC machines?

    A. Yes, free training in our factory is available.


    Q4. How about your price?

    A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.


    Q5. What's your warranty terms?
    A. We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your Joint sales representative for details.


    Q6. What’s the delivery time, and what’s the package?

    A. Normally the delivery time is about 15 days if the goods are in stock, 35 days if the goods are not in stock. All our machinery are packed with sea worthy package.
