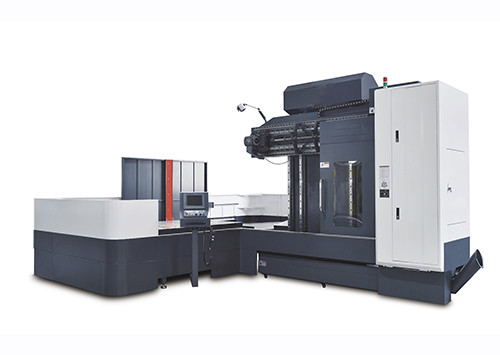

    Tl-3200 45KW Horizontal Deep Hole Drilling Machine 7000rpm CNC Gun Drilling Machine

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : TL-3200
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    Tl-3200 45KW Horizontal Deep Hole Drilling Machine 7000rpm CNC Gun Drilling Machine


    TL-3200 Horizontal Deep Hole Drilling Machine Hole Boring Machine

    For the development of large automobile mold products, high rigidity, large load capacity, increase working station, installed,
    remove the workpiece convenient, suitable for large holes are drilled deep processing, half cover design, import and convenient.

    Specification

    ModelTL-3200
    Number of drill spindleSingle axis
    Innder diameter of drilling3-45mm
    Max depth of drilling2200mm
    Table size2800*1700mm
    X axis travel3200mm
    Y axis travel1550mm
    Z axis travel2200mm
    Drilling cutting feed rate10-250mm
    Max spindle rotation speed7000rpm
    Spindle motorAC SERVO 7.5-11
    X aixs movement motorAC Servo 3.0
    Y axis movement motorAC Servo 2.0
    Z axis movement motorAC Servo 1.5
    Pressure of cutting pressure pump80 kgf/cm2
    Capacity of cutting oil tank6-60L /min
    Max load weight of table15000
    Machine weight22000kgs
    Machine power45kw
    Dimension7100*7100*3300mm

    Application Industry:



    Overview:


    Tl-3200 45KW Horizontal Deep Hole Drilling Machine 7000rpm CNC Gun Drilling Machine


    Package:


    1. Our wooden pallet (wooden case) would fumigate and can get fumigation certificate.


    2. Our package will be very careful for the parts, accessories for the machine.

    Every part, accessory that need to be removed from machine, we will use pearl cotton and transparent film to pack them.

    And make a note of them.
