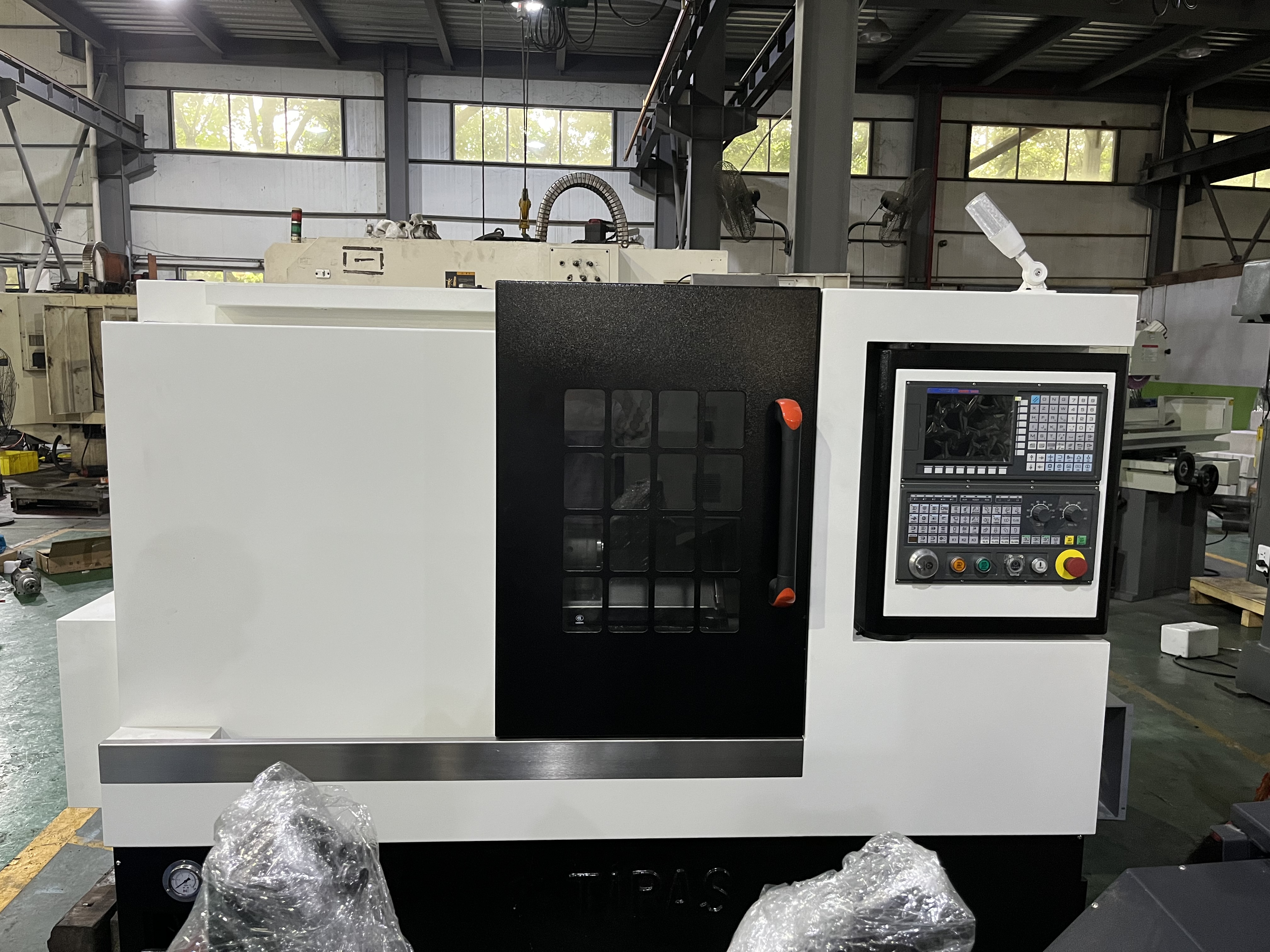

    Automatic High Precision Slant Bed Horizontal CNC Turning Meatl Lathe Center Lathe Machine

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : HTC-3630
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : L/C, T/T
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    Automatic High Precision Slant Bed Horizontal CNC Turning Meatl Lathe Center Lathe Machine

    Characteristics:

    1. Slant bed high quality casting, high stability design, suitable for high rotation speed high feed processing.

    2. X and Z two axis adopt linear guideway, two axis rapid moving speed can reach 20m/min.

    3. Integral high speed spindle, insuring precisive high speed cutting performance.

    4. Can equipped with gang type tool, suitable for batch goods precisive processing.



    Parameters sheet:


    ItemUnitCKH-3630
    Max swing over bedmm360
    Max turning diameter on carriage(mm)200
    Max processing length(mm)280
    Spindle head form (optional with chuck)A2-5(6'')
    Spindle motor ratekw7.5
    Spindle max rotation speedrpm4000
    Spindle hole diametermmØ56
    Work piece bar diametermmØ45
    X axis max travelmm190
    Z axis max travelmm300
    Carriage12T servo tool turret/gang type tool
    Tool turret center heightmm63/54
    X axis rapid movementmm/min30
    Z axis rapid movementmm/min30
    Machine bed form and slopeThe whole 30°
    Dimension (L*W*H)mm2050*1300*1650
    WeightKg2200


    Standard accessories:

    • GSK 980 TDI control system with motor and drive
    • Imported bearing, linear guidway
    • 6’’ hollow type Chinese hydraulic 3-jaw chuck
    • 3 pcs gang type tools
    • Foot switch
    • Work piece cooling system
    • Working light
    • Warming light
    • Auto lubrication system
    • Fully closed cover
    • Guideway cover
    • Sizing block and screw (for adjustment)
    • Tool and tool box
    • Operation manual



    Optional accessories:

    4 positions electric tool carrier


    Overview:









    Main Parts Brand:

    NoNameBrandOriginal place
    1Machine bodyJOINTChina
    2Control systemGSKChina
    3Spindle motorGSKChina
    4SpindleKENTURNChina Taiwan
    5Linear guidewayHIWIN/THKChina Taiwan
    6Ball screwHIWIN/THKChina Taiwan
    7Screw lock nutYinShChina Taiwan
    8Lubrication systemHERGJoint venture of China and Japan

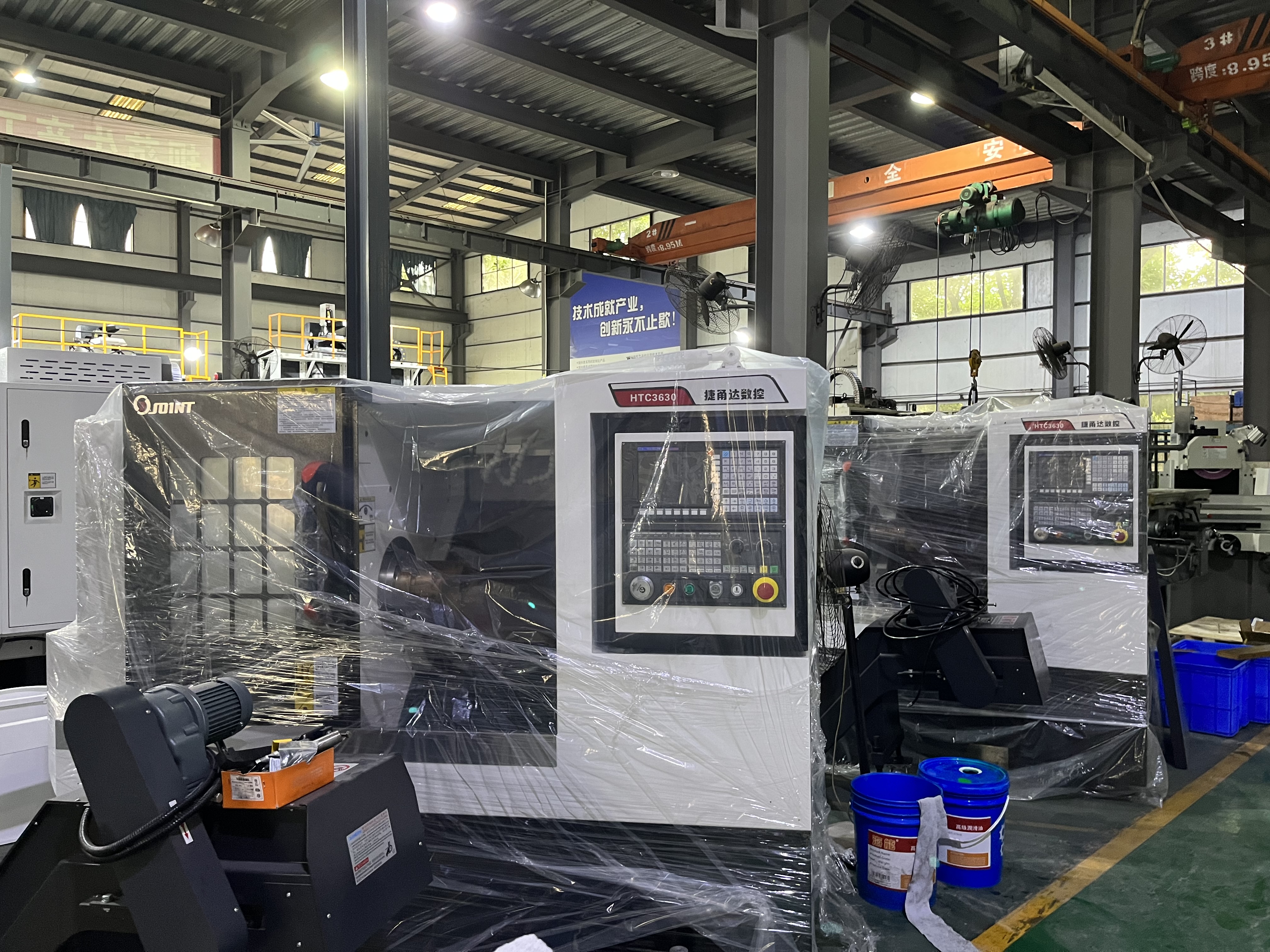

    Package:


























    Quality Automatic High Precision Slant Bed Horizontal CNC Turning Meatl Lathe Center Lathe Machine for sale
