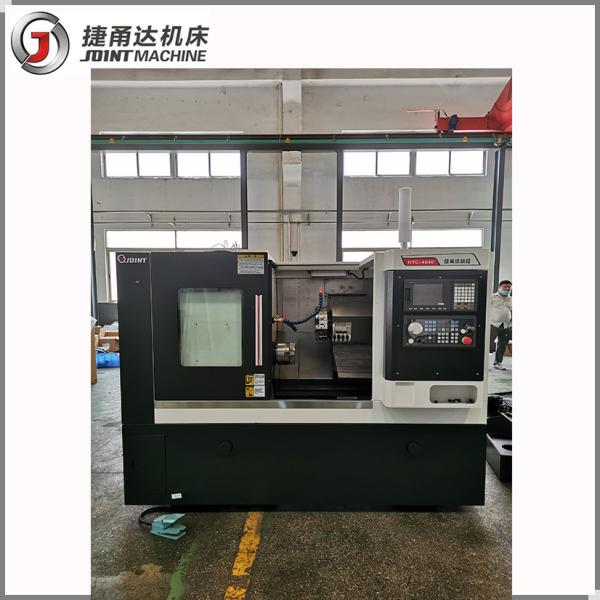

    7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : HTC-4640
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : L/C, T/T
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    7.5kw 3000rpm Horizontal CNC Lathe Machine Hollow Hydraulic Chuck

    Characteristics:

    1. Inclined bed integral casting, two axis rail, suitable for high precision machining

    2. Configure the GSK system

    3. Optional solid or hollow hydraulic chuck, hydraulic station (Taiwan optional) and oil cylinder (Taiwan)

    4. Adopt Taiwan high speed precision spindle, Japan precision bearings



    Parameters sheet:

    ModelHTC-4640
    Max swing over bedØ460mm
    Max turning diameter on carriageØ170 drilling/ Ø200 excircle
    Max cutting length300mm
    TravelMax Limit travelX axis470mm
    Z axis350mm
    X/Z axis connection wayDirection connection
    X/Z axis position accuracy0.004/0.006mm
    Rapid FeedMax moving speedX axis20m/min
    Z axis16m/min
    Spindlespindle rotation speed (stepless)4500/4000*rpm

    Spindle head type
    (chuck is changeable)

    A2-5/A2-6
    Spindle taper hole diameterØ 56mm
    Max bar diameterØ 45mm
    Spindle motorrate

    5.5KW servo spindle motor
    and drive

    Dimension2460*1615*1870mm



    Standard accessories:
    1. GSK980TDI control system and 7.5kw GSK servo spindle motor
    2. Taiwan A2-5 spindle, spindle hole 56, imported bearing and ball screw, linear guideway, 3000rpm
    3. 6'' Taiwan hydraulic chuck and oil cylinder, Chinese hydraulic station, imported hydraulic tailstock

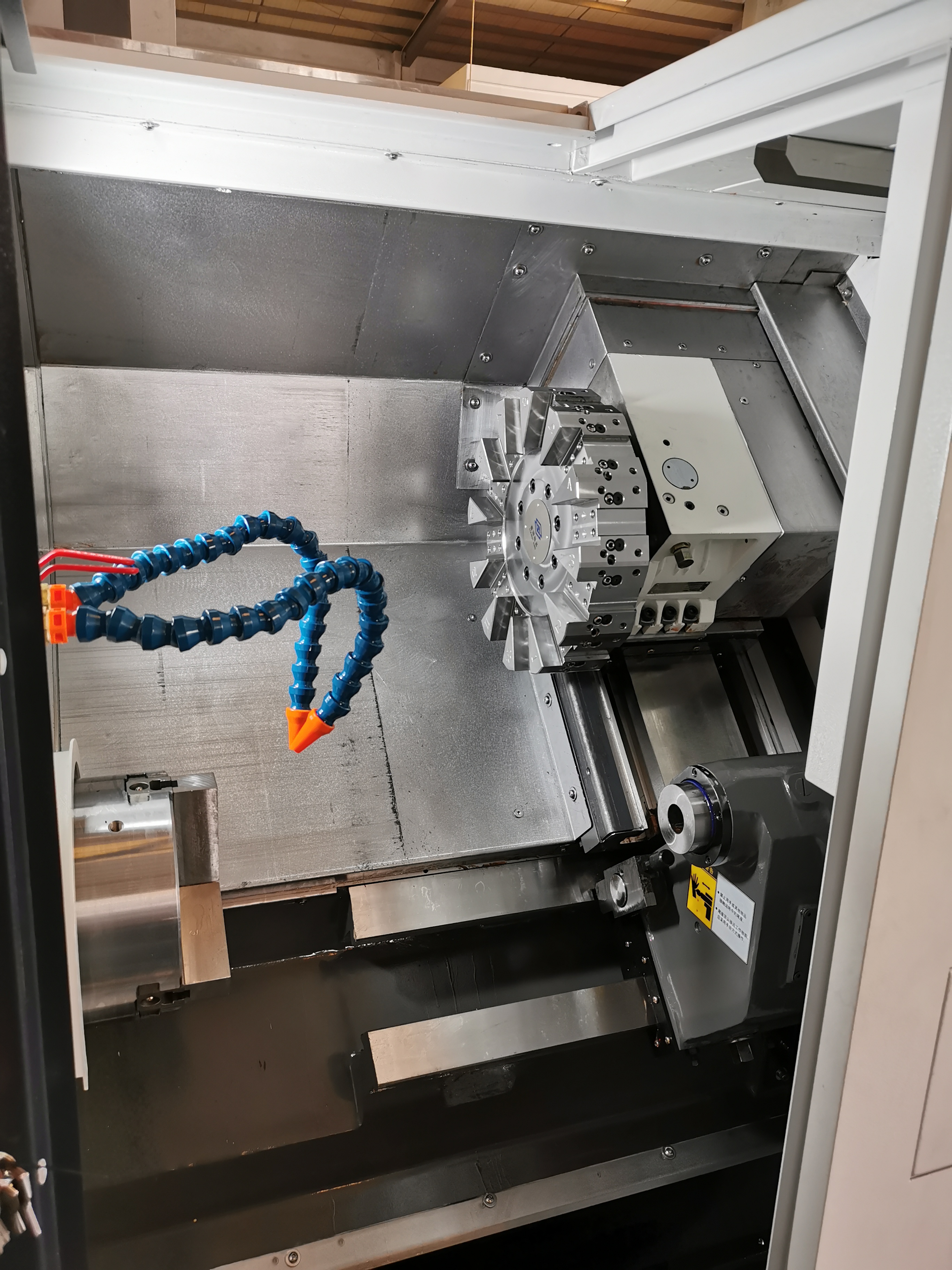

    4. 12 positions servo tool turret
    5. Fully closed cover
    6. Auto lubrication system
    7. Cooling system
    8. Hand unit
    9. Working light
    10. Manual tailstock
    11. Technical documents
    12. Accompanied toolbox

    Optional accessories:

    1. SYNTEC 22A system and servo motor, and SYNTEC matched spindle motor
    2. FANUC OITF(5) system
    3. 8'' hollow hydraulic chuck change to 10'' hollow hydraulic chuck
    4. 4 positions electric tool turret
    5. 8 positions Chinese servo tool turret


    Overview:









    Main Parts Brand:

    NoNamePlantOriginal placeNote
    1Machine bodyJOINTChina
    2Control systemFANUCJapan
    3X/Z axis motorSYNTECTaiwan
    4X/Z axis driveFANUCJapan
    5SpindleROYALTaiwan
    6Servo spindle motorCTBChina
    7Ball screwTHKJapan
    8Linear guidewayTHKJapan
    9CouplingR+WGermany
    10Lubrication systemHERGChina and Japan venture
    11Cooling systemROCOIChina
    12TransformerFUJIEChina
    13Main pneumatic elementAirTACTaiwan
    14Main electrical elementSchneiderChina and France venture
    15DC stablized powerMWTaiwan
    Package:
