    3HP/R8(NT30) Taiwan parts step speed Vertical Turret Milling Machine , 1270*254mm table

    3HP Taiwan Parts Vertical Turret Milling Machines 900*395*340mm travel 4E

    3HP/R8(NT30) Taiwan parts step speed Vertical Turret Milling Machine , 1270*254mm table





    Product Details

    1. Dovetail guide way is adopted on X and Z axis,and square way on Y axis.

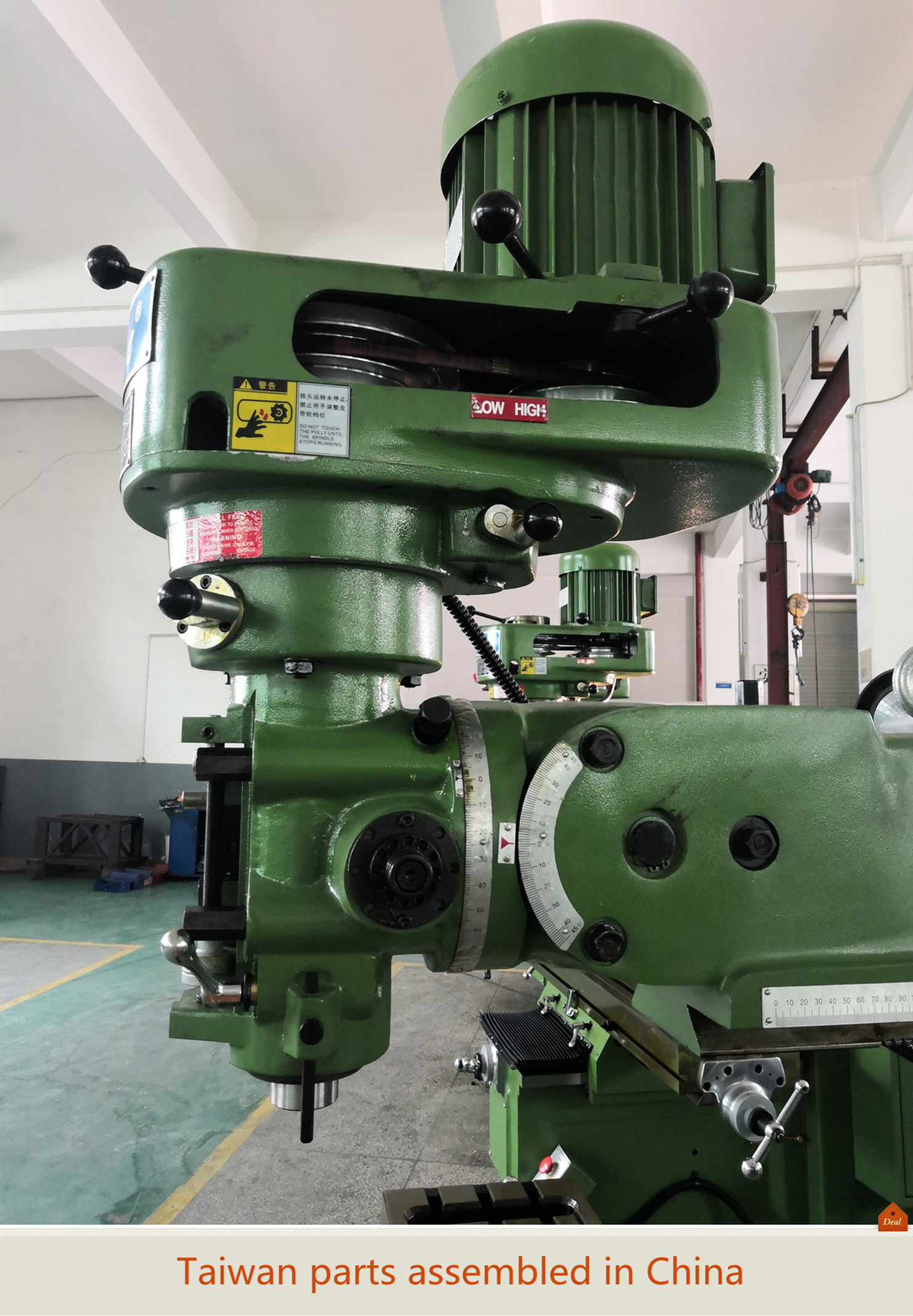

    2. Taiwan parts assembled in China.

    3. Adopted strengthen rion both sides of the column,that makes the machine rigid and beautiful.

    4. Suitable for daily necessities mold processing.


    Company Advantage

    1. Our company have 23 years export experience.

    2. We get the ISO:9001 Certificates.

    3. Our service is 24 Hours Online Service.

    4. Our after-sale service is 12 months quality warranty


    Specifiaction

    Model4E
    Table size1270*254*90mm
    X axis travel900mm
    Y axis travel395mm
    Z axis travel340mm
    Travel of spindle quill127mm
    Max distance from the spindle nose to table400mm
    Spindle rotation speed80-5440/(16Grades)/60HZ 66-4530/(16 Grades)/50HZ
    Spindle TaperR8(NT30)
    Spindle Rated power3HP (2.2KW)
    Tilt angle Forward and backward±45°
    Tilt angel left and right±90°
    Dimension1500*1700*2150mm
    Net weight1400kgs


    3HP/R8(NT30) Taiwan parts step speed Vertical Turret Milling Machine , 1270*254mm table

    3HP/R8(NT30) Taiwan parts step speed Vertical Turret Milling Machine , 1270*254mm table


    Standard Accessories

    1. Step speed milling head

    2. Way cover

    3. Working light

    4. Tool and toolbox

    Optional Accessories

    1. Milling chuck

    2. Clamping kit

    3. 6 Vise

    4. Coolant system

    5. X/Y Axis power feed

    6. Elevator motor

    7. Two axis DRO /Three axis DRO

    8. Mechanic Feed

    9. Variable speed milling head

    10. Inverter speed milling head

    11. NT30/NT40 Power feed
