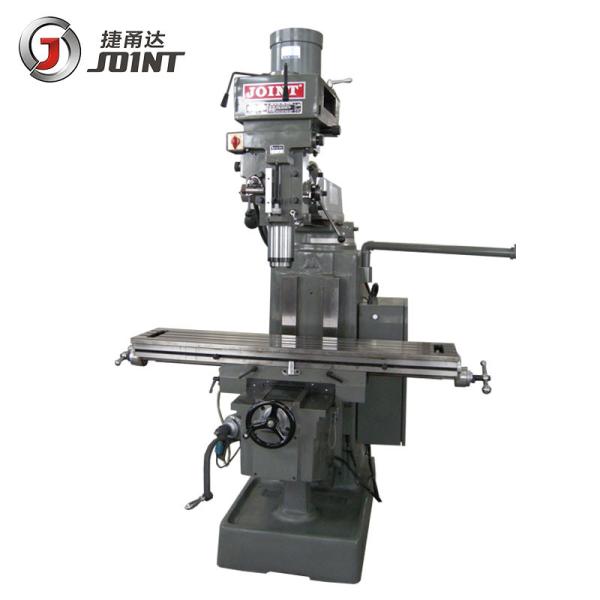

    NT40 Horizontal Turret Milling Machine Knee Milling 5VB And 1470*305*90mm Table Size

    Taiwan original milling head vertical milling machine


    NT40 Horizontal Turret Milling Machine Knee Milling 5VB And 1470*305*90mm Table Size


    1. The ram movement accuracy is guaranteed, and it can be rotated by turntable to do special processing on both sides. Processing speed and tool requirements: Milling head speed 1860 rpm, with single-blade flying tool with 80mm diameter.


    2. HT-250 resin sand is used for the body casting material and other large parts, and the table is HT-300 resin sand. The surface hardness of the Joint milling machine worktable and guide surface should be increased from HRC-45 to 48 degree.


    3. The wall thickness of machine is 12mm.


    4. Taiwan original milling head, Japan NSK P4 precision spindle bearings.


    5. Spindle tolerance:0.002mm


    NT40 Horizontal Turret Milling Machine Knee Milling 5VB And 1470*305*90mm Table Size


    NT40 Horizontal Turret Milling Machine Knee Milling 5VB And 1470*305*90mm Table Size

    Model5VB
    Table size1470*305*90mm
    X axis travel810mm
    Y axis travel415mm
    Z axis travel420mm
    Travel of spindle quill150mm
    Max distance from the spindle nose to table620mm
    Spindle rotation speed

    60-3000/(10Grades)/50HZ

    70-3600/(10Grades)/60HZ

    Spindle TaperNT40
    Spindle Rated power5HP
    Tilt angle Forward and backward±45°
    Tilt angel left and right±90°
    Dimension1500*1900*2450mm
    Net weight2100kgs
