    Large Industrial CNC Vertical Machining Center 1500 * 700mm Table High Precision

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : VMC1370L3
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : TT/LC/DA/DP
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    Large Industrial CNC Vertical Machining Center 1500 * 700mm Table High Precision

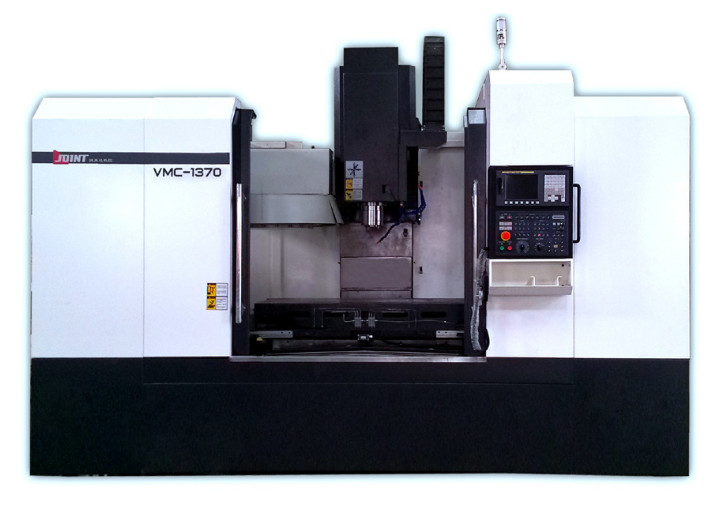

    VMC1370L3 Linear Way Vertical CNC Machine Center BT50 15KW 8000rpm Spindle


    Large Industrial CNC Vertical Machining Center 1500 * 700mm Table High Precision

    Large Industrial CNC Vertical Machining Center 1500 * 700mm Table High Precision

    Large Industrial CNC Vertical Machining Center 1500 * 700mm Table High Precision

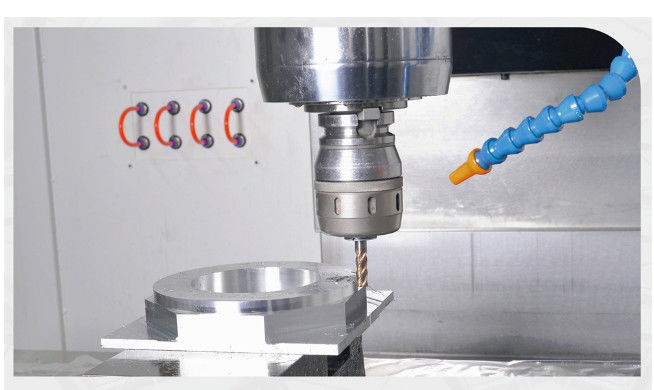

    Product Application:


    1. It can finish clamping one-time of various dishes, plates, shell, cam, mold and other complex parts.


    2. It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process.


    3. It is suitable for many varieties, medium and small batch production.


    4. It can finish the processing of complex, high precision parts .


    5. It can be matched the four rotary shaft , in order to meet the requirements of special parts.

    Large Industrial CNC Vertical Machining Center 1500 * 700mm Table High Precision


    Product features:


    1. Imported high speed and high precision spindle.


    2. Tool magazine optional


    3. High strength resin sand casting.


    4. C3 grade ball screw


    5. NSK bearing imported from Japan


    6. Automatic intermittent lubricate system


    7. Fully enclosed cover


    8. Fanuc, Simens, Mitsubishi, Syntec CNC control system


    ModelUnitVMC-1370L3
    TravelX axismm1300
    Y axismm700
    Z axismm750
    Distance between spindle and tablemm170-920
    Working tableTable sizemm1500*700
    Max. Load of tableKg1000
    T slotPcs-mm-mm5-22-135
    Positioning accuracyX/Y/Z axismm0.01/0.008/0.008
    Repeated positioning accuracyX/Y/Z axismm0.008/0.007/0.007
    SpindleSpindle rotation speedRpm8000
    Spindle taperBT40
    DiametermmΦ155
    Rivet modelBT50 45°
    Rapid feedX/Y/Z axism/min24/24/18
    Cutting feedX/Y/Z axism/min10
    Tool magazineUmbrella typeSizeTools20
    Too changing time (T-T)Sec6
    Max. diameter/ length/weight of toolmm135/250/15
    Max tool diameter (no tool adjacent)mm185
    Arm typeSizeTools24
    Tool changing time (T-T)sec3.5s
    Max. diameter/ /length/weight of toolmm110/250/15
    Max tool diameter (no tool adjacent)mm200
    Total capacity of electricKVA35
    Weight of machine

    Kg

    10300
    Dimensionmm3560*3300*3300

    Large Industrial CNC Vertical Machining Center 1500 * 700mm Table High Precision

    Standard Accessories:


    Fanuc/Mitsubishi Controller system


    Full enclosed cover


    Spindle encoder position system


    Three axis inner encoder feedback system


    Auto lubrication system


    Pneumatic system


    RS 232 Interface


    Operation unit


    Working light


    Tool and tool box


    Optional accessories:


    Siemens controller or other controller system


    Spindle oil coolant


    Umbrella type tool magazine


    Arm type tool magazine


    Screw type auto conveyor


    Chain type tool magazine


    4 Axis rotary table


    Ring spray spindle
