    3 Axis Linear Guideway Vertical CNC Machine 18.5KW Power BT50 45° High Speed

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : VMC1580L3
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : TT/LC/DA/DP
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    3 Axis Linear Guideway Vertical CNC Machine 18.5KW Power BT50 45° High Speed

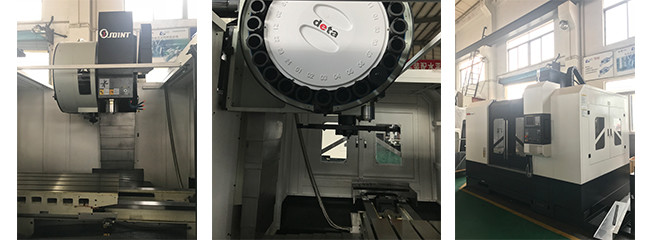

    VMC1580L3 3 axis Linear Guideway Vertical CNC Machine Tool BT50 18.5KW Power


    Product features:


    1. The spindle unit of the machine tool is high speed, high accuracy, high rigidity, with large load carrying capacity of axial and radial.


    2. Taiwan HIWIN company's heavy load linear ball guide, has the advantages of fast speed, Eliminate intermittent creep, high rigidity, low friction, low noise , low temperature rise and so on.


    3. Schneider electric parts, Safety, reliability, long service life.

    4. The machine tool external protection of machine tool uses the full protection structure. It is convenient operation, safe and reliable, and nice shape.


    5. The machine matched with 12 hats (standard) or 16 disc knife library (optional) supplied by Taiwan professional manufacturers.


    6.The principle of human body engineering is used in machine tool operation system . The operating box is independent. It can be self-rotation and easy to operate.


    Company service:


    1. Faithful: Honest is the key to communication.


    2. High quality : 20 years rich experienced assembly skills, Main parts imported from Japan, Germany, Taiwan etc.


    3. Service: Customer first


    4. Timely : Reply your inquiry within 8 hours, Delivery machines within agreement time.


    5. Price: win-win price.


    Specification Of Vertical machine center VMC1580L3


    ModelUnitVMC-1580L3
    TravelX axismm1500
    Y axismm800
    Z axismm700
    Distance between spindle and tablemm170-870
    Working tableTable sizemm1700*800
    Max. Load of tableKg1500
    T slotPcs-mm-mm5-22-140
    Positioning accuracyX/Y/Z axismm0.01/0.008/0.008
    Repeated positioning accuracyX/Y/Z axismm0.008/0.007/0.007
    SpindleSpindle rotation speedRpm8000
    Spindle taperBT50
    DiametermmΦ155
    Rivet modelBT50 45°
    Rapid feedX/Y/Z axism/min24/24/18
    Cutting feedX/Y/Z axism/min10
    Tool magazineUmbrella typeSizeTools20
    Too changing time (T-T)Sec6
    Max. diameter/ length/weight of toolmm135/200/15
    Max tool diameter (no tool adjacent)mm185
    Arm typeSizeTools24
    Tool changing time (T-T)sec3.5s
    Max. diameter/ /length/weight of toolmm110/200/15
    Max tool diameter (no tool adjacent)mm200
    Total capacity of electricKVA35
    Weight of machine

    Kg


    12100
    Dimensionmm4300*3900*3300

    Standard Accessories:


    Fanuc/Mitsubishi Controller system


    Full enclosed cover


    Spindle encoder position system


    Three axis inner encoder feedback system


    Auto lubrication system


    Pneumatic system


    RS 232 Interface


    Operation unit


    Working light


    Tool and tool box


    Optional accessories:


    Siemens controller or other controller system


    Spindle oil coolant


    Umbrella type tool magazine


    Arm type tool magazine


    Screw type auto conveyor


    Chain type tool magazine


    4 Axis rotary table


    Ring spray spindle
