Introduction:

VMC-V85P is our BEST model, suitale for processing HIGH SPEED AND HIGH PRECISION mold and parts. Its optimized fuselage design is more advantageous in part processing effieience and mold curve processing accuracy and cleaness. It can widely used in 3C products, autoautomatic special aircraft parts, electronics, machinery, automotive, procesion medical and other fields of high-precision product processing

Product Characteristics:

1. Using finite element analysis software and vibration detection technology to test its fuselage constructure design repeatedly, demostrating that V85P with high stability deformation-proof characteristics, ensuring whole machine rigidity, and vibration-proff when processing high speed.

2. Ultra wide base, X axis is 0.39m wider than V85, which improves machine stability of degree and smoothness of movement.

3. Three axis adopts high loaded and high rigidity roller linear guide rail, X/Y/Z axis width is 45mm, optimizes cutting capacity of machine.

4. No hammer counterweight design, Z axis increase motor rate to improve responsiveness of Z axis.

5. Column large spam(260mm wider than V85), added right and left vertical direction on the platform design. Tool magazine is installed horizontally in left platform, avoding column deformaton caused by side installed tool magazine. Column adopts large span herringbone design and endolumen cross sinewy structure, for satisfying Z axis part high speed movement and spindle high speed rotation rigidity requirement, through which ensuring the overall deformation coefficient of the column and the vibration of the machine tool will be reduced to the minimum.

6. Spindle box reinforced design, reduce vibration when spindle is rotation in high speed, and improve machine cutting capacity.

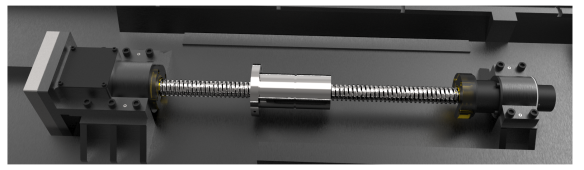

7. V85P ball screw pitch is 10, smaller lot than others through decreasing ball screw gap to increase processing accuracy.

Products Fuselage:

Super Wide Base

High Rigidity Roller Linear Rail

Reinforced Spinde Box Long Span Column

No Hammer Overweight Design

Standard Accessories:

Overview:

   Shenzhen Joint Technology CO.,LTD., was established in 1995.Our headquarter is located in PingHu

town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development,

production, sale, and service of mold processing machine tools and specialized machine tool equipments for

machine work of excellent quality for more than a decade.


   Currently ,there are eight series of products—high speed turret milling machine, precision surface grinding

machine, EDM machine tool, CNC milling machine, NC milling machine ,Gantry type machine center ,CNC

engraving machine ,and CNC lathe machine


   Our own brand “JOINT “ Has been the top quality machine’s signal in domestic sales, JOINT also has been

recognized as “ GUANGDONG Famous Brand “ in 2008, and milling machine was recognized as “ TOP 10

Famous Brand of Milling machine “ in China, Our product got CE certificate in 2005. Our product had been

exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation

there, Welcome your visit !

Core Advantage:

1.Specification of detailed process and operation mechanism, as well as high standards of production, testing

of hardware and software -- guarantee stable quality of product supply and service support

2.More than 20 years of in-depth research and technical precipitation, products and technology to promote

rapid innovation and progress

3.ERP,CRM and other comprehensive information management system, to form the enterprise efficient

operation and continuous improvement system.

4.Integrity, collaboration, innovation, win-win spirit, established a strong, stable supply chain, and long-term

win-win development of the broad customer base.

Our Honor and Qualifications

1. National High-tech enterprise

2. Shenzhen famous brand "JOINT"

3. Member of China Quality Association

4. Member of China Machine Tools Association

5. Vice-Chairmen of Shenzhen machinery Association

6. Awarded China metal cutting industry top 50 for 5years in a row

7. Awarded Guangdong province Manufacturing industry top 500 in 2014

8. CE certification on Milling Machine ,Grinding machine and machine center

9. Machine Center have passed the inspection and authentication of the "National Machine Tool Quality

   sepervision and inspection Center

10. More than 50 patents On Invention ,Utility model patent and software copyright etc .
