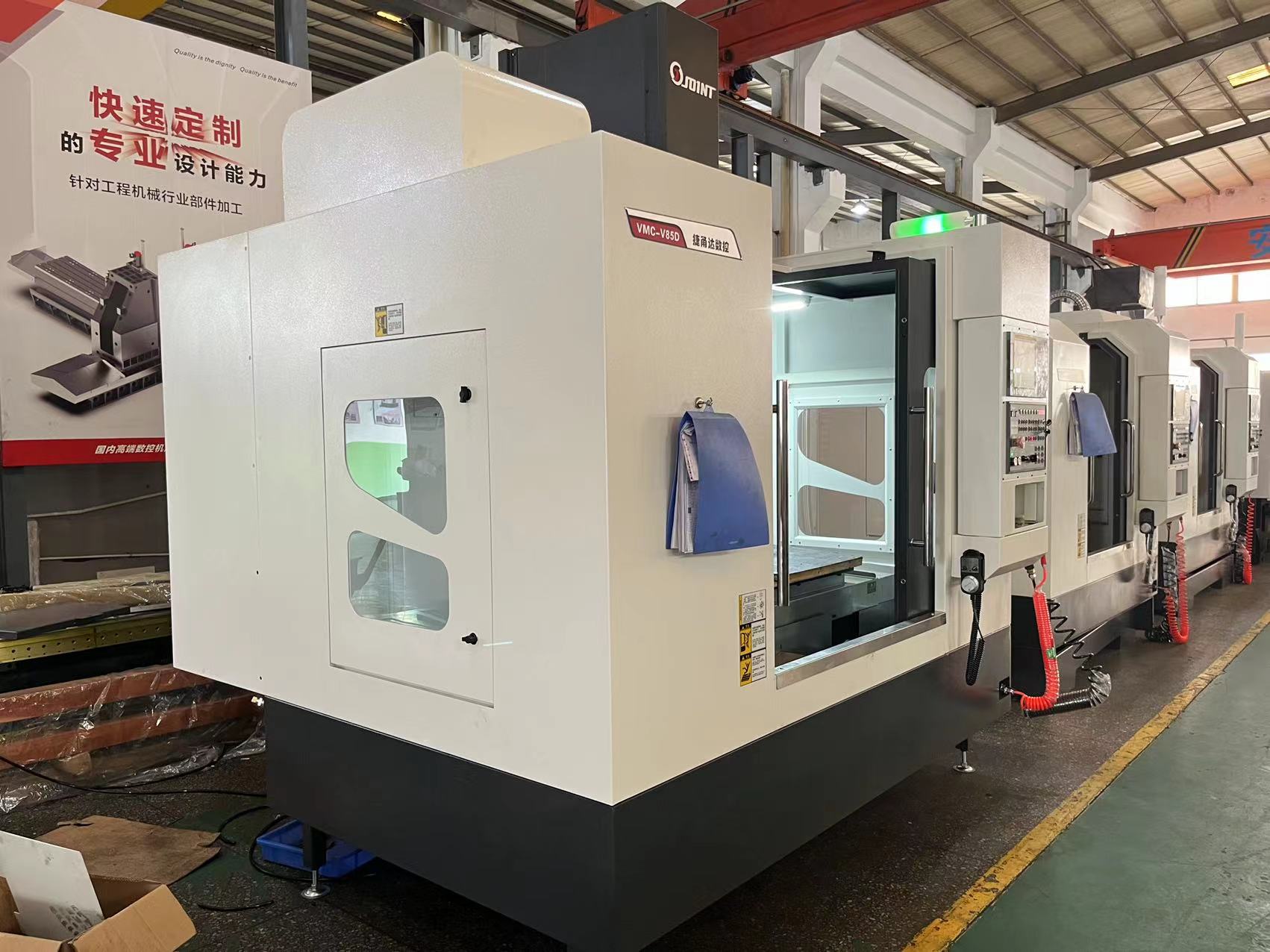

    FANUC Control System Linear Guideway BT40/7.5KW/12000rpm Spindle CNC Milling Machine

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : VMC-85D
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : L/C, T/T
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    FANUC Control System Linear Guideway BT40/7.5KW/12000rpm Spindle CNC Milling Machine


    Product Characteristics:

    1. Three axis adopt ball linear guide way or roller linear guide way, rapid feed:48m/min

    2. The direct-connected short nose high-speed spindle can improve efficiency, reduce tool wear and maximize the transmission efficiency of the spindle motor. Improving processing accuracy and extending spindle life.

    3. Equipped the rear chip conveyor with a large flow chip removal system, which can meet the requirements of rapid chip removal.


    Specification:


    ModelVMC-V85D
    Table sizemm1000*500
    Max load of tableKg550

    Travel

    Longitude (X)mm800
    Crossward (Y)mm500
    Vertical (Z)mm500
    Distance between spindle nose and tablemm180-680
    Distance between spindle and columnmm550
    Work table T slot (No,-Size*Pitch)Mm5-18*102/82
    SpindleInstallment diametermmBT40/Φ140
    Rotation speedrpm12000
    TaperBT40 45°
    MotorKw7.5
    Max torqueNm35.8

    Three- axis


    rapid

    Moving

    speed

    Longitude (X)m/min48
    Crossward (Y)m/min48
    Vertical (Z)m/min48
    X/Y axis max torqueNM11
    Z axis max torqueNM20
    X/Y axis motorKw1.8
    Z axis motorKw3
    Cutting feedm/min15

    Tool magazine

    (arm type)

    Tool capacityset24
    Max tool diameter/length/weightmm/mm/kg80/200/8

    Maximum tool diameter

    (no adjacent tools)

    Mm150
    Tool change times2.8
    Positioning accuracymm0.006
    Repeat positioning accuracymm0.005
    Dimension (L*W*H)mm2400*2635*2830
    Net weightKg4200

    Standard accessories:

    1. VMC-V85D is designed for parts processing, mainly for processing aluminium parts.

    2. Fanuc MF (5) CNC system+Motor+Drive

    3. 7.5KW/BT40/12000rpm spindle

    4. BT40 tool shank 1 pic

    5. 6’’ vise*1 pic

    6. Clamping kit*1 set

    7. Spindle oil cooler

    8. Heat exchanger

    9. Taiwan arm type BT40-24T tool magazine

    10. Fully closed shell

    11. Pneumatic system

    12. Auto lubrication system

    13. Work piece coolant system

    14. Clean air gun,clean water gun

    15. Flushing system

    16. Three colors warming light

    17. Working light

    18. Guideway cover

    19. Hand operation unit

    20. Accompanied tool box

    21. Technical documents

    Optional accessories:
    1. Chain type chip conveyor


    No.NameBrand
    1Machine bodyChina Joint
    2Controller SystemJapan Fanuc
    3Spindle motorJapan Fanuc
    4X/Y/Z axis motorJapan Fanuc
    5SpindleChina Joint
    6Ball screwTaiwan PMI/HIWIN
    7BearingJapan NSK
    8Precision Locknut screwTaiwan YINSH
    9Lubrication systemTaiwan BAOTN
    10Tool magazineTaiwan POJU/OKADA
    11Main pneumatic componentsAmerica EATON
    12TransformerChina TAIKE/FUJIE
    13Main electric componentsAmerica EATON
    14DC regulated power supplyTaiwan MW
    16Spindle oil coolerChina RUCOL
    17Heat exchangeChina RUCOL

    Application Industry:



    Overview:



    Package:
