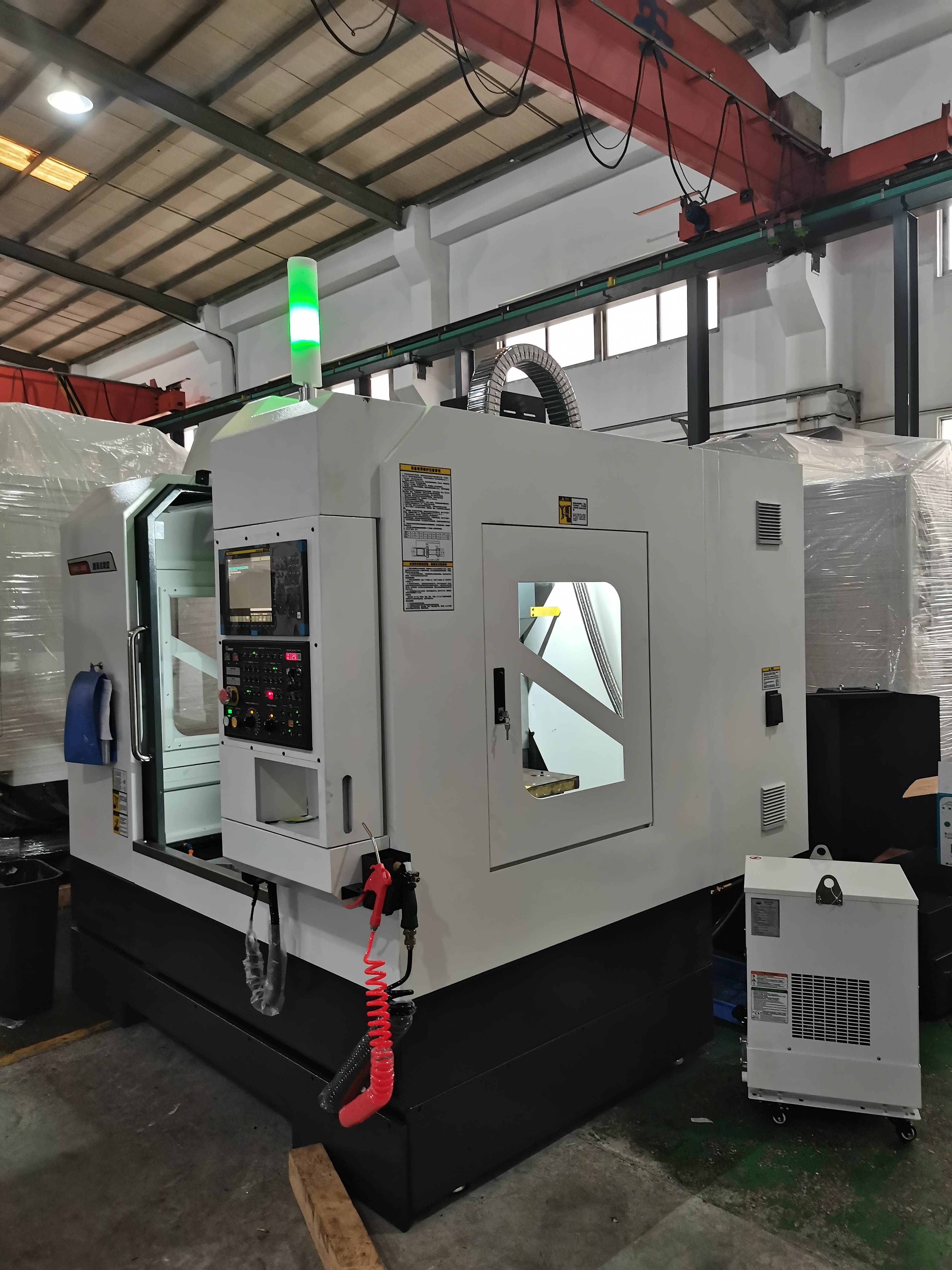

    Short Spindle Nose Vertical CNC Machine 7.5kw V65 15000rpm Bt40-120

    Introduction:

    This V series CNC machine center has the characteristics of fast feed speed and high rotation speed, so it is suitable for batch parts with many tools, complicated processing and multiple processes. Mainly processing cabinets, complex curved surfaces, heterosexual parts, disks, sleeves, plate parts, etc., are widely used in electronics, machinery and automotive, automation, medical, national defense and other fields.


    Product Characteristics:

    1. Three axis adopt ball linear guide way or roller linear guide way, rapid feed:48m/min

    2. The direct-connected short nose high-speed spindle can improve efficiency, reduce tool wear and maximize the transmission efficiency of the spindle motor. Improving processing accuracy and extending spindle life.

    3. Equipped the rear chip conveyor with a large flow chip removal system, which can meet the requirements of rapid chip removal.


    Specification:

    ModelV65
    TravelX axis travelmm600
    Y axis travelmm400
    Z axis travelmm420
    Distance between spindle and tablemm170-590
    Distance between spindle and columnmm456
    TableSizemm700*420
    Loadkg300
    T slot sizemm3-18*125
    SpindleTaperBT40-120 short spindle nose
    Install diametermm120
    Rotation speedr/minbelt 10000/ direct 12000/direct 15000
    Three axisCutting feedm/min15
    Rapid feedm/min48/48/48
    Arm type Tool magazineTool capacityT24
    Maximum diameter/ length/ weight of toolmm/mm/kg80/200/8
    Maximum diameter of tool (no tool)mm150
    Tool change time (T-T)s2.8
    AccuracyPositioning accuracy (X/Y/Z)mm0.006/0.006/0.006
    Repeat positioning accuracy (X/Y/Z)mm0.005/0.005/0.005
    OtherDimensionmm2050*2535*2500
    Power capacityKVA15
    Weightkg3300

    Standard accessories:
    1. Mitsubishi/ Fanuc controller system with AICC2 Function
    V65 belt connectin with 10000rpm spindle
    2. Fully enclosed cover
    3. Pneumatic system
    4. Anto lubrication system
    5. Work piece coolant system
    6. Heat exchange
    7. Air gun
    8. Water gun
    9. Spindle oil coolant
    10. 24T Arm type tool magazine
    11. Rear flishing
    12. Hand wheel
    13. RS232 Interface
    14. Alarming light
    15. Working light
    16. Guide way cover
    17. Technical documents
    18. Operation manual

    Optional accessories:
    1. Screw type conveyor
    2. Chain type conveyor
    3. 4 axis Rotary table
    4. Coolant through spindle (CTS)
    5. Spindle rotation speed can be direct connection with 12000rpm.


    Application Industry:



    Overview:




    Package:
