    4kw 3000rpm Flat Bed Lathe Machine CK6140 280mm Length With A2-6 Spindle

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : CKH-3228
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : L/C, T/T
    Supply Ability : 1000 sets/year
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    4kw 3000rpm Flat Bed Lathe Machine CK6140 280mm Length With A2-6 Spindle


    Product features:


    1. Flat bed, equipped with Taiwan linear guideway, improving its processing speed and product accuracy stability.

    2. Angular contact spindle bearing, strengthed spindle rigidity and accuracy, improving the cutting capability of product.

    3. Middle placed ball screw, stengthed stability of maching when processing.

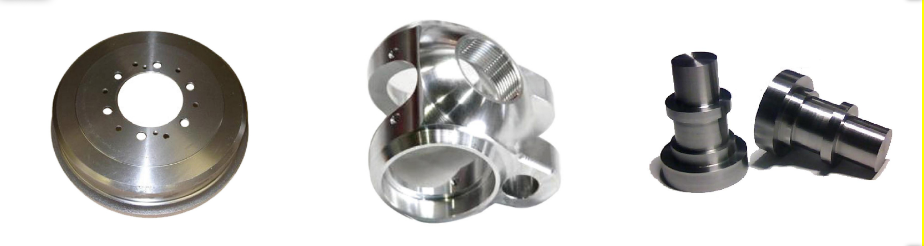

    4. With its high efficiency and high cost performance, it has become the most competitive product for turning small parts

    such as plumbing valves and jewelry.


    Product specifications:

    ItemUnitCKH-3228
    Max swing over bedmm320
    Max turning diameter on carriage(mm)160
    Max cutting length(mm)280
    Spindle motor rate(KW)4
    Hydraulic chuck diametermm10''
    Spindle max rotation speedrpm100-3000
    Spindle hole diametermmØ48
    Work piece bar diametermmØ46/40*hydraulic chuck
    X axis max travel250
    Z axis max travel280
    Chuck specificationmm160/200
    Bed formFlat bed
    Guideway form (X/Z)Direct linear guideway
    Tailstock powerWithout tailstock
    X axis rapid movementmm/min12
    Z axis rapid movementmm/min15
    Dimension (L*W*H)mm1750*1100*1600
    WeightKg2000


    Standard Accessories:

    1) GSK TB3 Control system

    2) 3 pcs gantry type tool holder

    3) 4KW inverter speed spindle motor

    4) Pneumatic collet

    5) Chinese brand spindle

    6) Chinese famous brand bearing and ball screw

    7) Taiwan PMI/HIWIN brand linear way

    8) Fully closed cover

    9) Auto lubrication system

    10) Work piece cooling system

    11) Alarming light

    12) Working light

    13) Guide cover

    14) Iron pad

    15) Accompanied tool box (self-contained tool)

    16) technical documents

    Optional Accessories:
    1. Hydraulic chuck

    2. power feed


    Product applicant:


    Package:
