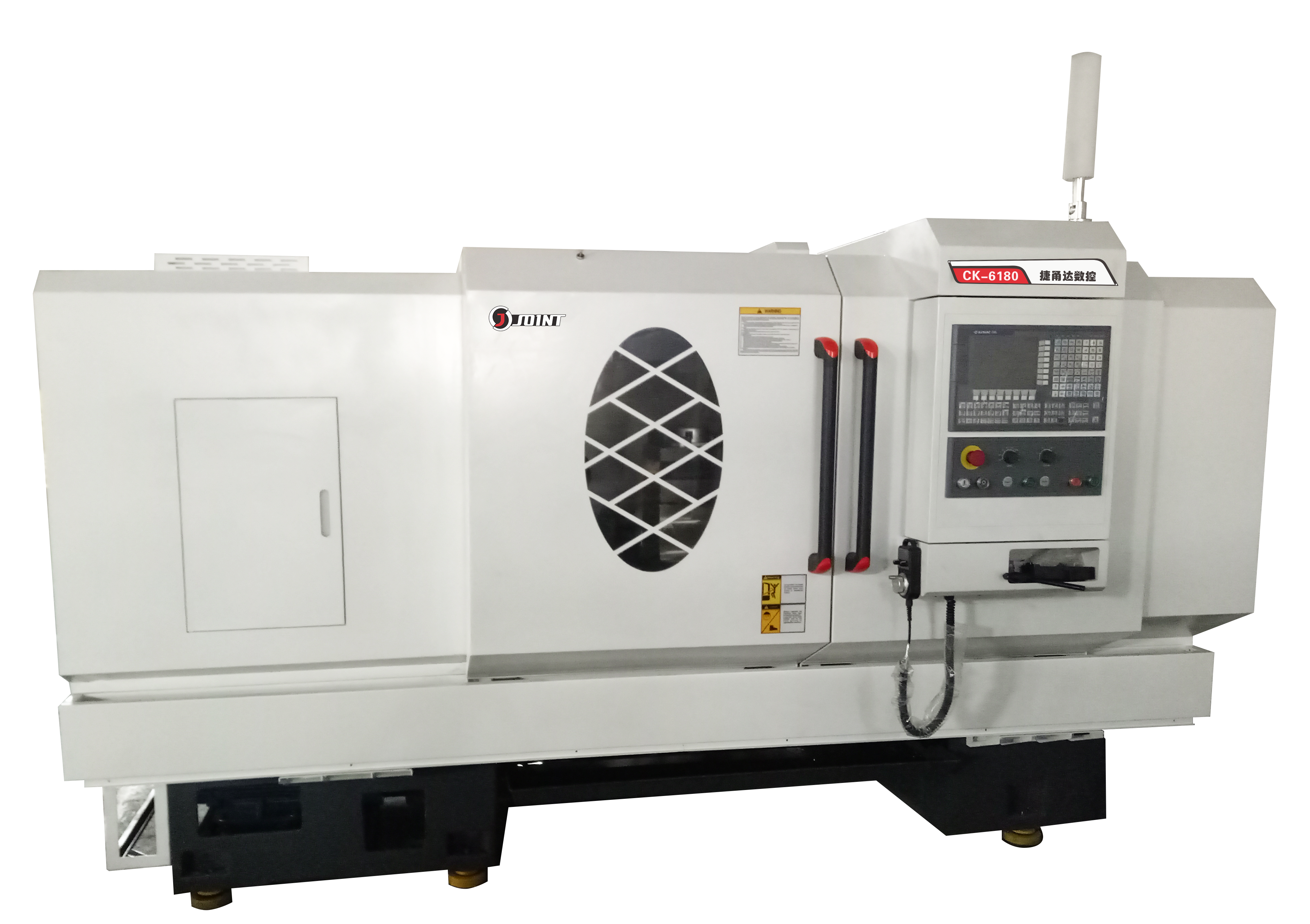

    CNC Horizontal Lathe Manufacturers CNC Lathe Price Fanuc/Siemens/Syntec 12t Slant Bed CNC Lathe Machine

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : CK-6180
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : L/C, T/T
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    CNC Horizontal Lathe Manufacturers CNC Lathe Price Fanuc/Siemens/Syntec 12t Slant Bed CNC Lathe Machine

    Product Characteristics:


    1. Integral bed, width of bed is 600mm


    2. Independent spindle, through hole is Ø104mm or Ø130mm


    3. 3-shift automatic gear-box, big torque output (3200Nm/11kw)


    4. Optimized structure, high rigidity, good accuracy and super stability


    Parameters sheet:

    ItemUnitCK-6180
    Main parametersMax swing diameter over bed (mm)mm800
    Center distancemm1500/3000
    Max processing length( one clip and one top)mm1350/2850
    Max turning diaDiskmm800
    Axismm520
    Max swing over slidemm520
    Spindle and chuck parametersSpindle speed range (automatic change)Low speedrpm11.25-80
    Medium speed31-220
    High speed125-800
    Spindle max output torqueNM3200(11lw)
    Spindle nose typeTypeA2-11
    Through bar diametermmØ104/(optional Ø130)
    Feed part parametersManual chuck and through holemmØ325(Ø100)
    Spindle motor powerkw15kw inverter motor
    Z axis guideway spanmm600
    X axis guideway spanmm310
    X axis travelmm420
    Z axis travelmm1500/3000
    X,Z axis rapid feed speedm/min4/8
    TrackX axis linear guide way specNM15
    Z axis linear guide way specNM22/38
    Knife towerElectric tool rest formType4 positions vertical type (optional with 6 positions horizontal type or gantry type)
    Tool specificationmm32*32
    Tai lstockTail stock quill diametermmØ100
    Tail stock quill travelmm250
    Tail stock quill tapermmMT-#5
    OtherMachine dimensionm4.5/6.0*2.1*2.0
    Package dimensionm4.7/6.2*2.3*2.4
    Gross weightTAbout5.9/6.9


    Standard accessories:


    1. GSK980TDI control system

    2. Independent spindle automatic three - speed transmission

    3. Chinese variable speed spindle motor, Ø104 spindle hole diameter

    4. 1500mm length 11kw variable speed spindle motor

    5. 3000mm length 15kw variable speed spindle motor

    6. Chinese 4 positions tool turret

    7. Tool and toolbox

    8. Leveling pad

    9. Ø315 manual 3-jaw chuck

    10. Fully closed cover

    11. Auto lubrication system

    12. Cooling system

    13. Hand unit

    14. Working light

    15. Manual tail stock

    16. Technical documents


    Optional accessories:


    1. 6 positions tool turret

    2. Hydraulic tailstock

    3. Manual solid chuck change to solid hydraulic chuk

    4. Solid hydraulic chuck change to hollow hydraulic chuck

    5. FANUC system

    6. Ø130 through hole spindle

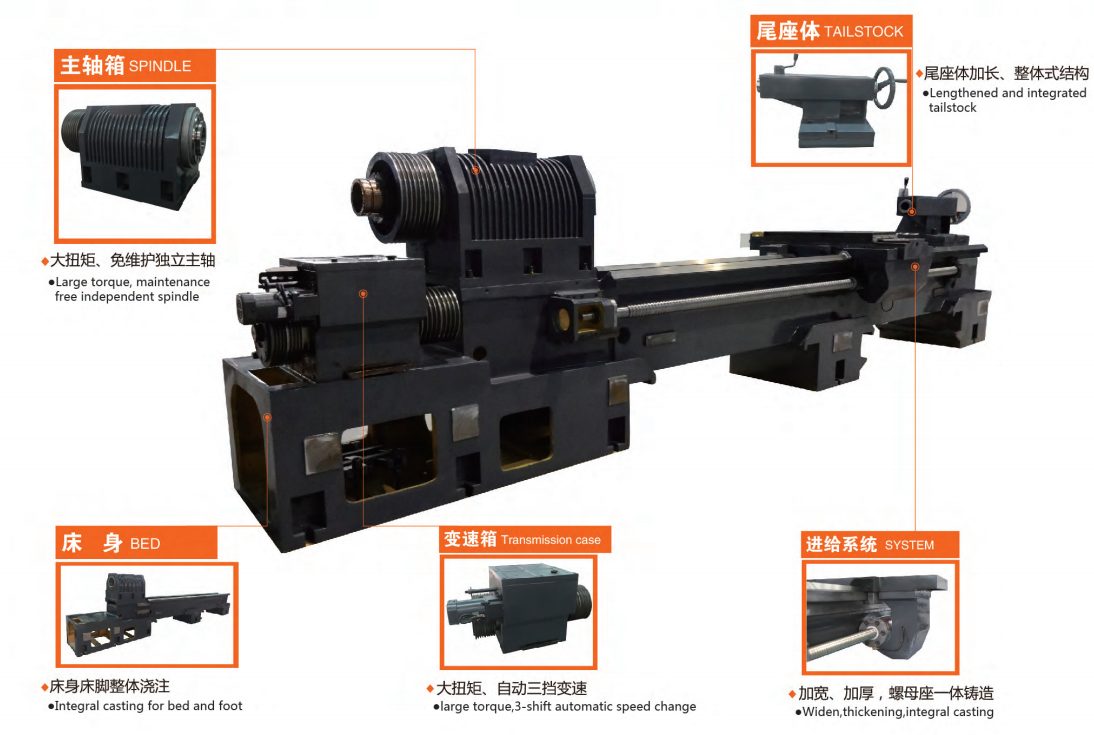

    Fuselage construction and characteristics:

    Spindle: large torque, maintenance free independent spindle

    Tail Stock: lengthened and integrated tailstock

    Bed: integral casting for bed and foot

    Transmission case: large torque, 3-shift automatic speed change

    System: widen, thickening, integral casting



    Overview:



    Quality CNC Horizontal Lathe Manufacturers CNC Lathe Price Fanuc/Siemens/Syntec 12t Slant Bed CNC Lathe Machine for sale
