    5.5kw 3000rpm Cnc Automated Lathe Machine Metal Cutting GSK Controller

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : CKI-6140
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 25 sets per month
    Delivery Time : 30-35 working day
    • Product Details
    • Company Profile

    5.5kw 3000rpm Cnc Automated Lathe Machine Metal Cutting GSK Controller

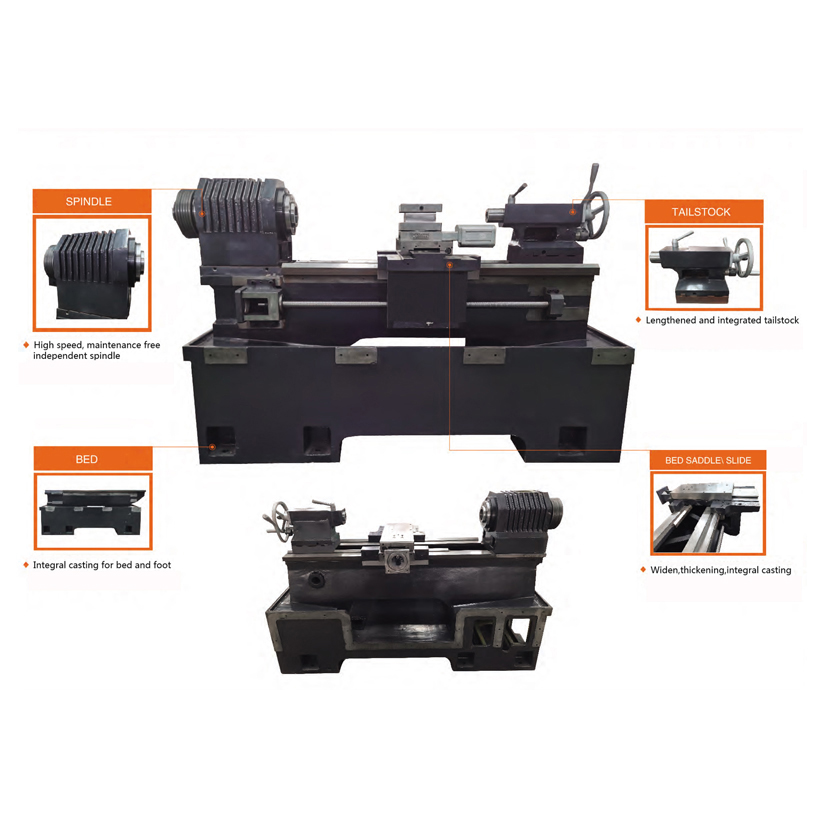

    Characteristics


    1. Integral casting for bed and foot.


    2. High rigidity, high precision, high speed independent spindle, through hole is ø66mm or ø87mm.


    3. Motor direct drive with variable speed.


    4. Optimized structure, good accuracy and super stability.


    Economical CNC Lathe Machine


    ItemUnitSpecification
    CKI-6140
    Main parameterMax. swing over bedmm410
    Center distancemm750/1000
    Maximum processing length (from chuck to center)mm600/850
    Max.tuming diameterDiskmm400
    Axismm200
    Max. swing over slidemm200
    Spindle and chuck parametersSpindle speed (Variable)rpm100-3000/100-2500
    Spindle max output torqueNM70 (5.5kw)
    Spindle nose typetypeA2-6
    Through bar diametermmø66
    Manual chuck and through holemmø200 (ø65)
    Spindle motor powerkw5.5 Variable Frequency Motor (Optional Servo Motor)
    Feed part parametersSpacing of guide rail for Z axismm340
    Spacing of guide rail for X axismm200
    X axis strokemm220
    Z axis strokemm620/870
    X/Z axis rapid feed speedm/min6/8
    X axis servo motor torqueNM5
    Z axis servo motor torqueNM7.5
    Knife towerElectric tool rest formtype4-station vertical type (Optional 6-station horizontal type or knife arrangement)
    Tool specificationmm20*20
    TailstockTailstock quill diametermmø60
    Tailstock quill strokemm120
    ShapeTailstock quill tapermmMT-#4
    Mechanical dimensions (L*W*H)m2.0/2.3*1.5*1.7
    Weightt2.0/2.3

    Standard accessories:


    1. GSK controller system
    2. Spindle and motor
    3. Four position tool turret
    4. Three jaw manual chuck
    5. Working light
    6. Lubrication system
    7. Level pad
    8. Tool and tool box
    9. Operation manual
