    CNC 87mm Through Hole Horizontal Lathe Machine 5.5kw Integral Casting

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : CK-6140
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : L/C, T/T
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    CNC 87mm Through Hole Horizontal Lathe Machine 5.5kw Integral Casting

    Characteristics:


    1.Integral casting for bed and foot


    2. High rigidity, high precision, high speed independent spindle, through hole is Ø66mm or Ø87mm


    3. Motor direct drive with variable speed


    4. Optimized structure, good accuracy and super stability.


    Parameters sheet:


    ItemUnitModel
    Main parametersMax swing diameter over bed (mm)mm410
    Center distancemm750/1000
    Max processing length (from chuck to center)mm600/850
    Max turning diaDiskmm400
    Axismm200
    Max swing over slidemm200
    Spindle and chuck parametersSpindle speed (variable)mm100-3000/100-2500
    Spindle max output torqueNM70(5.5kw)/95(7.5kw)
    Spindle nose typeTypeA2-6/A2-8
    Through bar diametermmØ66/Ø87
    Manual chuck and through holemmØ200(Ø65)
    Spindle motor powerkw5.5/7.5kw inverter motor
    Feed part parametersZ axis guideway spanmm340
    X axis guideway spanmm200
    X axis travelmm220
    Z axis travelmm620/870
    X,Z axis rapid feed speedm/min6/8
    X axis servo motor torqueNM5
    Z axis servo motor torqueNM7.5
    Knife towerElectric tool rest formType

    4 positions vertical type

    (optional with 6 positions horizontal type or gantry type)

    Tool specificationmm20*20
    TailstockTailstock quill diametermmØ60
    Tailstock quill travelmm120
    Tailstock quill tapermmMT-#4
    OtherMachine dimensionm2/2.3*1.5*1.7
    Package dimensionm2.3/2.5*1.7*1.9
    Gross weightTAbout2.0/2.3


    Standard accessories:


    1. GSK TC3 control system; 5.5kw spindle servo motor; A2-6 spindle Ø66 spindle hole; 750 length

    2. 4 positions tool turret

    3. Tool and toolbox

    4. Leveling pad

    5. Ø200 manual 3-jaw chuck

    6. Fully closed cover

    7. Auto lubrication system

    8. Cooling system

    9. Hand unit

    10. Working light

    11. Manual tailstock

    12. Technical documents


    Optional accessories:


    1. 6 positions tool turret

    2. Hydraulic tailstock

    3. Manual solid chuck change to solid hydraulic chuk

    4. Solid hydraulic chuck change to hollow hydraulic chuck

    5. FANUC system


    Fuselage characteristics:

    Spindle: High speed, maintenance free independent spindle

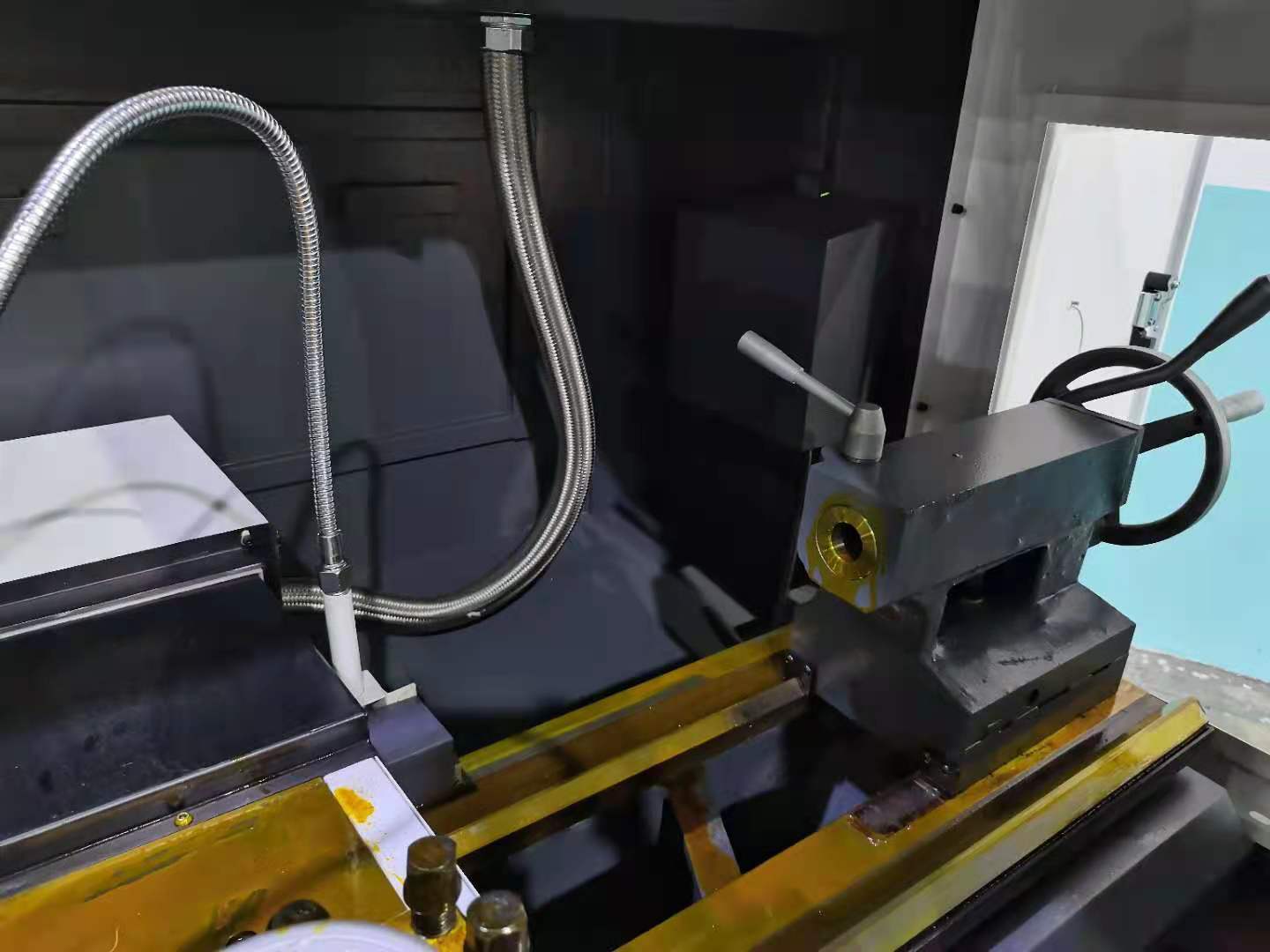

    Tailstock: Lengthened and integrated tailstock


    Bed: Integral casting for bed and foot


    Bed Saddle: Widen, thickening, integral casting
