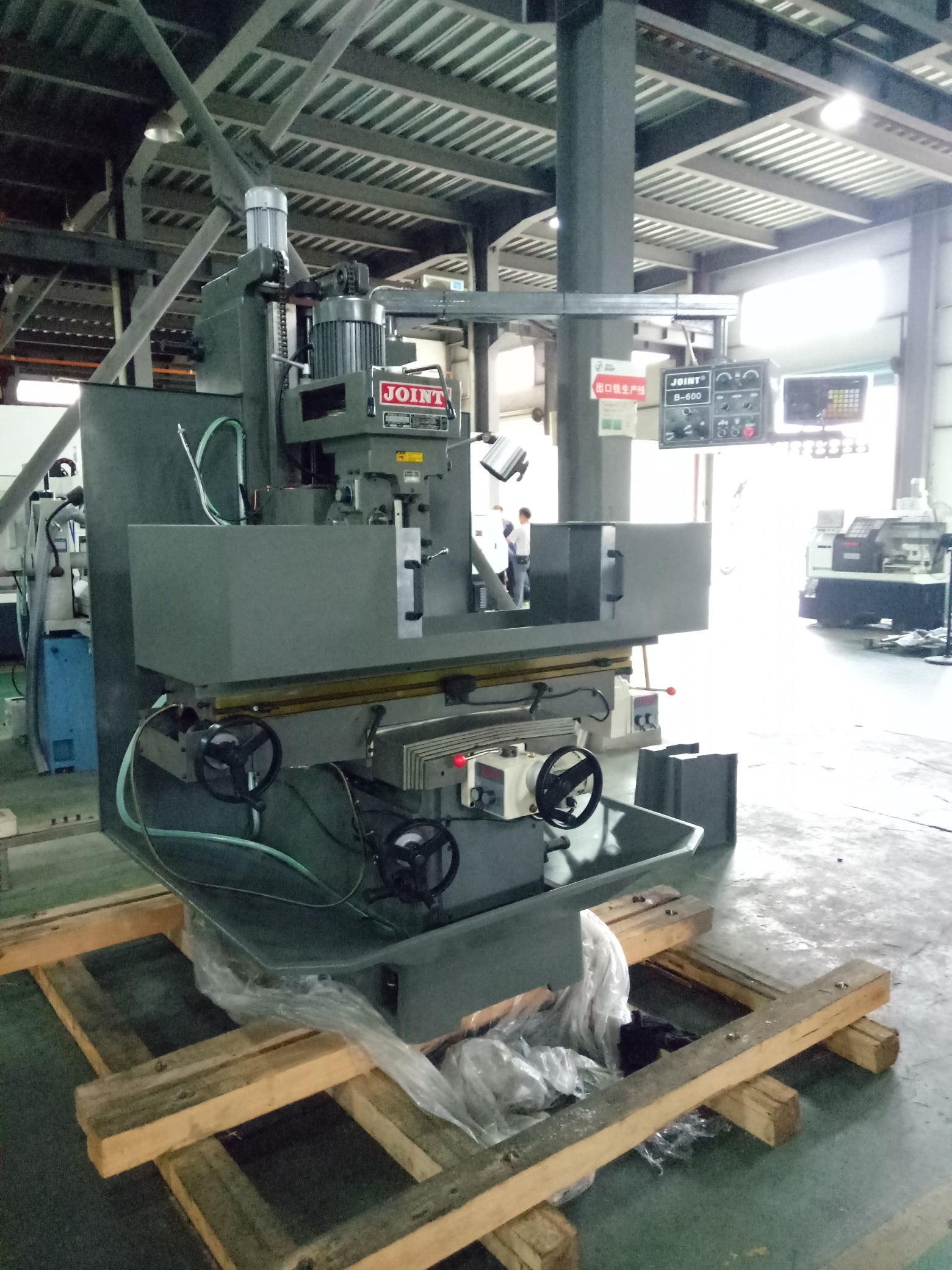

    Boring Turret Milling Machine 150mm Spindle Bed Type 5HP

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : B600
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : T/T, L/C
    Supply Ability : 30 SETS/MONTH
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    Boring Turret Milling Machine 150mm Spindle Bed Type 5HP

    Product Characteristics!

    1. Bed milling machine, high rigidity and large bearing capacity.
    2. Taiwan original precision milling head, ball screw, NSK P4 precision spindle bearing.
    3. Spindle tolerance: 0.002mm.
    4. Three axis adopt precision ball screw, with run fast and high accuracy in positioning.
    5. Suitable for heavy and large workpiece (800-1000kg) processing.
    6. Bed structure, Meehanite cast iron and high rigid structure design.


    Specification:


    ModelB600SC
    Table sizemm1370*405
    TravelX axismm1000
    Y axismm350
    Z axismm520
    Travel of spindle quillmm140
    Maximum distance from spindle nose to tablemm640
    SpindleRotation speed
    (Step speed milling head)
    50HZrpm58-3000
    60HZrpm70-3600
    Rotation speed
    (Variable speed milling head)
    50HZrpm58-3250
    60HZrpm70-3900
    Rotation speed
    (Inverter speed milling head)
    50HZrpm0-4200
    60HZrpm0-4200
    TaperNT40
    Rated powerHP7.5HP
    Tilt angleForward and Backward
    Left and Right±90°
    Dimensionmm2000*2230*2150
    Net weightkg2900

    Standard accessories:

    1. Taiwan original step speed milling head
    2. X/Y axis mechanical feed
    3. Z axis elevator motor
    4. Clamping kit
    5. NT40 milling chuck
    6. Working light
    7. Draw bar
    8. Oil pump
    9. Manual operation
    10. Guide way cover
    11. Tool and tool box


    Optional accessories:




    Company Profile:

    Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.
    There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine
    Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !
