Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper

    Buy cheap Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper from wholesalers

    Buy cheap Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper from wholesalers
    • Buy cheap Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper from wholesalers

    Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : 4VB
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : L/C, T/T
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper

    Product main advantages:


    1. Spindle tolerance: 2μ.
    2. Tw
    ice precision scraping can ensure processing quality.
    3. Taiwan original milling head, Japan NSK P4 precision spindle bearing.

    4. We are a manufacturer of turret milling machine since 1995. We started at the very first begining of it.

    And we were once honored by Ten Top Brand.


    It is suitable for precision electronic machinery, presicion electronic devices, mold parts and other precision parts of the hole, groove, frame.


    Specification:

    Model4VB
    Table sizemm1270*254*90
    TravelX axismm900
    Y axismm440
    Z axismm390
    Travel of spindle quillmm127
    Maximum distance from spindle nose to tablemm420
    SpindleRotation speed
    (Step speed milling head)
    50HZrpm60-4530 (16 grade)
    60HZrpm80-5440 (16 grade)
    Rotation speed
    (Variable speed milling head)
    50HZrpm50-3500
    60HZrpm60-4200
    Rotation speed
    (Inverter speed milling head)
    50HZrpm0-4200
    60HZrpm0-4200
    TaperR8 (NT30)
    Rated powerHP3HP
    Tilt angleForward and Backward±45°
    Left and Right±90°
    Dimensionmm1500*1700*2150
    Net weightkg1350

    VA series standard accessorie:


    1. Taiwan original step milling head

    2. Working light

    3. Guideway cover

    4. M12 clamping kit

    5. R8 collet (7 pcs)

    6. Draw bar

    7. Manual oil pump

    8. Accompanied toolbox


    Optional accessories:


    1. 6'' or 8'' vise

    2. Electric power feed (2 axis and 3 axis)

    3. Mechnical power feed (2 axis and 3 axis)

    4. Water pump+water tray

    5. Dro(2 axis or 3 axis)


    Overview:

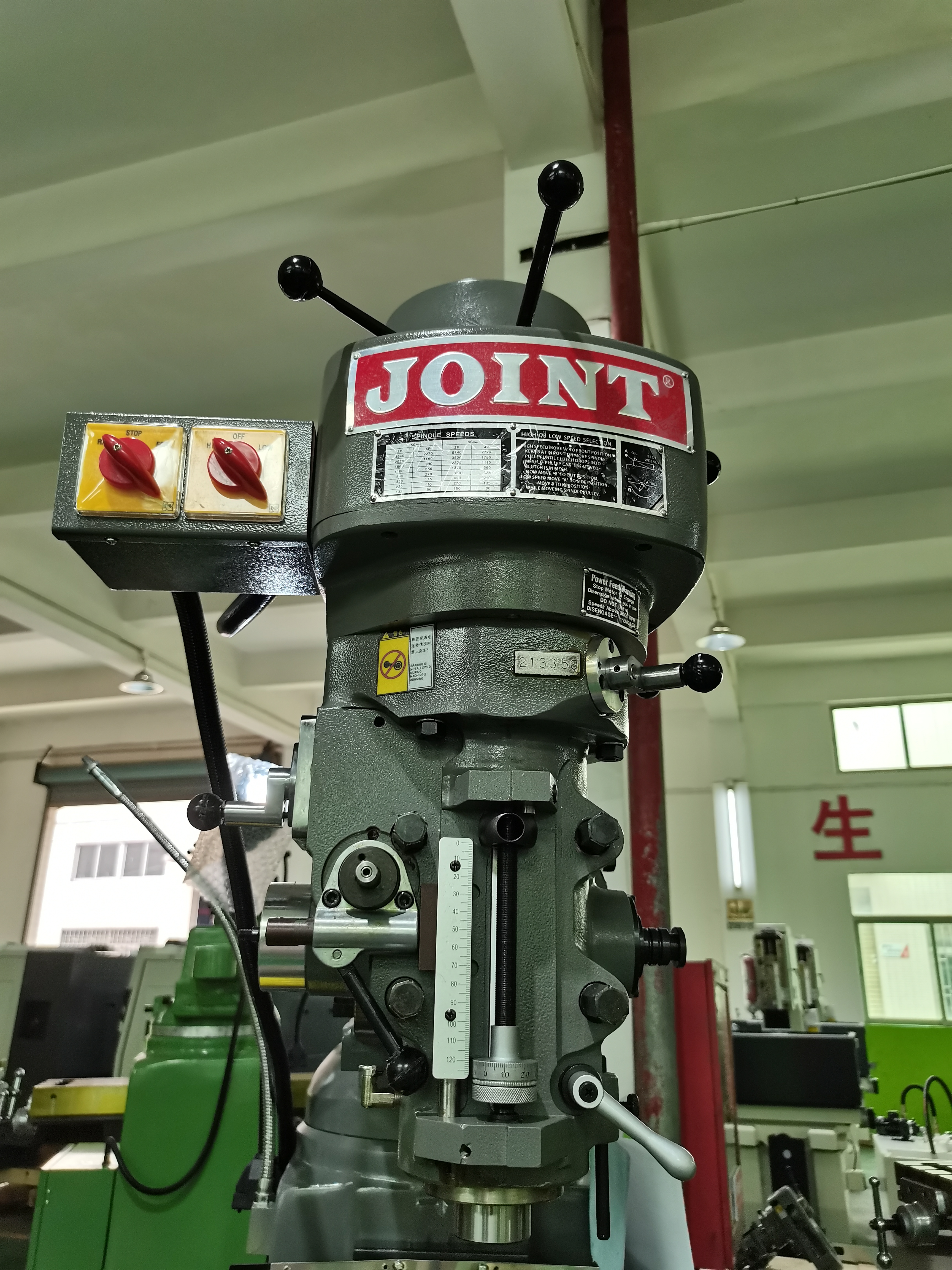

    Original milling head and double switch


    Electrical power feed (can provide Sinno brand and ALONG brand)


    Milling machine with water tray and plate



    Package:
