    1524×360mm Table Vertical Milling Machine Ball Screw For Guideway Cover

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : 8VA
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : L/C, T/T
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    1524×360mm Table Vertical Milling Machine Ball Screw For Guideway Cover

    Key Advantages:

    1. This series of milling machine is suitable for precision electronic machinery, precision electronic components, mold accessories and other precision parts of the hole, slot, frame.

    2. Before fuselage assembling, there will be s
    econd time precison scraping assembly process to ensure the precision grade of the machine

    3. This series milling head is high quality Taiwan original milling head, Japan NSK P4 level preicision spindle bearing.

    4. 300mm spindle detection rod section runout is 0.02mm.


    Specification:

    Model8VA
    Table sizemm1524*360*99
    TravelX axismm1150
    Y axismm500
    Z axismm500
    Travel of spindle quillmm140
    Maximum distance from spindle nose to tablemm690
    SpindleRotation speed
    (Step speed milling head)
    50HZrpm60-3000 (10 grade)
    60HZrpm70-3600 (10 grade)
    Rotation speed
    (Variable speed milling head)
    50HZrpm60-3250
    60HZrpm70-3900
    Rotation speed
    (Inverter speed milling head)
    50HZrpm0-4200
    60HZrpm0-4200
    TaperNT40
    Rated powerHP5HP (7.5HP Optional)
    Tilt angleForward and Backward0° (±45° Optional)
    Left and Right±90°
    Dimensionmm2300*2000*2900
    Net weightkg2900

    VA series standard accessorie:


    1. Taiwan original step milling head

    2. Working light

    3. Guideway cover

    4. M12 clamping kit

    5. R8 collet (7 pcs)

    6. Draw bar

    7. Manual oil pump

    8. Accompanied toolbox


    Optional accessories:


    1. 6'' or 8'' vise

    2. Electric power feed (2 axis and 3 axis)

    3. Mechnical power feed (2 axis and 3 axis)

    4. Water pump+water tray

    5. Dro(2 axis or 3 axis)

    6. Variable speed milling head

    7. Inverter speed milling head

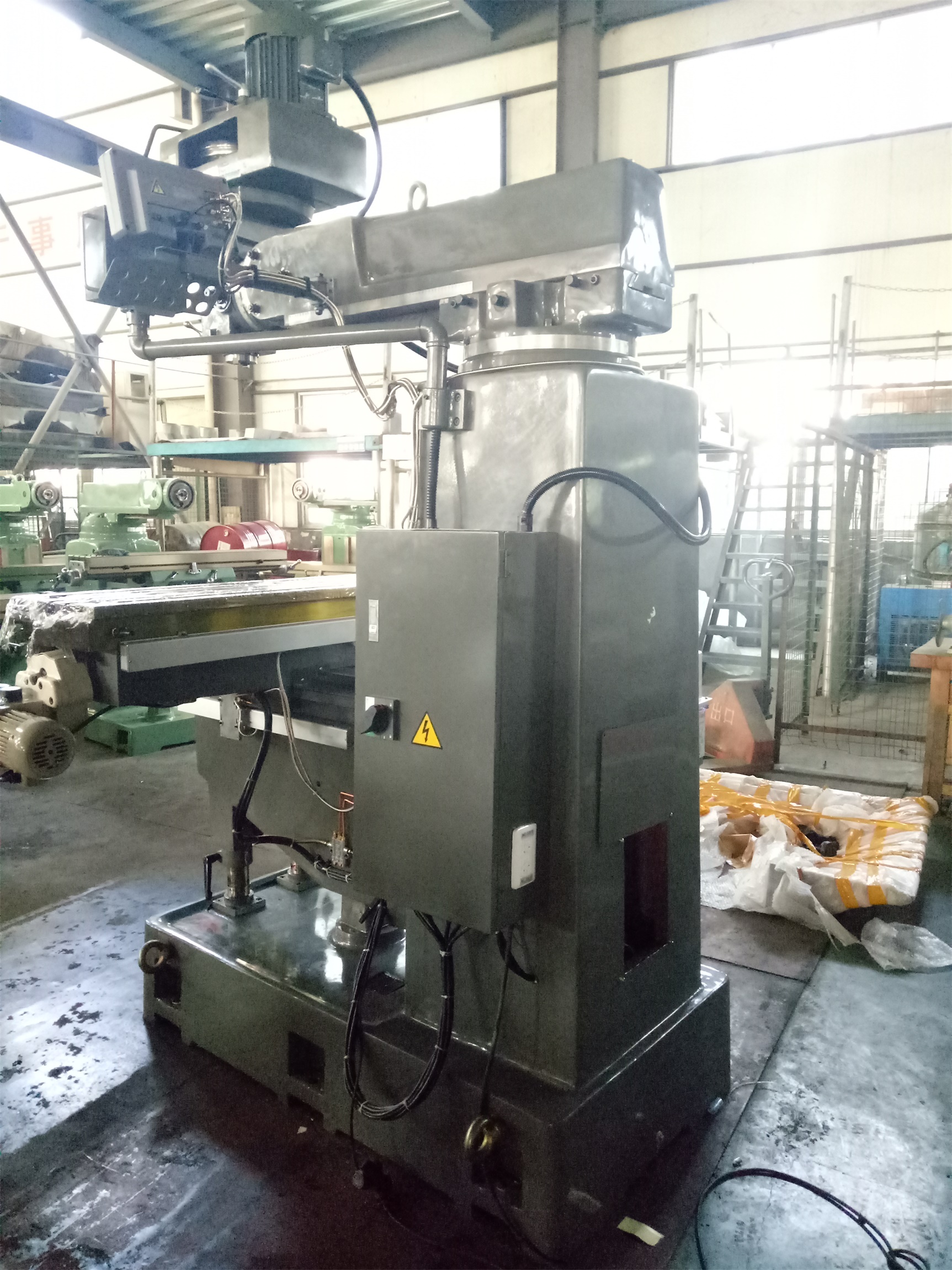

    Overview:



    For reference, the accessories is different.


    Package:




    Quality 1524×360mm Table Vertical Milling Machine Ball Screw For Guideway Cover for sale
