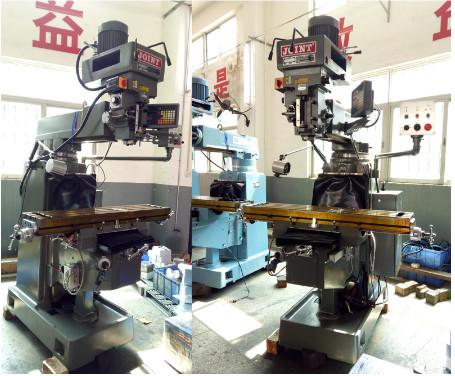

    NT40 Spindle Benchtop Milling Machine NSK P4 Metal Conventional 5VB 3900rpm

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : 5VB
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : L/C, T/T
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    NT40 Spindle Benchtop Milling Machine NSK P4 Metal Conventional 5VB 3900rpm

    High quality castings, precision processing to ensure excellent precision and stability:


    This series milling machine spindle tolerance can reach 2μ, 0.002mm.

    The fuselage will be scrapped twice before assembling in otder to reach our inner strict standard.
    This series milling head is Taiwan original milling head and its bearing is Japan NSK P4 precision spindle bearing.

    This series is suitable for precision electronic machinery, presicion electronic devices, mold parts and other precision parts of the hole, groove, frame.


    Specification:

    Model5VB
    Table sizemm1470*305*90
    TravelX axismm810
    Y axismm415
    Z axismm420
    Travel of spindle quillmm150
    Maximum distance from spindle nose to tablemm620
    SpindleRotation speed
    (Step speed milling head)
    50HZrpm70-3600 (10 grade)
    60HZrpm70-3600 (10 grade)
    Rotation speed
    (Variable speed milling head)
    50HZrpm60-3250
    60HZrpm70-3900
    Rotation speed
    (Inverter speed milling head)
    50HZrpm0-4200
    60HZrpm0-4200
    TaperNT40
    Rated powerHP5HP
    Tilt angleForward and Backward0° (±45° optional)
    Left and Right±90°
    Dimensionmm1500*1900*2450
    Net weightkg1800

    VA series standard accessorie:


    1. Taiwan original step milling head

    2. Working light

    3. Guideway cover

    4. M12 clamping kit

    5. R8 collet (7 pcs)

    6. Draw bar

    7. Manual oil pump

    8. Accompanied toolbox


    Optional accessories:


    1. 6'' or 8'' vise

    2. Electric power feed (2 axis and 3 axis)

    3. Mechnical power feed (2 axis and 3 axis)

    4. Water pump+water tray

    5. Dro(2 axis or 3 axis)




    Overview:


    Package:
