    Vertical Turret Industrial Milling Machine 5440rpm 3VA 3HP For Metals

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : 3VA
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : L/C, T/T
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

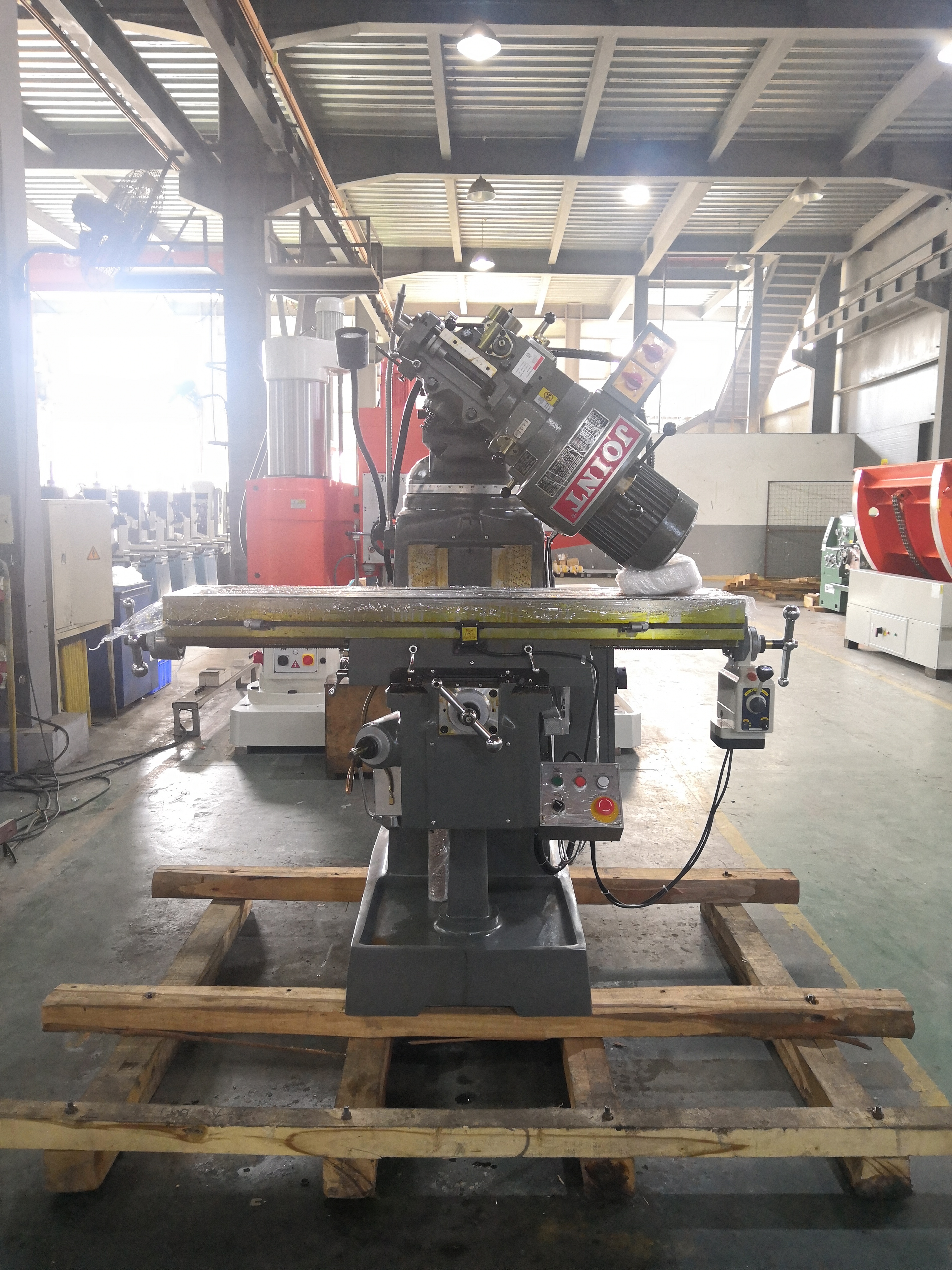

    Vertical Turret Industrial Milling Machine 5440rpm 3VA 3HP For Metals

    Main advantages:


    1. Spindle tolerance: 0.002mm; 2μ.
    2. High quality casting,
    twice precision scraping can ensure processing quality.
    3. Taiwan original milling head, Japan NSK P4 precision spindle bearing.

    4. We are a manufacturer of turret milling machine since 1995. We are very professional.


    This series is suitable for electronic parts, holes, slots, frames and mold processing which require high precision processing.


    Specification:

    Model3VA
    Table sizemm1270*254*90
    TravelX axismm880
    Y axismm395
    Z axismm340
    Travel of spindle quillmm127
    Maximum distance from spindle nose to tablemm400
    SpindleRotation speed
    (Step speed milling head)
    50HZrpm60-4530 (16 grade)
    60HZrpm80-5440 (16 grade)
    Rotation speed
    (Variable speed milling head)
    50HZrpm50-3500
    60HZrpm60-4200
    Rotation speed
    (Inverter speed milling head)
    50HZrpm0-4200
    60HZrpm0-4200
    TaperR8 (NT30)
    Rated powerHP3HP
    Tilt angleForward and Backward±45°
    Left and Right±90°
    Dimensionmm1500*1700*2150
    Net weightkg1280

    VA series standard accessorie:


    1. Taiwan original step milling head

    2. Working light

    3. Guideway cover

    4. M12 clamping kit

    5. R8 collet (7 pcs)

    6. Draw bar

    7. Manual oil pump

    8. Accompanied toolbox


    Optional accessories:


    1. 6'' or 8'' vise

    2. Electric power feed (2 axis and 3 axis)

    3. Mechnical power feed (2 axis and 3 axis)

    4. Water pump+water tray

    5. Dro(2 axis or 3 axis)


    Overview:
