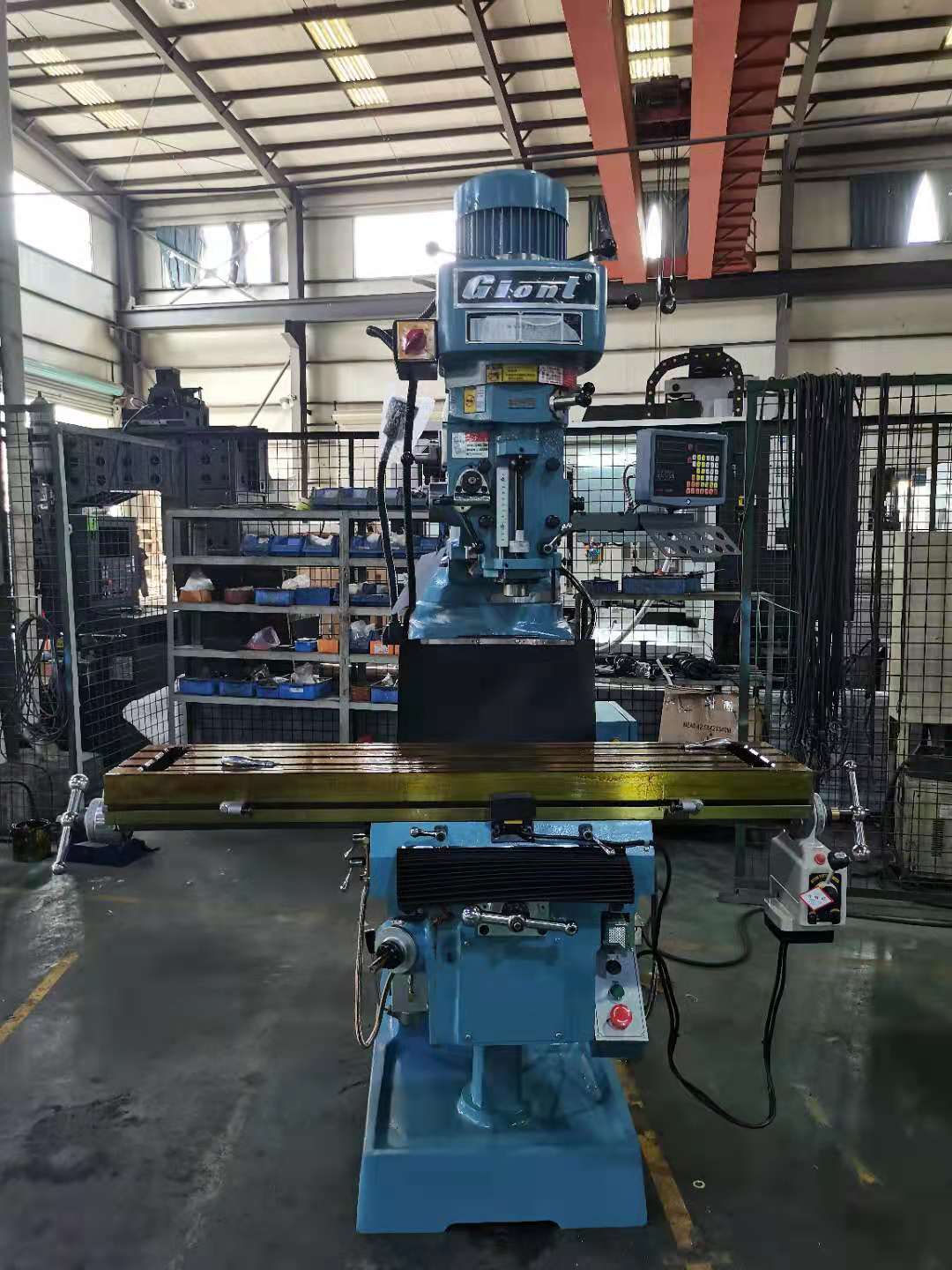

    3HP Vertical R8 Taper Turret Milling Machine 4SA Joint Manual Operation For Metal

    Product Introduction:


    This S series type of milling machine is our second level. Using Taiwan parts, assembled by ourselves with strict assembling standard. If you don't have enough budget for VA series, but want high precision level machine. You can choose this type.

    Suitable for the manufacture and processing of precision plastic and hardware moulds and parts processing in other strong cutting occasions.

    4SA working table is larged, 1370*280mm, comparing with 4S.


    Parameters Sheet:


    Model4SA
    Table sizemm1370*280*90
    TravelX axismm1000
    Y axismm410
    Z axismm325
    Travel of spindle quillmm127
    Maximum distance from spindle nose to tablemm470
    SpindleRotation speed
    (Step speed milling head)
    50HZrpm66-4540
    60HZrpm80-5440
    Rotation speed
    (Variable speed milling head)
    50HZrpm40-3125
    60HZrpm50-3750
    Rotation speed
    (Inverter speed milling head)
    50HZrpm0-4200
    60HZrpm0-4200
    TaperR8(NT30)
    Rated powerHP3HP
    Tilt angleForward and Backward±45°
    Left and Right±90°
    Dimensionmm1500*1800*2200
    Net weightkg1550


    Standard Accessories:


    1. Taiwan original step speed milling head
    2. Working light
    3. Draw bar
    4. Maual oil pump
    5. Manual operation
    6. Guide way cover
    7. Tool and tool box
    8. Clamping kits
    9. Milling chuck (7pcs)


    Optional accessories:


    1. Water pump


    2. M12 clamping kits


    3. 6' vise


    4. X axisp ower feed or Y axis power feed or Z axis elevating motor


    5. X/Y two axis/ X/Y/Z three axis DRO



    Power feed R8 milling chuck (7 pcs) Water tray
