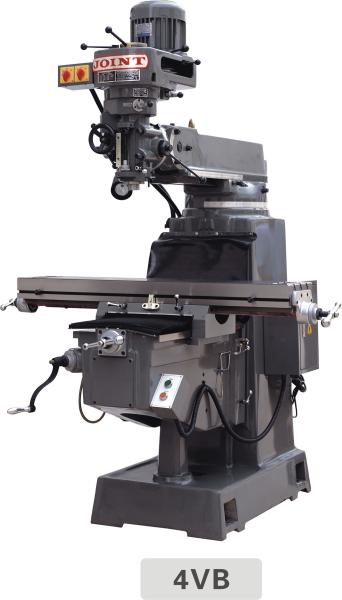

    Joint Brand Taiwan Head Turret Mill Machine for Sale Manufacturer

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : 4VB
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : TT/LC
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    Joint Brand Taiwan Head Turret Mill Machine for Sale Manufacturer

    High quality castings, precision processing to ensure excellent precision and stability

    Machine fuselage is strengthened, and its milling head is Taiwan original milling head. Its bearing is Japan NSK P4 level high precision bearing. Spindle tolerance is high up to 0.002mm.

    This series is super good. And our brand JOINT is famous even oversea. We exported lots of milling machine.

    .


    Parameters Sheet:


    Model4VB
    Table sizemm1270*254*90
    1370*254*90
    TravelX axismm900
    Y axismm440
    Z axismm390
    Travel of spindle quillmm127
    Maximum distance from spindle nose to tablemm420
    SpindleRotation speed
    (Step speed milling head)
    50HZrpm60-4530 (16 grade)
    60HZrpm80-5440 (16 grade)
    Rotation speed
    (Variable speed milling head)
    50HZrpm50-3500
    60HZrpm60-4200
    Rotation speed
    (Inverter speed milling head)
    50HZrpm0-4200
    60HZrpm0-4200
    TaperR8 (NT30)
    Rated powerHP3HP
    Tilt angleForward and Backward±45°
    Left and Right±90°
    Dimensionmm1500*1700*2150
    1600*1800*2150
    Net weightkg1500


    Standard Accessories:


    1. Working light


    2. Way cover


    3. R8/3HP spindle Taiwan parts step speed milling head


    4. R8 inch draw bar


    5. Technical document


    6. Accompanied toolbox


    7. M12 clampking kit


    8. R8 milling chuck(7 pcs)


    Optional accessories:


    1. R8 (7 pcs) milling chuck


    2. M12 clamping kits


    3. 6' vise


    4. X axisp ower feed or Y axis power feed or Z axis elevating motor


    5. X/Y two axis/ X/Y/Z three axis DRO


    Package:
