Brand Name : | JOINT |
Model Number : | B600 |
Certification : | ISO9001 |
Price : | Negotiation |
Payment Terms : | L/C, T/T |
Supply Ability : | 25 sets per months |
Delivery Time : | 15-20 working days |

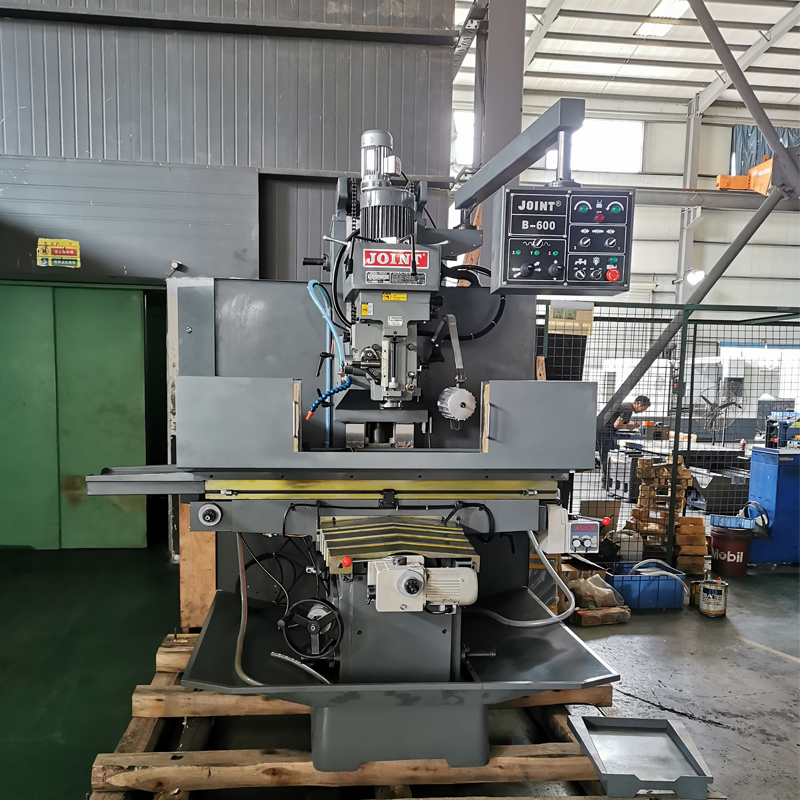

High-precision component milling and boring machine
1. Bed milling machine, high rigidity and large bearing capacity.
2. Taiwan original precision milling head, ball screw, NSK P4
precision spindle bearing, spindle tolerance 0.002mm.
3. Three axis adopt precision ball screw, with run fast and high
accuracy in positioning.
4. Suitable for heavy and large workpiece (800-1000kg) processing.
5. Bed structure, Meehanite cast iron and high rigid structure
design.
Specification
Model | B600 | ||
Table size | mm | 1370*405 | |
Travel | Longitude (X) | mm | 1000 |
Crossward (Y) | mm | 350 | |
Vertical (Z) | mm | 640 | |
Travel of spindle quill | mm | 150 | |
Max. distance from the spindle nose to table | mm | 760 | |
Spindle | Rotation speed | 50HZ rpm | 58-3000 |
60HZ rpm | 70-3600 | ||
Rotation speed | 50HZ rpm | 58-3250 | |
60HZ rpm | 70-3900 | ||
Rotation speed | 50HZ rpm | 0-4200 | |
60HZ rpm | 0-4200 | ||
Taper | NT40 | ||
Rated power | HP | 5HP | |
Tilt angle | Forward and backward | 0° | |
Left and right | ±90° | ||
Dimension | mm | 2000*2230*2150 | |
Net weight | kg | 2800 |
Standard accessories:
1. Taiwan original step speed milling head
2. X/Y axis M power feed
3. Z axis elevotor motor
4. Clamping kit
5. NT40 milling chuck (7pcs)
6. Working light
7. Draw bar
8. Oil pump
9. Manual operation
10. Guide way cover
11. Tool and tool box
![]() |
