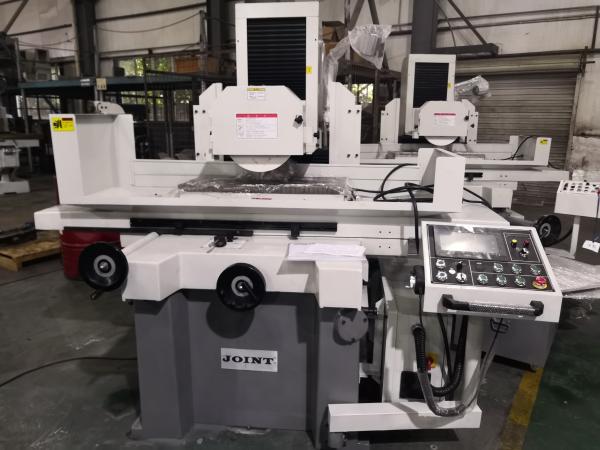

Hydraulic Automatic Surface Grinding Machine X / Y Axis

    Buy cheap Hydraulic Automatic Surface Grinding Machine X / Y Axis from wholesalers

    Buy cheap Hydraulic Automatic Surface Grinding Machine X / Y Axis from wholesalers
    • Buy cheap Hydraulic Automatic Surface Grinding Machine X / Y Axis from wholesalers
    • Buy cheap Hydraulic Automatic Surface Grinding Machine X / Y Axis from wholesalers
    • Buy cheap Hydraulic Automatic Surface Grinding Machine X / Y Axis from wholesalers
    • Buy cheap Hydraulic Automatic Surface Grinding Machine X / Y Axis from wholesalers

    Hydraulic Automatic Surface Grinding Machine X / Y Axis

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : 84MSI
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : TT/LC/DA/DP
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    Hydraulic Automatic Surface Grinding Machine X / Y Axis

    800*400mm X/Y axis with hydraulic automatic Z axis with servo motor surface grinding machine 84MSI PLC program control


    Feature


    1. Imported high accuracy grinding head.


    2. Hydraulic system ensure high precision of machine and high stability of operational.


    3. High precision and corrosion resisting.


    4. Our custom-made machines with competitive price and the excellent service have gained us a great reputation from domestic and foreign customers.


    5. Suitable to grinding surface and complex form surface by form dressed whell.


    Standard accessories


    1.PLC program control

    2.Magnetic controller

    3.Leveling pad and bolt

    3.Electric magnetic chuck with damagnetic

    4.Grinding wheel

    5.Wheel flange and extractor

    6.Coolant system

    7.Wheel balancing arbor

    8.Banlance bar

    9. Wheel diamand tip and holder

    10.Working light

    11.Tool and tool box

    12.Technical document

    Model84MSI
    Table Size800*400mm
    X/Y travel840/420mm
    Table slide waySlide way
    Max distance from spindle center to worktable700
    Auto crossward feed0.1-8mm
    Crossward feed of hand wheel 1 Rev0.1/1mm
    Crossward feed of hand wheel 1 Div0.001/0.01mm
    Auto vertical feed0.001-0.999mm
    Vertical rapid moving feed0.001-0.999mm
    Vertical feed of hand wheel 1 Rev0.01/1mm
    Vertical feed of hand wheel 1 Div0.001/0.1mm
    Rotation speed1450
    Grinding wheel sizeφ355*(20-45)*φ127
    Spindle motor7.5*4
    Hydraulic motor3*6
    Crossward driven motor9*4
    Vertical driven motor1*4
    Coolant pump motor0.12*2
    Dimension2300*3850*1980mm
    Net weight3000kg

    * X/Y axis with hydraulic automatic Z axis with servo motor control.


    For more details, welcome to contact with us by clicking here.


    Precision machinery manufacturer since 1995.

    Your reliant expert on moulding and machining equipemnt!


    Q1. How can I get a quotation?
    A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.


    Q2. Can you provide customized machine or SPM (Special purpose machine)?

    A. Yes, we provide smart solutions for our customer, in order to increase efficiency.


    Q3. Can you provide training for operation CNC machines?

    A. Yes, free training in our factory is available.


    Q4. How about your price?

    A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.


    Q5. What's your warranty terms?
    A. We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your Joint sales representative for details.


    Q6. What’s the delivery time, and what’s the package?

    A. Normally the delivery time is about 15 days if the goods are in stock, 35 days if the goods are not in stock. All our machinery are packed with sea worthy package.
