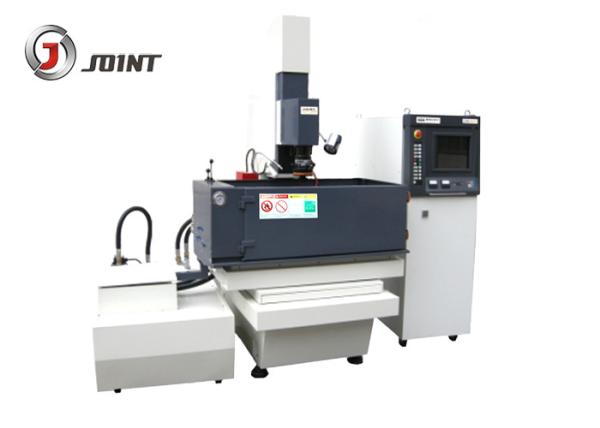

HIgh Accuracy Industrial Spark Erosion Machine 17000 Kilograms Net Weight

    Buy cheap HIgh Accuracy Industrial Spark Erosion Machine 17000 Kilograms Net Weight from wholesalers

    Buy cheap HIgh Accuracy Industrial Spark Erosion Machine 17000 Kilograms Net Weight from wholesalers
    • Buy cheap HIgh Accuracy Industrial Spark Erosion Machine 17000 Kilograms Net Weight from wholesalers

    HIgh Accuracy Industrial Spark Erosion Machine 17000 Kilograms Net Weight

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : CNC2590N
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : TT/LC/DA/DP
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    HIgh Accuracy Industrial Spark Erosion Machine 17000 Kilograms Net Weight


    CNC EDM machine CNC2590N


    1. Have functions as Automatic Monitoring Level, Infra-red flame detecting, depth alarm and cutting off electricity, finding the central point.


    2. Adopt the MOSFET electrocircuit, with high speed processing


    3. Have the positive-negative switch function. Anti-fighting functions can also be added to process particular molds.


    4. making the modular surface more smooth and the fineness degree better


    5. Dielectric fluid nozzles built in machine head that efficiently removes debris, saves time and is convenient.


    6.Able to process deep holes, blind holes, lateral and large area machining



    Dtails::


    1. Designed for automatic sludge discharge and carbon deposits alarm.


    2.Designed by using computers to analyze the tensile, compressive capability and response strength


    3.The colored pictures are formed by a dozen colors. which can be changed freely according to your preferences, making the pictures more original.


    4. Adopt most advanced industrial motherboard, with good function and high stability,


    5.The castings are produced using FC-35 resin sand, and are durable without changing


    6. its accuracy after natural weathering and different processing.


    7. Only by entering several parameters like the depth of Z axis


    Basic Functions:


    1. IBy using CAD, the machines are nondeforming after a long-time processing


    2. In electro-discharge machining, you can change the discharge parameter at any time without affecting the machining


    3. The slide rail adopts V-shape and horizontal alignment.


    4. with unlimited automatic discharge and program setting, you can choose any selection for machining


    5. After high wave echo heat treatment, the work surface has a good wear-resistance.



    Engine specification:

    ModelCNC2590N
    Size of oil container

    3800*1800*650mm

    Table size2700*1200mm
    X axis travel2500mm
    Y axis travel900MM
    Z axis travel600mm
    Electrode head
    Max distance from the electrode head to table1305mm
    Max load of electrode head450kg
    Max load of table10000kg
    Dimension

    4340*5200*3690mm

    Net weight15000Kg
    Filter container cube--
    Filter container net weight--


    Electric cabinet specification

    ModelCNC Machine
    Control mode and axis No.

    NC with close circuit/XY, and Z axis control

    Min setting value0.005mm
    Max setting value9999.995mm
    Coordination systemINC ABS
    Screen15'' FTT
    Control systemIndustrial PC
    Moving velocity of controller0.005mm per unit*1, *5, *10
    Procedure in store0-999 groups
    Max current for processing50/75/100A
    Input rated power5/6/10KVA
    Max cutting processing speed360/56/700mm²/min
    Consumption of electrode head<0.2%
    Best surface rough0.25
    Dimension620*860*1850mm
    Net weight215kg


    Standard accessories:
    Fire extinguisher
    Electric cabinet
    Tool and tool box
    150*350mm magnet chuck
    3 axis DRO
