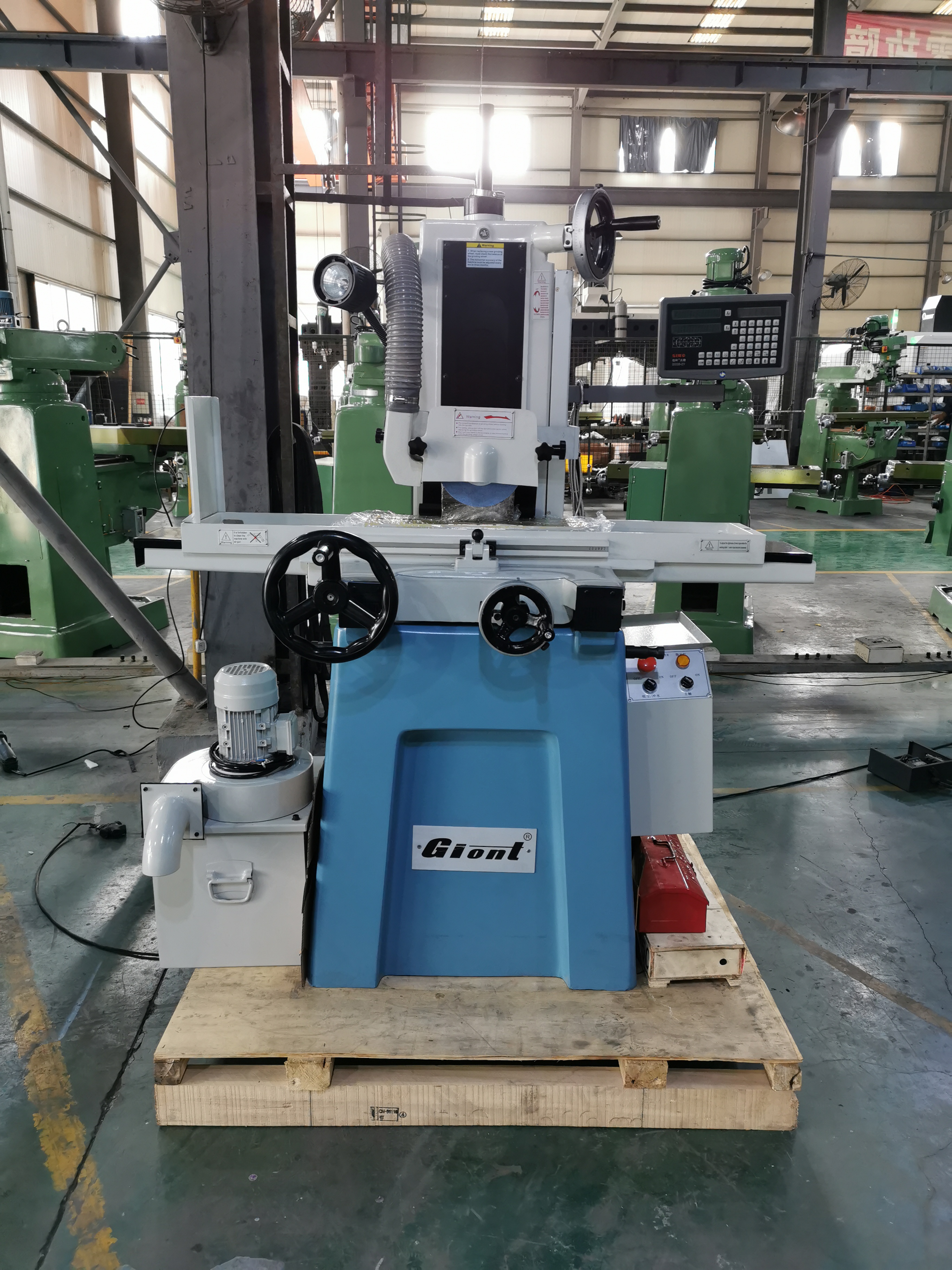

    G-618m Y Axis Surface Grinding Machine with 460×150mm Working Table

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : G-618M
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : T/T, L/C
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEOGIATION
    • Product Details
    • Company Profile

    G-618m Y Axis Surface Grinding Machine with 460×150mm Working Table

    Product Characteristics:

    1. The precision is higher than that of domestic grinding machine at the same level, which is highly respected by customers of high precision grinding industry

    2. Imported high precision spindle, hydraulic system to ensure high precision and smooth operation of equipment


    Specification sheet:


    MSI: Longitudinal and cross ward automatically, Z axis with servo motor.


    ModelG-618M
    Table sizemm460*150
    X axis travelmm470
    Y axis travelmm160
    Table side waySlide way
    Max distance from spindle center to working tablemm410
    Auto crossward feedmm-
    Crossward feed of hand wheel1 Rev5
    1 Div0.02
    Auto vertical feedmm-
    Vertical rapid moving feedmm-
    Vertical feed of hand wheel1 Rev1
    1 Div0.005
    Rotation speed50HZrpm2800
    60HZrpm3360
    Grinding wheel sizeΦ180×(3-13)×31.75
    Spindle motor2*2/1.5*2
    Hydraulic motor-
    Crossward driven motor-
    Vertical driven motor-
    Coolant pump motor0.12*2
    Dust-clean motor0.75*2
    Dimension (L*W*H)mm1490*1100*2030
    Weightkg850


    Standard accessories:

    1. Permanent magnet chuck
    2. Dust clean / Coolant system
    3. Grinding wheel
    4. Oil pump
    5. Working light
    6. Wheel balance arbor
    7. Wheel flange and extractor
    8. Wheel dressing diamond tip and holder
    9. Tool and toolbox
    10. Operation manual
    Optional accessories:

    1. Two axis DRO
    2. Coolant system + Dust suction
    3. Balancing bracket
    4. Inverter
    5. Demagnizer
    6. Vice
    7. Punch dressor
    8. Universal dressor

    Overview:
