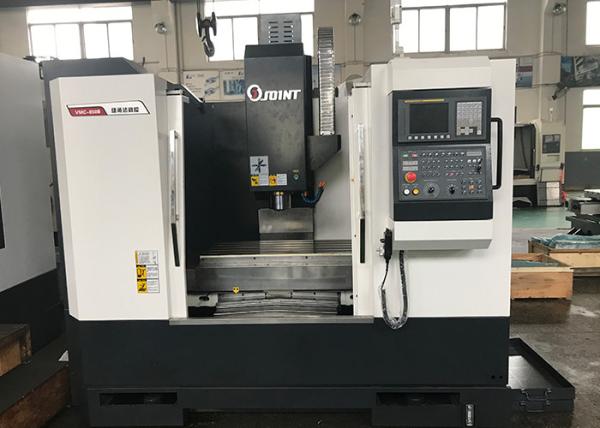

    Industrial Vertical Milling Center Machine 800mm X Axis Travel And 600kg Max Load

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : VMC850B
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : TT/LC/DA/DP
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    Industrial Vertical Milling Center Machine 800mm X Axis Travel And 600kg Max Load

    VMC850B Vertical CNC Machine Center 800mm X Axis Travel 600kg Load​


    Quick details:


    1. Vertical machining center VMC850B is with Taiwan high speed spindle 8000rpm.


    2. VMC850B is with box guideways on X,Y,Z axes with high stability, rapid speed is 15/15/12 m/min.


    3. The whole machine is with closed protection and electric cabinet, which assures the safety of worker and lustration of environment.


    4. The machine is with taiwan Hiwin/PMI ballscrew, FAG/NSK bearing.


    Product advantage:


    1. Good rigidity: guide of a widened span for the machine body with high rigidity and great ability of shock absorption.


    2. High efficiency: equipped with a tool magazine featuring swift automatic tool changing and rigidity tapping.


    3. Larde travel: larger travels in all three directions than those of the same specifications in the market.


    4. Optimal configuration: imported major outsourcing parts and components including the CNC system, spindle unit, tool magazine, ball screw, bearings, etc.


    5. New structure: spindle with floating tool stroke and screw pre-tensioned to ensure long service life and steady accuracy.


    Specification Of Vertical machine center VMC850B


    ModelUnitVMC-850B
    TravelX axismm800
    Y axismm500
    Z axismm550
    Distance between spindle and tablemm105-655
    Working tableTable sizemm1050*500
    Max. Load of tableKg600
    T slotPcs-mm-mm5-18-90
    Positioning accuracyX/Y/Z axismm0.008/0.008/0.008
    Repeated positioning accuracyX/Y/Z axismm0.007/0.007/0.007
    SpindleSpindle rotation speedRpm8000
    Spindle taperBT40
    DiametermmΦ150
    Rivet modelBT40 45°
    Rapid feedX/Y/Z axism/min15/15/12
    Cutting feedX/Y/Z axism/min8
    Tool magazineUmbrella typeSizeTools20
    Too changing time (T-T)Sec6
    Max. diameter/ length/weight of toolmm100/200/8
    Max tool diameter (no tool adjacent)mm180
    Arm typeSizeTools24
    Tool changing time (T-T)sec3.5s
    Max. diameter/ /length/weight of toolmm80/200/8
    Max tool diameter (no tool adjacent)mm150
    Total capacity of electricKVA15
    Weight of machine

    Kg


    5000
    Dimensionmm2500*2270*2550

    Standard Accessories:


    Fanuc Controller system


    8000Rpm spindle


    Full enclosed cover


    Spindle encoder position system


    Three axis inner encoder feedback system


    Auto lubrication system


    Pneumatic system


    RS 232 Interface


    Operation unit


    RS232 Interface +working light


    Tool and tool box


    Optional accessories:


    Siemens controller or other controller system


    Spindle oil coolant


    Heat exchanger


    Umbrella type tool magazine


    Arm type tool magazine


    Screw type auto conveyor


    Chain type tool magazine


    4 Axis rotary table


    Ring spray spindle
