Brand Name : | JOINT |
Model Number : | V65 |
Certification : | ISO 9001:2015 |
Price : | NEGOTIATION |
Payment Terms : | TT/LC/DA/DP |
Supply Ability : | 1000 SETS/YEAR |
Delivery Time : | NEGOTIATION |
BT40 7.5KW Vertical Machining Center Processing Parts V65 with 24 tools ATC
Product features:
1. The feed axis machining center for X, Y, Z coordinate control, spindle servo motor powered, magazine capacity of 24 tools.

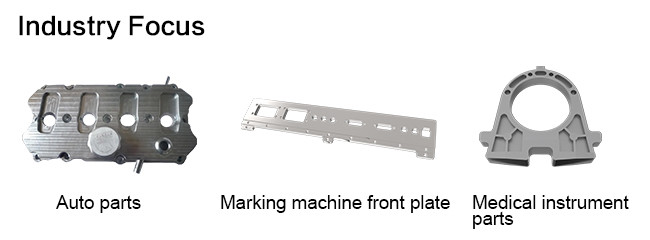

2. V65 Can achieve a variety of disc-type, plate type, shell, cam, mold and other complex parts in a single setup, complete the drilling, milling and processing a variety of processes, boring, expanding, reaming, tapping, etc.
3. V65 is Suitable for varieties of small batch production of complex, high-precision machining of parts to better show its superiority.
Product advantage:
1. Finite Element Analysis
The structural parts are analyzed and designed by the advanced
Finite Element Analysis. It provides a detailed analysis for
structural stress / strain conditions, and ensures excellent
machine rigidity and lifetime stability.
2. Pretensioned ballscrews on X, Y, Z axes ensure accuracy and
eliminate positioning error.
3. The endface of spindle stock, screw support faces and block
contact faces are fully hand scraped to increase machining accuracy
and feeding smoothness.
4. The machine structure is constructed from high quality Meehanite
cast iron and stress released to ensure great rigidity and
precision.
.
5. Over sized column and bed, assuring extra high rigidity of
machine frame.
Specification Of Vertical machine center V65
Model | Unit | V65 | ||
Travel | X axis | mm | 600 | |
Y axis | mm | 400 | ||
Z axis | mm | 420 | ||
Distance between spindle and table | mm | 170-590 | ||
Working table | Table size | mm | 700*420 | |
Max. Load of table | Kg | 300 | ||
T slot | Pcs-mm-mm | 3-18-125 | ||
Positioning accuracy | X/Y/Z axis | mm | 0.006/0.006/0.006 | |
Repeated positioning accuracy | X/Y/Z axis | mm | 0.005/0.005/0.005 | |
Spindle | Spindle rotation speed | Rpm | 10000 | |
Spindle taper | BT40 | |||
Diameter | mm | Φ140 | ||
Rivet model | BT40 45° | |||
Rapid feed | X/Y/Z axis | m/min | 48/48/48 | |
Cutting feed | X/Y/Z axis | m/min | 15 | |
Tool magazine | Arm type | Size | Tools | 24 |
Tool changing time (T-T) | sec | 2.5s | ||
Max. diameter/ /length/weight of tool | mm | 80/250/8 | ||
Max tool diameter (no tool adjacent) | mm | 150 | ||
Total capacity of electric | KVA | 15 | ||
Weight of machine | Kg | 3500 | ||
Dimension | mm | 2350*2100*2600 |
Standard Accessories
Fanuc Controller system
10000Rpm spindle
24tools arm type tool magazine
Spindle oil cooler
Heat exchanger
Full enclosed cover
Spindle encoder position system
Three axis inner encoder feedback system
Auto lubrication system
Pneumatic system
RS 232 Interface
Operation unit
RS232 Interface +working light
Tool and tool box
![]() |
