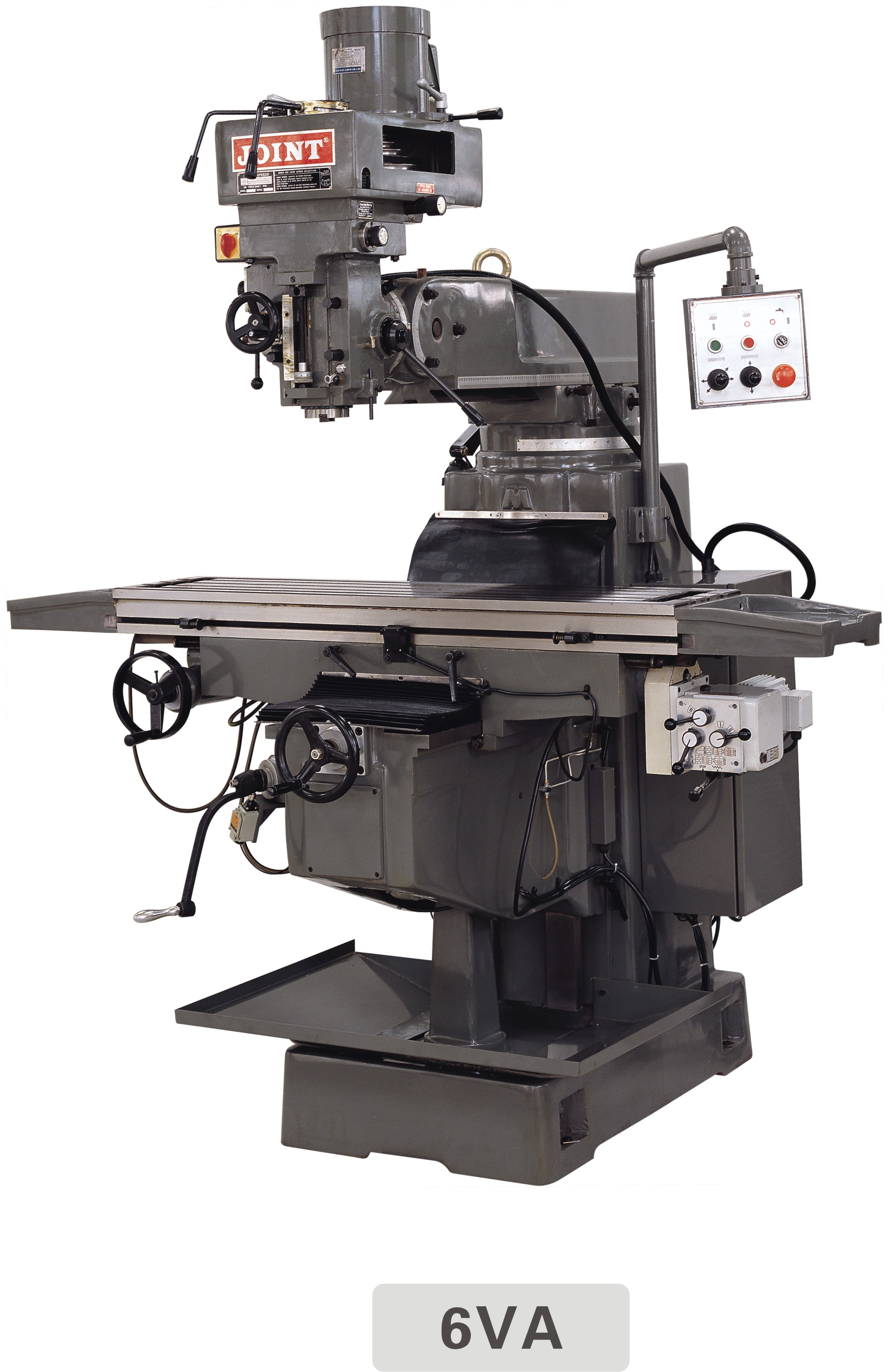

Universal Milling Vertical Turret Milling Machine 1600*2000*2450mm Dimension

    Buy cheap Universal Milling Vertical Turret Milling Machine 1600*2000*2450mm Dimension from wholesalers

    Buy cheap Universal Milling Vertical Turret Milling Machine 1600*2000*2450mm Dimension from wholesalers
    • Buy cheap Universal Milling Vertical Turret Milling Machine 1600*2000*2450mm Dimension from wholesalers
    • Buy cheap Universal Milling Vertical Turret Milling Machine 1600*2000*2450mm Dimension from wholesalers
    • Buy cheap Universal Milling Vertical Turret Milling Machine 1600*2000*2450mm Dimension from wholesalers
    • Buy cheap Universal Milling Vertical Turret Milling Machine 1600*2000*2450mm Dimension from wholesalers

    Universal Milling Vertical Turret Milling Machine 1600*2000*2450mm Dimension

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : 6VA
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : TT/LC/DA/DP
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    Universal Milling Vertical Turret Milling Machine 1600*2000*2450mm Dimension

    Universal Milling Vertical Turret Milling Machine 1600*2000*2450mm Dimension


    Universal Milling Vertical Turret Milling Machine 1600*2000*2450mm Dimension

    1. The step speed milling machine head original from Taiwan.


    2. 1270*254*90 working table.


    3. X/Z axis with dovetail way,Y axis with square way.


    4. R8/3HP spindle taper and motor.


    5. NSK P4 precise bearing, spindle tolerance:0.002mm

    3E economic small milling machine center with operation manual

    Universal Milling Vertical Turret Milling Machine 1600*2000*2450mm Dimension

    Model6VA
    Table size1370*330*99mm
    X axis travel850mm
    Y axis travel390mm
    Z axis travel450mm
    Travel of spindle quill150mm
    Max distance from the spindle nose to table570mm
    Spindle rotation speed70-3600/(10 grades)/60HZ
    Spindle TaperNT40
    Spindle Rated power5HP(7.5HP Optional)
    Tilt Angel Forward and backward±45°
    Tilt angel left and right±90°
    Dimension1600*2000*2450mm
    Net weight2200kgs

    Universal Milling Vertical Turret Milling Machine 1600*2000*2450mm Dimension

    Standard AccessoriesOptional Accessories
    1Step speed milling head1NT40 Milling chuck
    2Way cover2M12 Clamping kit
    3Working light3Two axis DRO /Three axis DRO
    4Tool and toolbox4Variable speed milling head
    5Manual oil pump5Inverter speed milling head
    6X axis mechanical feed6NT40 Power bar
    7elevator motro76 inch vise
    8Coolant system
    9Y axis mechanical feed

    Universal Milling Vertical Turret Milling Machine 1600*2000*2450mm DimensionUniversal Milling Vertical Turret Milling Machine 1600*2000*2450mm Dimension

    Q1. How can I get a quotation?
    A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.


    Q2. Can you provide customized machine or SPM (Special purpose machine)?

    A. Yes, we provide smart solutions for our customer, in order to increase efficiency.


    Q3. Can you provide training for operation CNC machines?

    A. Yes, free training in our factory is available.


    Q4. How about your price?

    A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
