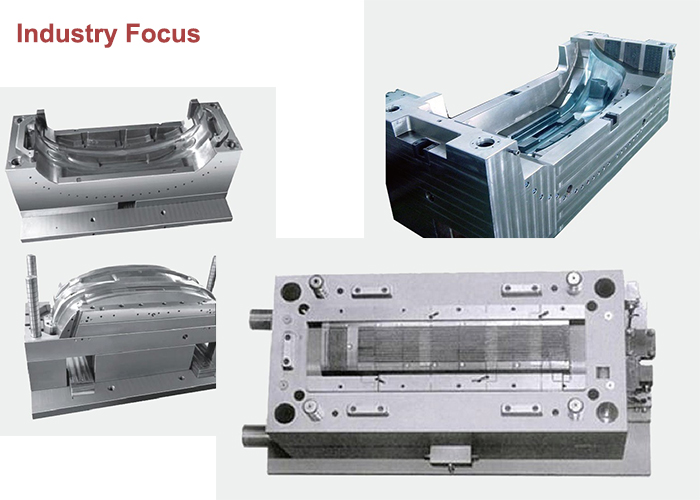

X Axis Travel 1500mm BT40 Spindle 12000rpm High Speed Double Column Machine Center For Making An Mould BTMC1215

Product Feature

A gantry frame structure is adopted with cast iron bodies,

Gantry fram consists of bed ,movable table ,left and right columns ,Top beam ,Cross rail, Horizontal saddle and milling head,

There are three feeding axis ,X aixs for travel of working table, Y axis for horizontal travel of saddle and Z axis for vertical travel of ram,

Simultaneous control of each two or three axis can be achieved .

Wide range of application

1. Basing on its super rigid and stable structure ,big machining capacities,

efficient cutting yield ,heavy table load capacity ,it has a wide application .

2. Engineering and general machining

3. Motor ,pump ,valve and bearing

4. Turbine, wind mill ,power generator etc

Specification of cnc Gantry type machine center

Standard Configuration

1. FANUC System

2. Heat exchaner in electric control cabinet
3. Water tank cooling device

4. Manual pulse generator
5. Automatic lubrication device

6. Workong lamp
7. Outer protective cover

8. Three-color warning lamp
9. Spindle blowing device

10. RS-232 standard output interface
11. Handle air gun

12. LCD
13. Water gun

14. Tool and tool box
15. Electric control cabinet

16. Operation manual
17. Transformer

Optional Configuration

1. Mitsubishi system
2. ATC (Manipulator)
3. Spindle oil cooling device
4. Water through spindle center device
5. Disk type oil-water separator
6. CNC rotation worktable (the 4th axis)
7. Air conditioner in electric control cabinet
8. fully-enclosed optical scale detecting system
9. Automatic tool length measuting system
10. Manual / Semi*autoatic right-angle head
12. ZF gear box

   Shenzhen Joint Technology CO.,LTD., was established in 1995.Our headquarter is located in PingHu

town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development,

production, sale, and service of mold processing machine tools and specialized machine tool equipments for

machine work of excellent quality for more than a decade.


   Currently ,there are eight series of products—high speed turret milling machine, precision surface grinding

machine, EDM machine tool, CNC milling machine, NC milling machine ,Gantry type machine center ,CNC

engraving machine ,and CNC lathe machine


   Our own brand “JOINT “ Has been the top quality machine’s signal in domestic sales, JOINT also has been

recognized as “ GUANGDONG Famous Brand “ in 2008, and milling machine was recognized as “ TOP 10

Famous Brand of Milling machine “ in China, Our product got CE certificate in 2005. Our product had been

exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation

there, Welcome your visit !

Core Advantage:

1.Specification of detailed process and operation mechanism, as well as high standards of production, testing

of hardware and software -- guarantee stable quality of product supply and service support

2.More than 20 years of in-depth research and technical precipitation, products and technology to promote

rapid innovation and progress

3.ERP,CRM and other comprehensive information management system, to form the enterprise efficient

operation and continuous improvement system.

4.Integrity, collaboration, innovation, win-win spirit, established a strong, stable supply chain, and long-term

win-win development of the broad customer base.

Our Honor and Qualifications

1. National High-tech enterprise

2. Shenzhen famous brand "JOINT"

3. Member of China Quality Association

4. Member of China Machine Tools Association

5. Vice-Chairmen of Shenzhen machinery Association

6. Awarded China metal cutting industry top 50 for 5years in a row

7. Awarded Guangdong province Manufacturing industry top 500 in 2014

8. CE certification on Milling Machine ,Grinding machine and machine center

9. Machine Center have passed the inspection and authentication of the "National Machine Tool Quality

   sepervision and inspection Center

10. More than 50 patents On Invention ,Utility model patent and software copyright etc .
