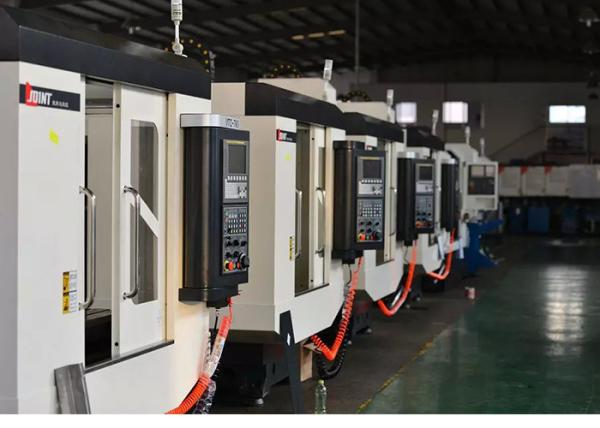

High speed high efficiency cnc drilling and taping machine center VTC500


Product features:

1. The main parts of the fuselage are cast with high quality cast iron.

2. the internal muscles and bones are strengthened, all of them are treated by tempering.

3. and the finite element analysis is carried out by special design software.

4. It has the characteristics of high strength, good stability, and not easy to deform

5. Ensure the rigidity of the whole machine and the accuracy stability of long-term use.




Spindle Feature:

1. The spindle head structure, internal strengthening, p4 super precision bevel ball bearing.

2. long span support design can make the spindle bear strong radial and axial thrust and eliminate the vibration caused by heavy load cutting.

3. Configuration of Taiwan Ruiying spindle, the highest speed of up to 20000 revolutions.

4. a gap-free precision coupling transmission, high transmission accuracy.

5. The low inertial spindle is sensitive to the bt30 spindle during high speed tooth tapping,

6. and the main shaft motor adopts the power supply to pick up, and the speed of the main shaft motor response is fast.

7. The design of the main shaft nose with the main shaft air curtain can prevent the entry of debris and ensure the spindle precision and life.



Standard Accessories:

1. Fanuc 0i-MF(5) control system withαmotor

2. Coolant system

3. Pneumatic system

4.

5. BT30/3.7KW/12000RMP Spindle

6. Enclosed cover



Specification

Optional accessories:

1. Oil water seperator

2. Spindle oil coolant

3. rotary table

4. air gun

   Shenzhen Joint Technology CO.,LTD., was established in 1995.Our headquarter is located in PingHu

town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development,

production, sale, and service of mold processing machine tools and specialized machine tool equipments for

machine work of excellent quality for more than a decade.


   Currently ,there are eight series of products—high speed turret milling machine, precision surface grinding

machine, EDM machine tool, CNC milling machine, NC milling machine ,Gantry type machine center ,CNC

engraving machine ,and CNC lathe machine


   Our own brand “JOINT “ Has been the top quality machine’s signal in domestic sales, JOINT also has been

recognized as “ GUANGDONG Famous Brand “ in 2008, and milling machine was recognized as “ TOP 10

Famous Brand of Milling machine “ in China, Our product got CE certificate in 2005. Our product had been

exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation

there, Welcome your visit !

Core Advantage:

1.Specification of detailed process and operation mechanism, as well as high standards of production, testing

of hardware and software -- guarantee stable quality of product supply and service support

2.More than 20 years of in-depth research and technical precipitation, products and technology to promote

rapid innovation and progress

3.ERP,CRM and other comprehensive information management system, to form the enterprise efficient

operation and continuous improvement system.

4.Integrity, collaboration, innovation, win-win spirit, established a strong, stable supply chain, and long-term

win-win development of the broad customer base.

Our Honor and Qualifications

1. National High-tech enterprise

2. Shenzhen famous brand "JOINT"

3. Member of China Quality Association

4. Member of China Machine Tools Association

5. Vice-Chairmen of Shenzhen machinery Association

6. Awarded China metal cutting industry top 50 for 5years in a row

7. Awarded Guangdong province Manufacturing industry top 500 in 2014

8. CE certification on Milling Machine ,Grinding machine and machine center

9. Machine Center have passed the inspection and authentication of the "National Machine Tool Quality

   sepervision and inspection Center

10. More than 50 patents On Invention ,Utility model patent and software copyright etc .
