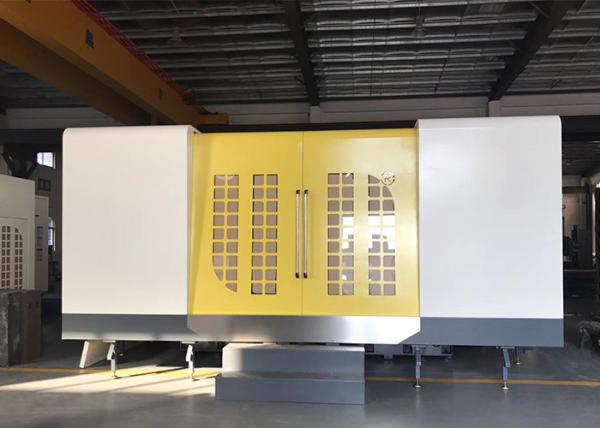

    12000kgs Capacity CNC Deep Hole Drilling Machine , 2.5 - 42mm Gun Drill Machine

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : TL2200
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : TT/LC/DA/DP
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    12000kgs Capacity CNC Deep Hole Drilling Machine , 2.5 - 42mm Gun Drill Machine

    Max load weight :12000mm Cnc Deep Hole Drilling Machine Making An Deep Hole 2200mm​

    Product Feature


    TL3200 CNC automatic machine for deep-hole drilling.The machine tool integrates modern industrial advanced technology as below:


    1.Taiwan SYNTEC CNC system: stable performance, convenient operation programming, perfect and punctual after-sales service.


    2. With high precision ball screw bar and rolling linear guide, the operating components make positioning accurately.


    3. Resin sand cast machine body base,which is twice quench treated.


    Specification

    ModelTL2200
    Number of drilling spindleUniaxial
    Inner diameter of drilling2.5-45mm
    Max depth of drilling2200mm
    Size of working table2200*1350mm
    X axis travel2200mm
    Y axis travel1450mm
    Z axis travel2200mm
    Drilling cutting feed rate10-250mm
    Max rotary speed of spindle7000rpm
    Spindle motor(servo)11-15kw
    Moving motor from right to left on work tableservo 5.0kw
    Moving motor from up to down on spindleservo 3.0 kw
    Moving the motor from front to back on spindleservo 2.0kw
    Pressure of cutting pressure pump80 kgf/cm²
    Oil mass of oil pressure pump6-60 L/min
    Capacity of cutting oil tank800 L
    load capacity of working table12000kgs
    machine net weight16800kgs
    Machine power35kw


    Processing Range


    Deep hole drilling machines are mainly used in the industries as following:


    1. Mould industry: water line hole, thimble hole, ejection pin hole, electric hole, and inclined hole, etc.


    2. Hydraulic machinery industry: valve, distributor and pump,etc..


    3. Automotive industry: cylinder, fuel supply system and other parts


    4. Aerospace industry: the propeller, landing gear and other parts.


    Standard accessories

    Taiwan spindle

    Fanuc or Mistubishi controller

    Spindle oil cooler + NSK Bearing

    gundrill + precision guide sleeve and rubber guide

    grinder machine

    HIWIN linear way
