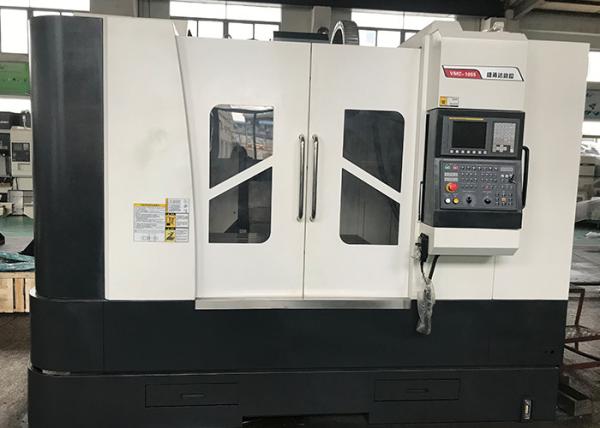

Belt Connection BT40 Spindle Vertical Machining Tools VMC850B 600KG Max Load

Quick details:

1. Cnc vertical machining center VMC850B is with Taiwan high speed spindle 8000rpm.
2. VMC850B is with box guideways on X,Y,Z axes with high stability.
3. The whole machine is with closed protection and electric cabinet, safe and beautiful.
4. The machine is with taiwan Hiwin/PMI ballscrew, FAG/NSK bearing.

Product application:

1.Motor
Three axis servo motor, with smooth rotating characteristics, excellent speed and high reliability.
Collocation's built-in encoder can achieve high speed and high precision positioning control.

2.Tool Magazine(optional)
The umbrella type tool magazine mounted on the side of the column,using ATC to change tools. It can operate without noise, so that the process of the tool change is quick and accurate.

3.Spindle
The spindle of the Heavy duty large cnc vertical machining center is from Taiwan professional manufacturers, with high precision, high rigidity. The bearing adopts the special bearing of the P4 bearing, the whole set of the main shaft is assembled in the constant temperature condition, and the board is used to balance the correction and run the test. Improve the service life and reliability of the whole spindle. The spindle system adopts the way of synchronous belt drive.

4.Leadscrew
Three axis servo motor by single linked coupling and the high precision ball screw directly connected, reduce intermediate links, to realize gapless transmission, flexible feeding, accurate positioning and high transmission accuracy.

Specification Of Vertical machine center VMC850B

Standard Accessories:

Fanuc Controller system

8000Rpm spindle

Full enclosed cover

Spindle encoder position system

Three axis inner encoder feedback system

Auto lubrication system

Pneumatic system

RS 232 Interface

Operation unit

RS232 Interface +working light

Tool and tool box

Optional accessories:

Siemens controller or other controller system

Spindle oil coolant

Heat exchanger

Umbrella type tool magazine

Arm type tool magazine

Screw type auto conveyor

Chain type tool magazine

4 Axis rotary table

Ring spray spindle

   Shenzhen Joint Technology CO.,LTD., was established in 1995.Our headquarter is located in PingHu

town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development,

production, sale, and service of mold processing machine tools and specialized machine tool equipments for

machine work of excellent quality for more than a decade.


   Currently ,there are eight series of products—high speed turret milling machine, precision surface grinding

machine, EDM machine tool, CNC milling machine, NC milling machine ,Gantry type machine center ,CNC

engraving machine ,and CNC lathe machine


   Our own brand “JOINT “ Has been the top quality machine’s signal in domestic sales, JOINT also has been

recognized as “ GUANGDONG Famous Brand “ in 2008, and milling machine was recognized as “ TOP 10

Famous Brand of Milling machine “ in China, Our product got CE certificate in 2005. Our product had been

exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation

there, Welcome your visit !

Core Advantage:

1.Specification of detailed process and operation mechanism, as well as high standards of production, testing

of hardware and software -- guarantee stable quality of product supply and service support

2.More than 20 years of in-depth research and technical precipitation, products and technology to promote

rapid innovation and progress

3.ERP,CRM and other comprehensive information management system, to form the enterprise efficient

operation and continuous improvement system.

4.Integrity, collaboration, innovation, win-win spirit, established a strong, stable supply chain, and long-term

win-win development of the broad customer base.

Our Honor and Qualifications

1. National High-tech enterprise

2. Shenzhen famous brand "JOINT"

3. Member of China Quality Association

4. Member of China Machine Tools Association

5. Vice-Chairmen of Shenzhen machinery Association

6. Awarded China metal cutting industry top 50 for 5years in a row

7. Awarded Guangdong province Manufacturing industry top 500 in 2014

8. CE certification on Milling Machine ,Grinding machine and machine center

9. Machine Center have passed the inspection and authentication of the "National Machine Tool Quality

   sepervision and inspection Center

10. More than 50 patents On Invention ,Utility model patent and software copyright etc .
