    Industrial Belt Drive CNC Vertical Milling Center With Excellent Thermal Stability

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : VMC850L3
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : TT/LC/DA/DP
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

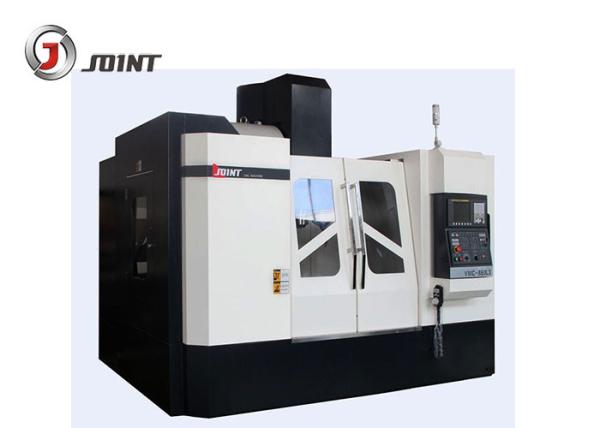

    Industrial Belt Drive CNC Vertical Milling Center With Excellent Thermal Stability

    8000rpm Belt Drive Vertical Machining Center Processing Parts BT40 VMC850L3


    Product features:


    1. High rigidity high precision slide and big diameter of ball screw are used, which can make the machine work stably at high speed when under the situation of high speed and high strength machining.


    2. High rigidity base and wide column base are made of repeatly quenched and hardened meehanite cast irons which improve the rigidity of column on X axis and Y axis. Specially designed column can also absorb the shocks.

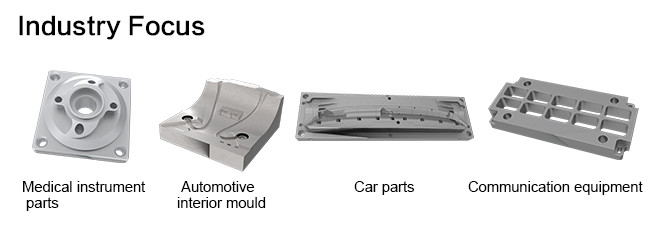

    3. Mainly used for complex machining on workpieces.


    Why choose us:


    1. Excellent damping properties


    2. High rigidity


    3. Excellent thermal stability


    4. High-speed advance and rapid feed for a significantly increased machine efficiency


    5. Constant accuracy and stability ensured by premium preloaded ball screws with integrated cooling


    6. Milling spindle with closed cooling circuit for maximum precision and durability at high-speed machining operations


    7. Superior mechanical properties of the total component package ensure longer tool life


    8. Easy accessibility of work table for easy setup and tooling


    Specification Of Vertical machine center VMC850L3


    ModelUnitVMC-850L3
    TravelX axismm800
    Y axismm500
    Z axismm500
    Distance between spindle and tablemm160-660
    Working tableTable sizemm1000*550
    Max. Load of tableKg600
    T slotPcs-mm-mm5-18-100
    Positioning accuracyX/Y/Z axismm0.008/0.008/0.008
    Repeated positioning accuracyX/Y/Z axismm0.005/0.005/0.005
    SpindleSpindle rotation speedRpm8000
    Spindle taperBT40
    DiametermmΦ150
    Rivet modelBT40 45°
    Rapid feedX/Y/Z axism/min36/36/30
    Cutting feedX/Y/Z axism/min10
    Tool magazineUmbrella typeSizeTools16
    Too changing time (T-T)Sec6
    Max. diameter/ length/weight of toolmm100/200/8
    Max tool diameter (no tool adjacent)mm180
    Arm typeSizeTools24
    Tool changing time (T-T)sec3.5s
    Max. diameter/ /length/weight of toolmm80/200/8
    Max tool diameter (no tool adjacent)mm150
    Total capacity of electricKVA15
    Weight of machine

    Kg


    5800
    Dimensionmm2750*2535*2800

    Standard Accessories:


    Fanuc/Mitsubishi Controller system


    Full enclosed cover


    Spindle encoder position system


    Three axis inner encoder feedback system


    Auto lubrication system


    Pneumatic system


    RS 232 Interface


    Operation unit


    Working light


    Tool and tool box


    Optional accessories:


    Siemens controller or other controller system


    Spindle oil coolant


    Umbrella type tool magazine


    Arm type tool magazine


    Screw type auto conveyor


    Chain type tool magazine


    4 Axis rotary table


    Ring spray spindle
