    7.5kw Vertical CNC Machine Center Mould Making V85P Spindle Taper BT40 - 140

    Ask Lasest Price
    Brand Name : JOINT
    Model Number : V85P
    Certification : ISO 9001:2015
    Price : NEGOTIATION
    Payment Terms : TT/LC/DA/DP
    Supply Ability : 1000 SETS/YEAR
    Delivery Time : NEGOTIATION
    • Product Details
    • Company Profile

    7.5kw Vertical CNC Machine Center Mould Making V85P Spindle Taper BT40 - 140

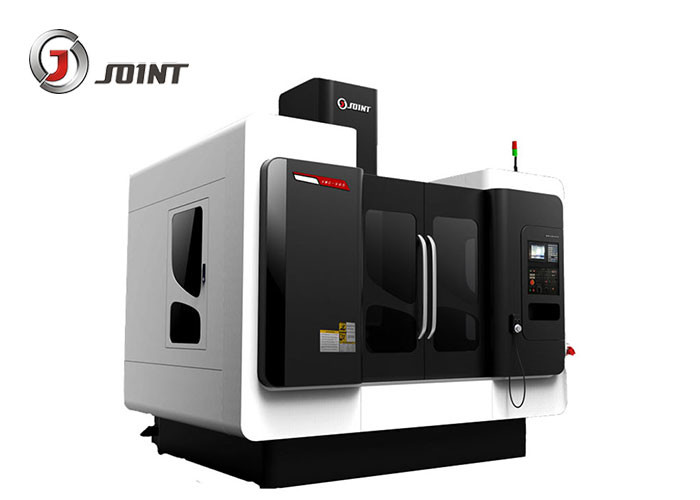

    High quality Fanuc vertical machine center V85P


    7.5kw Vertical CNC Machine Center Mould Making V85P Spindle Taper BT40 - 140

    7.5kw Vertical CNC Machine Center Mould Making V85P Spindle Taper BT40 - 140

    7.5kw Vertical CNC Machine Center Mould Making V85P Spindle Taper BT40 - 140


    7.5kw Vertical CNC Machine Center Mould Making V85P Spindle Taper BT40 - 140

    7.5kw Vertical CNC Machine Center Mould Making V85P Spindle Taper BT40 - 140

    7.5kw Vertical CNC Machine Center Mould Making V85P Spindle Taper BT40 - 140


    1. Adopt FFA software to analyze ,vibration detector to replicate and optimize the structure.

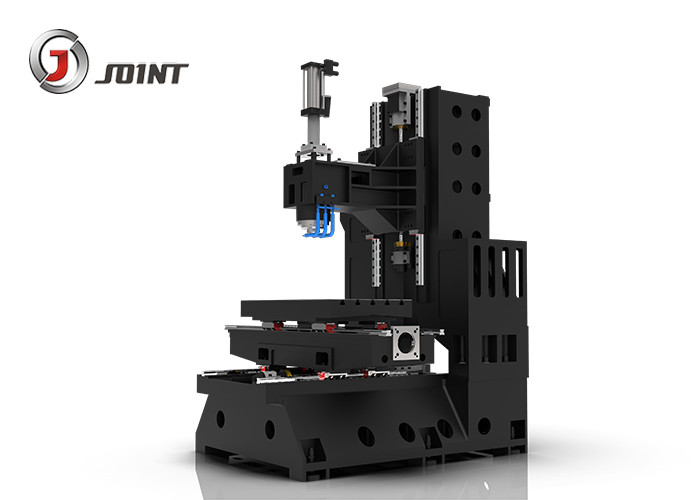

    2.Super wide base ,X axis width up to 1.25m ,it is 0.39m wider than V85 ,widen base will


    increase the stability and dynamic responsiveness of the machine.


    3. 3 axis high rigidity roller linear guide way ,X/Y axis 35mm width ,Z axis 45mm width,

    increase the cutting rigidity.


    4.Without heavy hammer design ,increase Z axis power ,increase the responsiveness

    and procision of Z axis.


    5.Spindle box reinforced design ,decrease spindle high speed running deformation ,

    increase the heavy cutting performance.


    ModelV85P
    Table size1000*550mm
    X axis Travel800mm
    Y aixs Travel500mm
    Z axis Travel500mm
    Distance between spindle and table160-660mm
    Distance between spindle and column524mm
    Spindle rotation speed10000 /Direct connection 12000/15000rpm
    Spindle motor7.5kw
    Work table T slot5-18*100
    X/Y/Z axis ball screw size3616
    ATC type24too arm type
    Time of changing tool2.5m/min
    Rapid feed48*48*48m/min
    X/Y/Z axis motor12/12/20NM
    Max cutting feed10m/min
    Min set moving unit0.001mm
    Dimension2650*2900*2850mm
    Net weight5000kgs
    Max load of table600kgs

    7.5kw Vertical CNC Machine Center Mould Making V85P Spindle Taper BT40 - 140

    Standard Accessories


    Fanuc Controller system


    10000/12000/15000Rpm spindle


    24tools arm type tool magazine


    Spindle oil cooler


    Heat exchanger


    Full enclosed cover


    Spindle encoder position system


    Three axis inner encoder feedback system


    Auto lubrication system


    Pneumatic system


    RS 232 Interface


    Operation unit


    RS232 Interface +working light


    Tool and tool box
